STM32L451RCI6TR

Active

STMicroelectronics

ULTRA-LOW-POWER WITH FPU ARM CORTEX-M4 MCU 80 MHZ WITH 256 KBYTES OF FLASH MEMORY, DFSDM

Deep-Dive with AI

Search across all available documentation for this part.

STM32L451RCI6TR

Active

STMicroelectronics

ULTRA-LOW-POWER WITH FPU ARM CORTEX-M4 MCU 80 MHZ WITH 256 KBYTES OF FLASH MEMORY, DFSDM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	STM32L451RCI6TR

Connectivity	SAI, LINbus, QSPI, CANbus, UART/USART, SPI, SMBus, MMC/SD, I2C, IrDA
Core Processor	ARM® Cortex®-M4
Core Size	32-Bit Single-Core
Data Converters	D/A 1x12b, A/D 16x12b SAR
Mounting Type	Surface Mount
Number of I/O	52
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	External, Internal

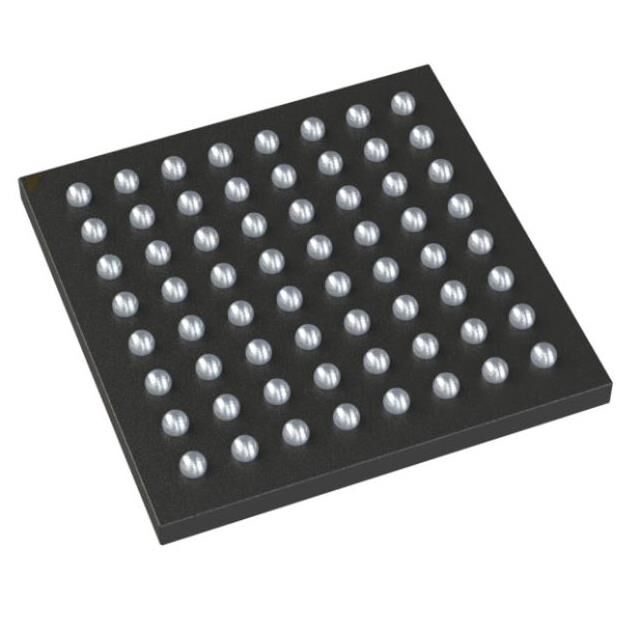

Package / Case	64-UFBGA
Peripherals	Brown-out Detect/Reset, WDT, PWM, DMA
Program Memory Size	256 KB
Program Memory Type	FLASH
RAM Size	160 K
Speed	80 MHz
Supplier Device Package	64-UFBGA (5x5)
Voltage - Supply (Vcc/Vdd) [Max]	3.6 V
Voltage - Supply (Vcc/Vdd) [Min]	1.71 V

STM32L451VE Series

Ultra-low-power with FPU Arm Cortex-M4 MCU 80 MHz with 256 kbytes of Flash memory, DFSDM

Part	Speed	Core Processor	Package / Case	Connectivity	Mounting Type	RAM Size	Core Size	Number of I/O	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Program Memory Size	Peripherals	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Data Converters	Oscillator Type	Program Memory Type	Supplier Device Package
STMicroelectronics STM32L451RET6TR	80 MHz	ARM® Cortex®-M4	64-LQFP	CANbus I2C IrDA LINbus MMC/SD QSPI SAI SPI UART/USART	Surface Mount	160 K	32-Bit Single-Core	52	85 °C	-40 °C	64-LQFP (10x10)	512 KB	Brown-out Detect/Reset DMA PWM WDT	3.6 V	1.71 V	A/D 16x12b D/A 1x12b	Internal	FLASH
STMicroelectronics STM32L451RCT6	80 MHz	ARM® Cortex®-M4	64-LQFP	CANbus I2C IrDA LINbus MMC/SD QSPI SAI SPI UART/USART	Surface Mount	160 K	32-Bit Single-Core	52	85 °C	-40 °C	64-LQFP (10x10)	256 KB	Brown-out Detect/Reset DMA PWM WDT	3.6 V	1.71 V	A/D 16x12b D/A 1x12b	Internal	FLASH
STMicroelectronics STM32L451RCT3	80 MHz	ARM® Cortex®-M4	64-LQFP	CANbus I2C IrDA LINbus MMC/SD QSPI SAI SPI UART/USART	Surface Mount	160 K	32-Bit Single-Core	52	125 °C	-40 °C	64-LQFP (10x10)	256 KB	Brown-out Detect/Reset DMA PWM WDT	3.6 V	1.71 V	A/D 16x12b D/A 1x12b	Internal	FLASH
STMicroelectronics STM32L451RCT3TR	80 MHz	ARM® Cortex®-M4	64-LQFP	CANbus I2C IrDA LINbus MMC/SD QSPI SAI SMBus SPI UART/USART	Surface Mount	160 K	32-Bit Single-Core	52	125 °C	-40 °C	64-LQFP (10x10)	256 KB	Brown-out Detect/Reset DMA PWM WDT	3.6 V	1.71 V	A/D 16x12b SAR D/A 1x12b	External Internal	FLASH
STMicroelectronics STM32L451RET6	80 MHz	ARM® Cortex®-M4	64-LQFP	CANbus I2C IrDA LINbus MMC/SD QSPI SAI SPI UART/USART	Surface Mount	160 K	32-Bit Single-Core	52	85 °C	-40 °C	64-LQFP (10x10)	512 KB	Brown-out Detect/Reset DMA PWM WDT	3.6 V	1.71 V	A/D 16x12b D/A 1x12b	Internal	FLASH
STMicroelectronics STM32L451REY6TR	80 MHz	ARM® Cortex®-M4	64-UFBGA WLCSP	CANbus I2C IrDA LINbus MMC/SD QSPI SAI SPI UART/USART	Surface Mount	160 K	32-Bit Single-Core	52	85 °C	-40 °C	64-WLCSP	512 KB	Brown-out Detect/Reset DMA PWM WDT	3.6 V	1.71 V	A/D 16x12b D/A 1x12b	Internal	FLASH	3.36 3.66
STMicroelectronics STM32L451REI6	80 MHz	ARM® Cortex®-M4	64-UFBGA	CANbus I2C IrDA LINbus MMC/SD QSPI SAI SPI UART/USART	Surface Mount	160 K	32-Bit Single-Core	52	85 °C	-40 °C	64-UFBGA (5x5)	512 KB	Brown-out Detect/Reset DMA PWM WDT	3.6 V	1.71 V	A/D 16x12b D/A 1x12b	Internal	FLASH
STMicroelectronics STM32L451CCU6TR	80 MHz	ARM® Cortex®-M4	48-UFQFN Exposed Pad	CANbus I2C IrDA LINbus QSPI SAI SPI UART/USART	Surface Mount	160 K	32-Bit Single-Core		85 °C	-40 °C	48-UFQFPN (7x7)	256 KB	Brown-out Detect/Reset DMA PWM WDT	3.6 V	1.71 V	A/D 10x12b D/A 1x12b	Internal	FLASH
STMicroelectronics STM32L451RCI6TR	80 MHz	ARM® Cortex®-M4	64-UFBGA	CANbus I2C IrDA LINbus MMC/SD QSPI SAI SMBus SPI UART/USART	Surface Mount	160 K	32-Bit Single-Core	52	85 °C	-40 °C	64-UFBGA (5x5)	256 KB	Brown-out Detect/Reset DMA PWM WDT	3.6 V	1.71 V	A/D 16x12b SAR D/A 1x12b	External Internal	FLASH
STMicroelectronics STM32L451VEI6	80 MHz	ARM® Cortex®-M4	100-UFBGA	CANbus I2C IrDA LINbus MMC/SD QSPI SAI SPI UART/USART	Surface Mount	160 K	32-Bit Single-Core	83	85 °C	-40 °C	100-UFBGA (7x7)	512 KB	Brown-out Detect/Reset DMA PWM WDT	3.6 V	1.71 V	A/D 16x12b D/A 1x12b	Internal	FLASH

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	5000	$ 3.07

Description

General part information

STM32L451VE Series

The STM32L451xx devices are ultra-low-power microcontrollers based on the high-performance Arm®Cortex®-M4 32-bit RISC core operating at a frequency of up to 80 MHz. The Cortex-M4 core features a Floating point unit (FPU) single precision that supports all Arm®single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security.

The STM32L451xx devices embed high-speed memories (Flash memory up to 512 Kbyte, 160 Kbyte of SRAM), a Quad SPI Flash memories interface (available on all packages) and an extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB buses and a 32-bit multi-AHB bus matrix.

The STM32L451xx devices embed several protection mechanisms for embedded Flash memory and SRAM: readout protection, write protection, proprietary code readout protection and Firewall.
