STM32L451VEI6
ActiveULTRA-LOW-POWER WITH FPU ARM CORTEX-M4 MCU 80 MHZ WITH 512 KBYTES OF FLASH MEMORY, DFSDM
Deep-Dive with AI
Search across all available documentation for this part.
STM32L451VEI6
ActiveULTRA-LOW-POWER WITH FPU ARM CORTEX-M4 MCU 80 MHZ WITH 512 KBYTES OF FLASH MEMORY, DFSDM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | STM32L451VEI6 |
|---|---|
| Connectivity | LINbus, UART/USART, MMC/SD, SPI, SAI, QSPI, I2C, IrDA, CANbus |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Data Converters | D/A 1x12b, A/D 16x12b |
| Mounting Type | Surface Mount |
| Number of I/O | 83 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | Internal |

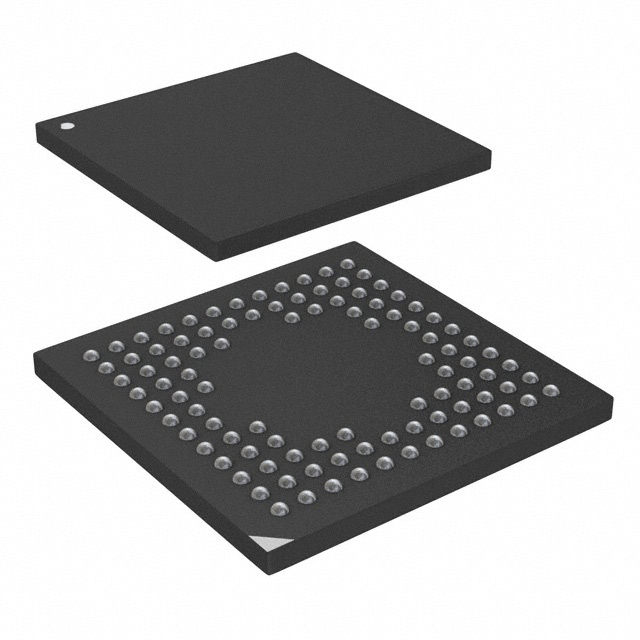

| Package / Case | 100-UFBGA |
| Peripherals | Brown-out Detect/Reset, WDT, PWM, DMA |
| Program Memory Size | 512 KB |
| Program Memory Type | FLASH |
| RAM Size | 160 K |
| Speed | 80 MHz |
| Supplier Device Package | 100-UFBGA (7x7) |
| Voltage - Supply (Vcc/Vdd) [Max] | 3.6 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 1.71 V |
STM32L451VE Series
Ultra-low-power with FPU Arm Cortex-M4 MCU 80 MHz with 256 kbytes of Flash memory, DFSDM
| Part | Speed | Core Processor | Package / Case | Connectivity | Mounting Type | RAM Size | Core Size | Number of I/O | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Program Memory Size | Peripherals | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Data Converters | Oscillator Type | Program Memory Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics | 80 MHz | ARM® Cortex®-M4 | 64-LQFP | CANbus I2C IrDA LINbus MMC/SD QSPI SAI SPI UART/USART | Surface Mount | 160 K | 32-Bit Single-Core | 52 | 85 °C | -40 °C | 64-LQFP (10x10) | 512 KB | Brown-out Detect/Reset DMA PWM WDT | 3.6 V | 1.71 V | A/D 16x12b D/A 1x12b | Internal | FLASH | |
STMicroelectronics | 80 MHz | ARM® Cortex®-M4 | 64-LQFP | CANbus I2C IrDA LINbus MMC/SD QSPI SAI SPI UART/USART | Surface Mount | 160 K | 32-Bit Single-Core | 52 | 85 °C | -40 °C | 64-LQFP (10x10) | 256 KB | Brown-out Detect/Reset DMA PWM WDT | 3.6 V | 1.71 V | A/D 16x12b D/A 1x12b | Internal | FLASH | |
STMicroelectronics | 80 MHz | ARM® Cortex®-M4 | 64-LQFP | CANbus I2C IrDA LINbus MMC/SD QSPI SAI SPI UART/USART | Surface Mount | 160 K | 32-Bit Single-Core | 52 | 125 °C | -40 °C | 64-LQFP (10x10) | 256 KB | Brown-out Detect/Reset DMA PWM WDT | 3.6 V | 1.71 V | A/D 16x12b D/A 1x12b | Internal | FLASH | |
STMicroelectronics | 80 MHz | ARM® Cortex®-M4 | 64-LQFP | CANbus I2C IrDA LINbus MMC/SD QSPI SAI SMBus SPI UART/USART | Surface Mount | 160 K | 32-Bit Single-Core | 52 | 125 °C | -40 °C | 64-LQFP (10x10) | 256 KB | Brown-out Detect/Reset DMA PWM WDT | 3.6 V | 1.71 V | A/D 16x12b SAR D/A 1x12b | External Internal | FLASH | |
STMicroelectronics | 80 MHz | ARM® Cortex®-M4 | 64-LQFP | CANbus I2C IrDA LINbus MMC/SD QSPI SAI SPI UART/USART | Surface Mount | 160 K | 32-Bit Single-Core | 52 | 85 °C | -40 °C | 64-LQFP (10x10) | 512 KB | Brown-out Detect/Reset DMA PWM WDT | 3.6 V | 1.71 V | A/D 16x12b D/A 1x12b | Internal | FLASH | |
STMicroelectronics | 80 MHz | ARM® Cortex®-M4 | 64-UFBGA WLCSP | CANbus I2C IrDA LINbus MMC/SD QSPI SAI SPI UART/USART | Surface Mount | 160 K | 32-Bit Single-Core | 52 | 85 °C | -40 °C | 64-WLCSP | 512 KB | Brown-out Detect/Reset DMA PWM WDT | 3.6 V | 1.71 V | A/D 16x12b D/A 1x12b | Internal | FLASH | 3.36 3.66 |
STMicroelectronics | 80 MHz | ARM® Cortex®-M4 | 64-UFBGA | CANbus I2C IrDA LINbus MMC/SD QSPI SAI SPI UART/USART | Surface Mount | 160 K | 32-Bit Single-Core | 52 | 85 °C | -40 °C | 64-UFBGA (5x5) | 512 KB | Brown-out Detect/Reset DMA PWM WDT | 3.6 V | 1.71 V | A/D 16x12b D/A 1x12b | Internal | FLASH | |
STMicroelectronics | 80 MHz | ARM® Cortex®-M4 | 48-UFQFN Exposed Pad | CANbus I2C IrDA LINbus QSPI SAI SPI UART/USART | Surface Mount | 160 K | 32-Bit Single-Core | 85 °C | -40 °C | 48-UFQFPN (7x7) | 256 KB | Brown-out Detect/Reset DMA PWM WDT | 3.6 V | 1.71 V | A/D 10x12b D/A 1x12b | Internal | FLASH | ||
STMicroelectronics | 80 MHz | ARM® Cortex®-M4 | 64-UFBGA | CANbus I2C IrDA LINbus MMC/SD QSPI SAI SMBus SPI UART/USART | Surface Mount | 160 K | 32-Bit Single-Core | 52 | 85 °C | -40 °C | 64-UFBGA (5x5) | 256 KB | Brown-out Detect/Reset DMA PWM WDT | 3.6 V | 1.71 V | A/D 16x12b SAR D/A 1x12b | External Internal | FLASH | |
STMicroelectronics | 80 MHz | ARM® Cortex®-M4 | 100-UFBGA | CANbus I2C IrDA LINbus MMC/SD QSPI SAI SPI UART/USART | Surface Mount | 160 K | 32-Bit Single-Core | 83 | 85 °C | -40 °C | 100-UFBGA (7x7) | 512 KB | Brown-out Detect/Reset DMA PWM WDT | 3.6 V | 1.71 V | A/D 16x12b D/A 1x12b | Internal | FLASH |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 9.28 | |
| 10 | $ 6.42 | |||
| 25 | $ 5.68 | |||
| 80 | $ 4.97 | |||
| 230 | $ 4.49 | |||
| 440 | $ 4.25 | |||
| 945 | $ 4.03 | |||
| 2496 | $ 3.90 | |||
Description
General part information
STM32L451VE Series
The STM32L451xx devices are ultra-low-power microcontrollers based on the high-performance Arm®Cortex®-M4 32-bit RISC core operating at a frequency of up to 80 MHz. The Cortex-M4 core features a Floating point unit (FPU) single precision that supports all Arm®single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security.
The STM32L451xx devices embed high-speed memories (Flash memory up to 512 Kbyte, 160 Kbyte of SRAM), a Quad SPI Flash memories interface (available on all packages) and an extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB buses and a 32-bit multi-AHB bus matrix.
The STM32L451xx devices embed several protection mechanisms for embedded Flash memory and SRAM: readout protection, write protection, proprietary code readout protection and Firewall.
