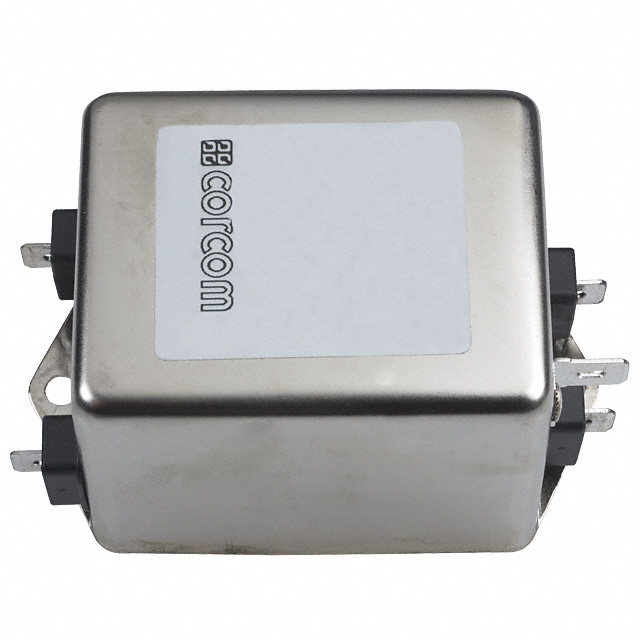

6609053-5

Active

TE Connectivity Raychem Cable Protection

6EHT1=F7664 S0

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

6EHT1=F7664 S0

Technical Specifications

Parameters and characteristics for this part

Part	Filter Type	Current Rating - Filter	Connector Style	Approval Agency	Termination	Termination	Termination	Mounting Type	Connector Type	Termination Style	Applications	Frequency - Operating [Max]	Frequency - Operating [Min]	Voltage - Rated AC	Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Current	Inductance
TE Connectivity Raychem Cable Protection 6609053-3	Filtered (EMI RFI) - Commercial	3 A	IEC 320-C14	CSA UL VDE	0.25 in	6.3 mm	Quick Connect	Flange Panel Mount	Male Blades Receptacle
TE Connectivity Raychem Cable Protection 6609053-1	Single Phase			CSA UR VDE				Chassis Mount		Quick Connect	General Purpose	60 Hz	50 Hz	250 V	Single Stage	-10 °C	40 °C	3 A	36.8 mH
TE Connectivity Raychem Cable Protection 6609053-5	Single Phase			CSA UR VDE				Chassis Mount		Quick Connect	General Purpose	60 Hz	50 Hz	250 V	Single Stage	-10 °C	40 °C	6 A	18.5 mH
TE Connectivity Raychem Cable Protection 6609053-4	Filtered (EMI RFI) - Commercial	3 A	IEC 320-C14	CSA UL VDE	0.25 in	6.3 mm	Quick Connect	Flange Panel Mount	Male Blades Receptacle
TE Connectivity Raychem Cable Protection 6609053-2	Single Phase			CSA UR VDE				Chassis Mount		Wire Leads	General Purpose	60 Hz	50 Hz	250 V	Single Stage	-10 °C	40 °C	3 A	36.8 mH

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 A Single Phase Filter, FASTON Input, .250" FASTON Output, 250 VAC, Corcom HT, Single Phase Filters
