6609053-1

Active

TE Connectivity Raychem Cable Protection

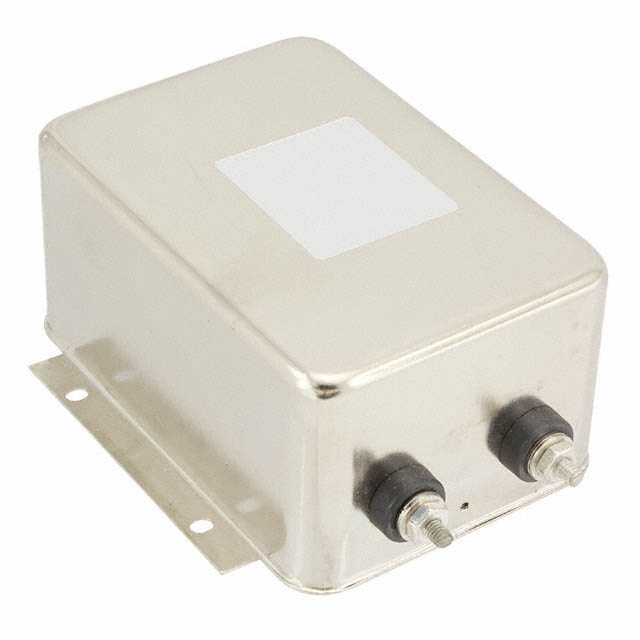

LINE FILTER 250VAC 3A CHASSIS

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 250VAC 3A CHASSIS

Technical Specifications

Parameters and characteristics for this part

Part	Filter Type	Current Rating - Filter	Connector Style	Approval Agency	Termination	Termination	Termination	Mounting Type	Connector Type	Termination Style	Applications	Frequency - Operating [Max]	Frequency - Operating [Min]	Voltage - Rated AC	Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Current	Inductance
TE Connectivity Raychem Cable Protection 6609053-3	Filtered (EMI RFI) - Commercial	3 A	IEC 320-C14	CSA UL VDE	0.25 in	6.3 mm	Quick Connect	Flange Panel Mount	Male Blades Receptacle
TE Connectivity Raychem Cable Protection 6609053-1	Single Phase			CSA UR VDE				Chassis Mount		Quick Connect	General Purpose	60 Hz	50 Hz	250 V	Single Stage	-10 °C	40 °C	3 A	36.8 mH
TE Connectivity Raychem Cable Protection 6609053-5	Single Phase			CSA UR VDE				Chassis Mount		Quick Connect	General Purpose	60 Hz	50 Hz	250 V	Single Stage	-10 °C	40 °C	6 A	18.5 mH
TE Connectivity Raychem Cable Protection 6609053-4	Filtered (EMI RFI) - Commercial	3 A	IEC 320-C14	CSA UL VDE	0.25 in	6.3 mm	Quick Connect	Flange Panel Mount	Male Blades Receptacle
TE Connectivity Raychem Cable Protection 6609053-2	Single Phase			CSA UR VDE				Chassis Mount		Wire Leads	General Purpose	60 Hz	50 Hz	250 V	Single Stage	-10 °C	40 °C	3 A	36.8 mH

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Single Phase EMC/EMI Line Filter 3 A 250V 50/60Hz Single Stage Quick Connect
