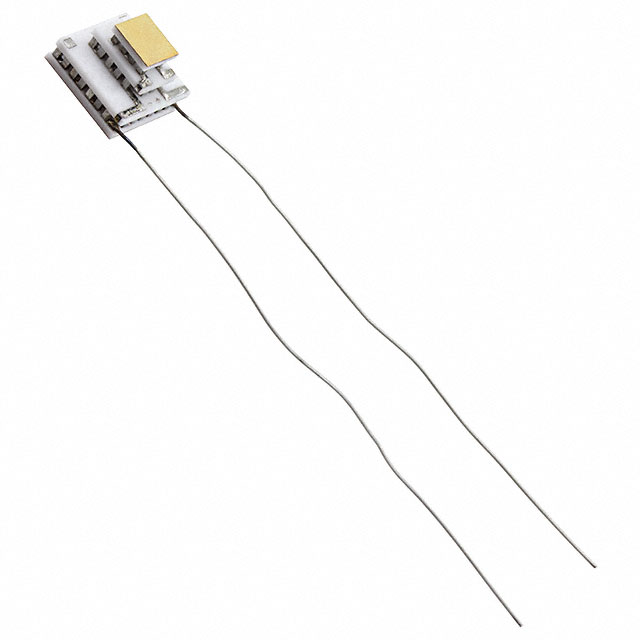

NL3026T-01AC

Active

Marlow Industries, Inc.

MULTISTAGE TEM 8.79X8.79X5.94MM

Search across all available documentation for this part.

Active

Marlow Industries, Inc.

MULTISTAGE TEM 8.79X8.79X5.94MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	NL3026T-01AC	NL3026T Series

Current - Max [Max]	1.3 A	1.3 A
Delta Tmax @ Th	93 °C	93 °C
Features	Exterior Metallization (Both Sides), Lead Wires	Lead Wires, Exterior Metallization, Exterior Metallization (Both Sides)
Height [z]	5.94 mm	5.94 mm
Number of Stages	3	3
Qmax @ Th	0.6 W	0.6 W
Resistance	2.51 Ohms	2.51 Ohms
Size / Dimension [x]	8.79 mm	8.79 mm
Size / Dimension [y]	8.79 mm	8.79 mm
Voltage - Max [Max]	3.4 V	3.4 V

MULTISTAGE TEM 8.79X8.79X5.94MM

Part	Size / Dimension [y]	Size / Dimension [x]	Qmax @ Th	Features	Resistance	Voltage - Max [Max]	Current - Max [Max]	Delta Tmax @ Th	Height [z]	Number of Stages
Marlow Industries, Inc. NL3026T-02AC	8.79 mm	8.79 mm	0.6 W	Exterior Metallization, Lead Wires	2.51 Ohms	3.4 V	1.3 A	93 °C	5.94 mm	3
Marlow Industries, Inc. NL3026T-03AC	8.79 mm	8.79 mm	0.6 W	Lead Wires	2.51 Ohms	3.4 V	1.3 A	93 °C	5.94 mm	3
Marlow Industries, Inc. NL3026T-01AC	8.79 mm	8.79 mm	0.6 W	Exterior Metallization (Both Sides), Lead Wires	2.51 Ohms	3.4 V	1.3 A	93 °C	5.94 mm	3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Peltier Module 0.6W @ 27°C 1.3 A 85°C
