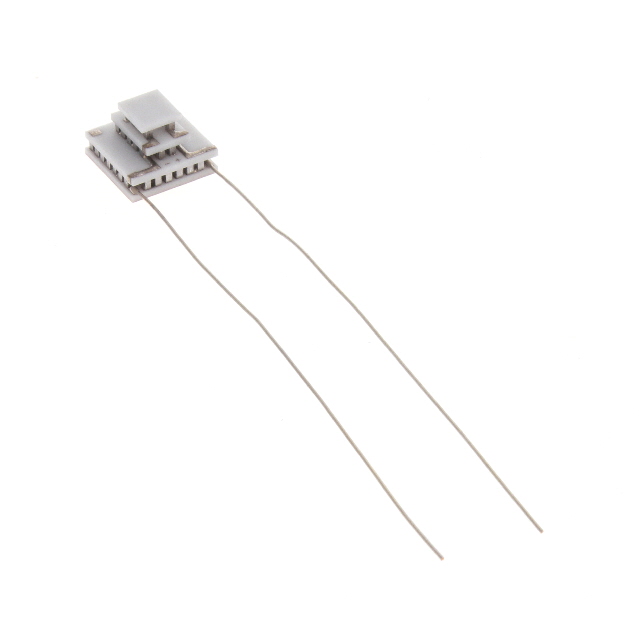

NL3026T-02AC

Active

Marlow Industries, Inc.

MULTISTAGE TEM 8.79X8.79X5.94MM

Search across all available documentation for this part.

Active

Marlow Industries, Inc.

MULTISTAGE TEM 8.79X8.79X5.94MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 82.12

General part information

Peltier Module 0.6W @ 27°C 1.3 A 85°C

Technical documentation and resources

Specification	NL3026T-02AC	NL3026T Series

Current - Max [Max]	1.3 A	1.3 A
Delta Tmax @ Th	93 °C	93 °C
Features	Lead Wires, Exterior Metallization	Lead Wires, Exterior Metallization, Exterior Metallization (Both Sides)
Height [z]	5.94 mm	5.94 mm
Number of Stages	3	3
Qmax @ Th	0.6 W	0.6 W
Resistance	2.51 Ohms	2.51 Ohms
Size / Dimension [x]	8.79 mm	8.79 mm
Size / Dimension [y]	8.79 mm	8.79 mm
Voltage - Max [Max]	3.4 V	3.4 V

Part	Size / Dimension [y]	Size / Dimension [x]	Qmax @ Th	Features	Resistance	Voltage - Max [Max]	Current - Max [Max]	Delta Tmax @ Th	Height [z]	Number of Stages
Marlow Industries, Inc. NL3026T-02AC	8.79 mm	8.79 mm	0.6 W	Exterior Metallization, Lead Wires	2.51 Ohms	3.4 V	1.3 A	93 °C	5.94 mm	3
Marlow Industries, Inc. NL3026T-03AC	8.79 mm	8.79 mm	0.6 W	Lead Wires	2.51 Ohms	3.4 V	1.3 A	93 °C	5.94 mm	3
Marlow Industries, Inc. NL3026T-01AC	8.79 mm	8.79 mm	0.6 W	Exterior Metallization (Both Sides), Lead Wires	2.51 Ohms	3.4 V	1.3 A	93 °C	5.94 mm	3
