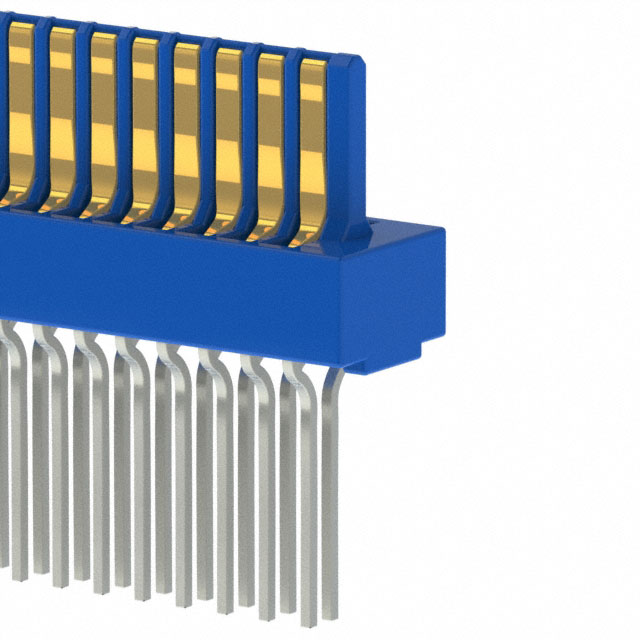

EBC15DPDS
ActiveSullins Connector Solutions
CONN EDGE DUAL FMALE 30POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
EBC15DPDS
ActiveSullins Connector Solutions
CONN EDGE DUAL FMALE 30POS 0.100
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EBC15DPDS |
|---|---|
| Card Thickness | 0.062 in |
| Card Thickness | 1.57 mm |
| Card Type | Non Specified - Dual Edge |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Phosphor Bronze |
| Contact Type | Hairpin Bellows |
| Flange Feature | Unthreaded, Side Mount Opening |
| Flange Feature [diameter] | 0.125 in |
| Flange Feature [diameter] | 3.18 mm |
| Gender | Female |
| Material - Insulation | Polybutylene Terephthalate (PBT) |
| Mounting Type | Through Hole |
| Number of Positions | 30 |
| Number of Positions/Bay/Row [custom] | 15 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
EBC15 Series
...
| Part | Number of Positions/Bay/Row [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Material - Insulation | Gender | Contact Finish Thickness | Contact Finish Thickness | Pitch [x] | Pitch [x] | Card Thickness | Card Thickness | Card Type | Contact Material | Contact Finish | Read Out | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Mounting Type | Contact Type | Number of Rows | Number of Positions | Features | Flange Feature | Flange Feature | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sullins Connector Solutions | 15 | 125 °C | -65 ░C | Solder | Polybutylene Terephthalate (PBT) | Female | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 0.062 in | 1.57 mm | Non Specified - Dual Edge | Phosphor Bronze | Gold | Dual | 0.125 in | 3.18 mm | Top Mount Opening Unthreaded | Through Hole | Cantilever | 2 | 30 | ||||
Sullins Connector Solutions | 15 | 125 °C | -65 ░C | Solder | Polybutylene Terephthalate (PBT) | Female | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 0.062 in | 1.57 mm | Non Specified - Dual Edge | Phosphor Bronze | Gold | Dual | 0.125 in | 3.18 mm | Top Mount Opening Unthreaded | Through Hole | Hairpin Bellows | 2 | 30 | ||||
Sullins Connector Solutions | 15 | 125 °C | -65 ░C | Solder | Polybutylene Terephthalate (PBT) | Female | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 0.062 in | 1.57 mm | Non Specified - Dual Edge | Phosphor Bronze | Gold | Dual | Through Hole Right Angle | Hairpin Bellows | 2 | 30 | |||||||
Sullins Connector Solutions | 15 | 125 °C | -65 ░C | Solder | Polybutylene Terephthalate (PBT) | Female | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 0.062 in | 1.57 mm | Non Specified - Dual Edge | Phosphor Bronze | Gold | Dual | 0.125 in | 3.18 mm | Side Mount Opening Unthreaded | Through Hole | Hairpin Bellows | 2 | 30 | ||||
Sullins Connector Solutions | 15 | 125 °C | -65 ░C | Solder | Polybutylene Terephthalate (PBT) | Female | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 0.062 in | 1.57 mm | Non Specified - Dual Edge | Phosphor Bronze | Gold | Dual | 4-40 Threaded Insert Top Mount Opening | Board Edge Straddle Mount | Loop Bellows | 2 | 30 | Card Extender | |||||
Sullins Connector Solutions | 15 | 125 °C | -65 ░C | Solder | Polybutylene Terephthalate (PBT) | Male | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 0.062 in | 1.57 mm | Fits Female Edgecards | Phosphor Bronze | Gold | Dual | Flush Mount Top Opening Unthreaded | Through Hole | 2 | 30 | 0.125 " | 3.18 mm | Blue | ||||
Sullins Connector Solutions | 15 | 125 °C | -65 ░C | Solder | Polybutylene Terephthalate (PBT) | Female | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 0.062 in | 1.57 mm | Non Specified - Dual Edge | Phosphor Bronze | Gold | Dual | 0.125 in | 3.18 mm | Side Mount Opening Unthreaded | Through Hole | Cantilever | 2 | 30 | ||||
Sullins Connector Solutions | 15 | 125 °C | -65 ░C | Solder | Polybutylene Terephthalate (PBT) | Female | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 0.062 in | 1.57 mm | Non Specified - Dual Edge | Phosphor Bronze | Gold | Dual | Flush Mount Top Opening Unthreaded | Through Hole | Cantilever | 2 | 30 | 0.125 " | 3.18 mm | ||||
Sullins Connector Solutions | 15 | 125 °C | -65 ░C | Solder | Polybutylene Terephthalate (PBT) | Female | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 0.062 in | 1.57 mm | Non Specified - Dual Edge | Phosphor Bronze | Gold | Dual | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole Right Angle | Cantilever | 2 | 30 | ||||||
Sullins Connector Solutions | 15 | 125 °C | -65 ░C | Solder | Polybutylene Terephthalate (PBT) | Female | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 0.062 in | 1.57 mm | Non Specified - Dual Edge | Phosphor Bronze | Gold | Dual | 0.125 in | 3.18 mm | Top Mount Opening Unthreaded | Board Edge Straddle Mount | Cantilever | 2 | 30 | Card Extender | Blue |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 10 | $ 4.93 | |
Description
General part information
EBC15 Series
30 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm)
Documents
Technical documentation and resources
No documents available
