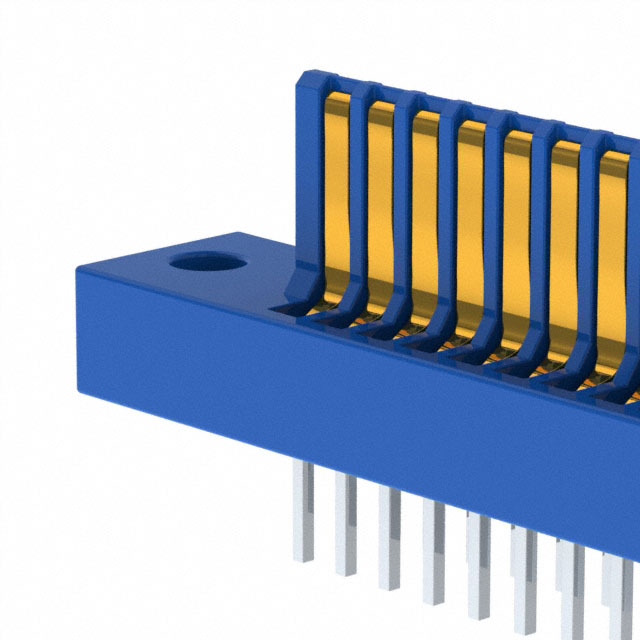

EBC15MMSD

Active

Sullins Connector Solutions

PLUGIN EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

EBC15MMSD

Active

Sullins Connector Solutions

PLUGIN EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EBC15MMSD

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	Fits Female Edgecards
Color	Blue
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Phosphor Bronze
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature	0.125 "
Flange Feature	3.18 mm
Gender	Male
Material - Insulation	Polybutylene Terephthalate (PBT)
Mounting Type	Through Hole
Number of Positions	30
Number of Positions/Bay/Row [custom]	15
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder

EBC15 Series

...

Part	Number of Positions/Bay/Row [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Material - Insulation	Gender	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Card Thickness	Card Thickness	Card Type	Contact Material	Contact Finish	Read Out	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Mounting Type	Contact Type	Number of Rows	Number of Positions	Features	Flange Feature	Flange Feature	Color
Sullins Connector Solutions EBC15DKDH	15	125 °C	-65 ░C	Solder	Polybutylene Terephthalate (PBT)	Female	10 Áin	0.25 Ám	2.54 mm	0.1 in	0.062 in	1.57 mm	Non Specified - Dual Edge	Phosphor Bronze	Gold	Dual	0.125 in	3.18 mm	Top Mount Opening Unthreaded	Through Hole	Cantilever	2	30
Sullins Connector Solutions EBC15DPFH	15	125 °C	-65 ░C	Solder	Polybutylene Terephthalate (PBT)	Female	10 Áin	0.25 Ám	2.54 mm	0.1 in	0.062 in	1.57 mm	Non Specified - Dual Edge	Phosphor Bronze	Gold	Dual	0.125 in	3.18 mm	Top Mount Opening Unthreaded	Through Hole	Hairpin Bellows	2	30
Sullins Connector Solutions EBC15DCAN-S189	15	125 °C	-65 ░C	Solder	Polybutylene Terephthalate (PBT)	Female	10 Áin	0.25 Ám	2.54 mm	0.1 in	0.062 in	1.57 mm	Non Specified - Dual Edge	Phosphor Bronze	Gold	Dual				Through Hole Right Angle	Hairpin Bellows	2	30
Sullins Connector Solutions EBC15DPDS	15	125 °C	-65 ░C	Solder	Polybutylene Terephthalate (PBT)	Female	10 Áin	0.25 Ám	2.54 mm	0.1 in	0.062 in	1.57 mm	Non Specified - Dual Edge	Phosphor Bronze	Gold	Dual	0.125 in	3.18 mm	Side Mount Opening Unthreaded	Through Hole	Hairpin Bellows	2	30
Sullins Connector Solutions EBC15DRSI-S288	15	125 °C	-65 ░C	Solder	Polybutylene Terephthalate (PBT)	Female	10 Áin	0.25 Ám	2.54 mm	0.1 in	0.062 in	1.57 mm	Non Specified - Dual Edge	Phosphor Bronze	Gold	Dual			4-40 Threaded Insert Top Mount Opening	Board Edge Straddle Mount	Loop Bellows	2	30	Card Extender
Sullins Connector Solutions EBC15MMSD	15	125 °C	-65 ░C	Solder	Polybutylene Terephthalate (PBT)	Male	10 Áin	0.25 Ám	2.54 mm	0.1 in	0.062 in	1.57 mm	Fits Female Edgecards	Phosphor Bronze	Gold	Dual			Flush Mount Top Opening Unthreaded	Through Hole		2	30		0.125 "	3.18 mm	Blue
Sullins Connector Solutions EBC15DKDS	15	125 °C	-65 ░C	Solder	Polybutylene Terephthalate (PBT)	Female	10 Áin	0.25 Ám	2.54 mm	0.1 in	0.062 in	1.57 mm	Non Specified - Dual Edge	Phosphor Bronze	Gold	Dual	0.125 in	3.18 mm	Side Mount Opening Unthreaded	Through Hole	Cantilever	2	30
Sullins Connector Solutions EBC15DKSD	15	125 °C	-65 ░C	Solder	Polybutylene Terephthalate (PBT)	Female	10 Áin	0.25 Ám	2.54 mm	0.1 in	0.062 in	1.57 mm	Non Specified - Dual Edge	Phosphor Bronze	Gold	Dual			Flush Mount Top Opening Unthreaded	Through Hole	Cantilever	2	30		0.125 "	3.18 mm
Sullins Connector Solutions EBC15DKAT	15	125 °C	-65 ░C	Solder	Polybutylene Terephthalate (PBT)	Female	10 Áin	0.25 Ám	2.54 mm	0.1 in	0.062 in	1.57 mm	Non Specified - Dual Edge	Phosphor Bronze	Gold	Dual			4-40 Flush Mount Threaded Insert Top Opening	Through Hole Right Angle	Cantilever	2	30
Sullins Connector Solutions EBC15DKNH	15	125 °C	-65 ░C	Solder	Polybutylene Terephthalate (PBT)	Female	10 Áin	0.25 Ám	2.54 mm	0.1 in	0.062 in	1.57 mm	Non Specified - Dual Edge	Phosphor Bronze	Gold	Dual	0.125 in	3.18 mm	Top Mount Opening Unthreaded	Board Edge Straddle Mount	Cantilever	2	30	Card Extender			Blue

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 5.68
		10	$ 5.16
		30	$ 4.89
		40	$ 4.77
		80	$ 4.54
		230	$ 3.98
		440	$ 3.86
		950	$ 3.30
		2400	$ 3.07
LCSC	Piece	1	$ 7.83
		200	$ 3.12
		500	$ 3.02
		1000	$ 2.97

Description

General part information

EBC15 Series

30 Position Male Connector Fits Female Edgecards Gold 0.100" (2.54mm) Blue

Documents

Technical documentation and resources

No documents available
