031-6963

Active

AMPHENOL RF

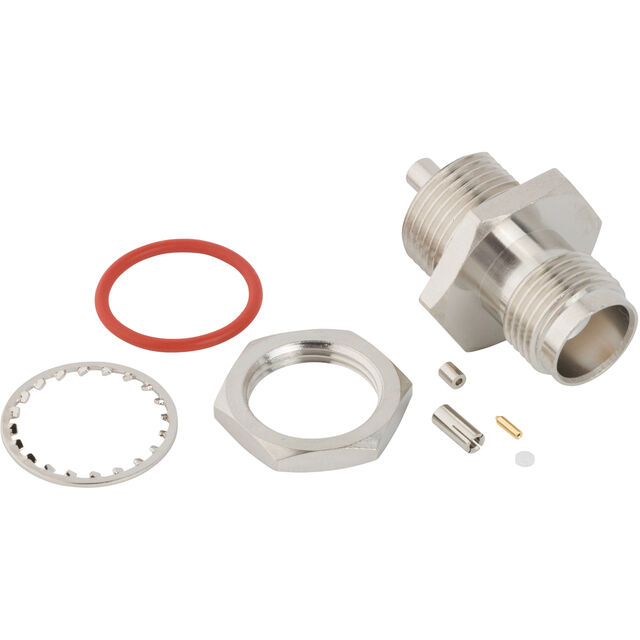

TNC STRAIGHT CRIMP JACK 1.37 MM

Deep-Dive with AI

Search across all available documentation for this part.

031-6963

Active

AMPHENOL RF

TNC STRAIGHT CRIMP JACK 1.37 MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 13.23
		10	$ 11.24
		25	$ 10.54
		50	$ 10.03
		100	$ 9.55
		250	$ 8.96
		500	$ 8.53
		1000	$ 8.12

Description

General part information

031-69 Series

TNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	031-6963	031-69 Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	1.37mm Coaxial Cable	1.37mm Coaxial Cable, RG-58, 1.13mm Coaxial Cable, RG-316, LMR-240, RD-316
Cable Group	-	0.81 mm
Center Contact Material	Beryllium Copper	Beryllium Copper, Phosphor Bronze
Center Contact Plating	Gold	Gold
Connector Style	TNC	TNC, BNC, RP-TNC
Connector Type	Female Socket, Jack	Female Socket, Jack, Male Pin, Plug
Contact Termination	Solder	Solder, Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	-	Bayonet Lock
Frequency - Max [Max]	9 GHz	9 - 6000 GHz
Housing Color	Silver	Silver, Natural
Impedance	50 Ohms	50 Ohms
Ingress Protection	-	IP67 - Dust Tight, Waterproof
Mating Cycles	500	500
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut, Bulkhead - Rear Side Nut
Mounting Type	-	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	165 °C	85 - 165 °C
Operating Temperature [Min]	-65 ░C	-65 - -40 ░C
Shield Termination	Crimp	Crimp
Voltage Rating	500 V	500 V

031-69 Series

TNC STRAIGHT CRIMP JACK 1.37 MM

Part	Number of Ports	Cable Group	Body Finish	Body Material	Housing Color	Mating Cycles	Connector Style	Frequency - Max [Max]	Voltage Rating	Center Contact Plating	Contact Termination	Shield Termination	Mounting Feature	Impedance	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Connector Type	Fastening Type	Mounting Type	Ingress Protection	Cable Group [diameter]
AMPHENOL RF 031-6963	1	1.37mm Coaxial Cable	Nickel	Brass	Silver	500	TNC	9 GHz	500 V	Gold	Solder	Crimp	Bulkhead - Front Side Nut	50 Ohms	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Beryllium Copper	Female Socket, Jack
AMPHENOL RF 031-6924	1	RG-58	Nickel	Brass	Silver	500	BNC	6000 MHz		Gold	Solder	Crimp		50 Ohms	Polytetrafluoroethylene (PTFE)	-40 °C	85 °C	Beryllium Copper	Male Pin, Plug	Bayonet Lock	Free Hanging (In-Line)	IP67 - Dust Tight, Waterproof
AMPHENOL RF 031-6900	1	1.13mm Coaxial Cable	Nickel	Brass	Silver	500	RP-TNC	6000 MHz		Gold	Solder	Crimp	Bulkhead - Rear Side Nut	50 Ohms	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Phosphor Bronze	Jack, Male Pin			IP67 - Dust Tight, Waterproof
AMPHENOL RF 031-6925	1	RG-316	Nickel	Brass	Silver	500	BNC	6000 MHz		Gold	Solder	Crimp		50 Ohms	Polytetrafluoroethylene (PTFE)	-40 °C	85 °C	Beryllium Copper	Male Pin, Plug	Bayonet Lock	Free Hanging (In-Line)	IP67 - Dust Tight, Waterproof
AMPHENOL RF 031-6998	1		Nickel	Brass	Silver	500	TNC	9 GHz	500 V	Gold	Solder	Crimp	Bulkhead - Front Side Nut	50 Ohms	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Beryllium Copper	Female Socket, Jack			IP67 - Dust Tight, Waterproof	0.81 mm
AMPHENOL RF 031-6921	1	LMR-240	Nickel	Brass	Silver	500	TNC	6000 MHz		Gold	Solder	Crimp	Bulkhead - Front Side Nut	50 Ohms	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Beryllium Copper	Female Socket, Jack			IP67 - Dust Tight, Waterproof
AMPHENOL RF 031-6923	1	RG-58	Nickel	Brass	Silver	500	TNC	6000 MHz		Gold	Solder	Crimp		50 Ohms	Polytetrafluoroethylene (PTFE)	-40 °C	85 °C	Beryllium Copper	Male Pin, Plug		Free Hanging (In-Line)	IP67 - Dust Tight, Waterproof
AMPHENOL RF 031-6923-EE	1	RG-58	Nickel	Brass	Natural	500	TNC	6000 MHz		Gold	Crimp	Crimp		50 Ohms	Polytetrafluoroethylene (PTFE)	-40 °C	85 °C	Beryllium Copper	Male Pin, Plug		Free Hanging (In-Line)	IP67 - Dust Tight, Waterproof
AMPHENOL RF 031-6999	1	1.37mm Coaxial Cable	Nickel	Brass	Silver	500	TNC	9 GHz	500 V	Gold	Solder	Crimp	Bulkhead - Front Side Nut	50 Ohms	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Beryllium Copper	Female Socket, Jack			IP67 - Dust Tight, Waterproof
AMPHENOL RF 031-6924-EE	1	RG-58	Nickel	Brass	Natural	500	BNC	6000 MHz		Gold	Crimp	Crimp		50 Ohms	Polytetrafluoroethylene (PTFE)	-40 °C	85 °C	Beryllium Copper	Male Pin, Plug	Bayonet Lock	Free Hanging (In-Line)	IP67 - Dust Tight, Waterproof
