031-6924

Active

AMPHENOL RF

RF CONNECTOR BNC STRAIGHT CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

031-6924

Active

AMPHENOL RF

RF CONNECTOR BNC STRAIGHT CRIMP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 14.71
		10	$ 13.04
		25	$ 12.54
		50	$ 12.04
		100	$ 11.37
		250	$ 10.37
		500	$ 9.70
		1000	$ 8.90

Description

General part information

031-69 Series

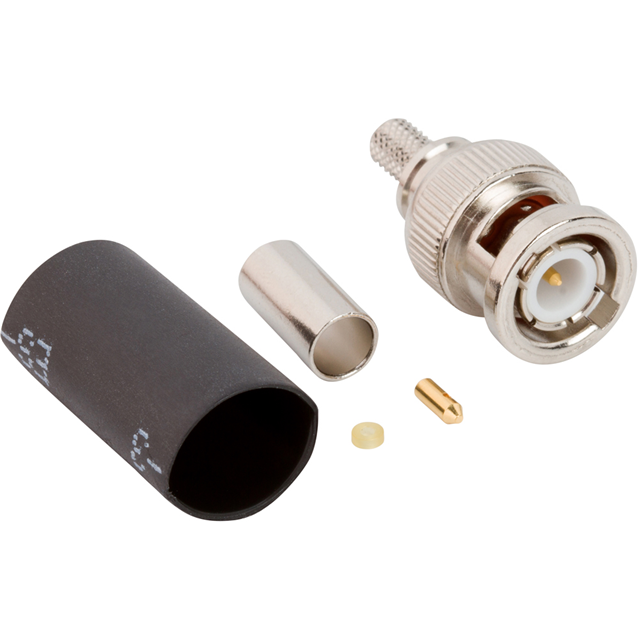

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	031-6924	031-69 Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	RG-58	1.37mm Coaxial Cable, RG-58, 1.13mm Coaxial Cable, RG-316, LMR-240, RD-316
Cable Group	-	0.81 mm
Center Contact Material	Beryllium Copper	Beryllium Copper, Phosphor Bronze
Center Contact Plating	Gold	Gold
Connector Style	BNC	TNC, BNC, RP-TNC
Connector Type	Male Pin, Plug	Female Socket, Jack, Male Pin, Plug
Contact Termination	Solder	Solder, Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock	Bayonet Lock
Frequency - Max [Max]	6000 MHz	9 - 6000 GHz
Housing Color	Silver	Silver, Natural
Impedance	50 Ohms	50 Ohms
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mating Cycles	500	500
Mounting Feature	-	Bulkhead - Front Side Nut, Bulkhead - Rear Side Nut
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	85 °C	85 - 165 °C
Operating Temperature [Min]	-40 °C	-65 - -40 ░C
Shield Termination	Crimp	Crimp
Voltage Rating	-	500 V

031-69 Series

TNC STRAIGHT CRIMP JACK 1.37 MM

Part	Number of Ports	Cable Group	Body Finish	Body Material	Housing Color	Mating Cycles	Connector Style	Frequency - Max [Max]	Voltage Rating	Center Contact Plating	Contact Termination	Shield Termination	Mounting Feature	Impedance	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Connector Type	Fastening Type	Mounting Type	Ingress Protection	Cable Group [diameter]
AMPHENOL RF 031-6963	1	1.37mm Coaxial Cable	Nickel	Brass	Silver	500	TNC	9 GHz	500 V	Gold	Solder	Crimp	Bulkhead - Front Side Nut	50 Ohms	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Beryllium Copper	Female Socket, Jack
AMPHENOL RF 031-6924	1	RG-58	Nickel	Brass	Silver	500	BNC	6000 MHz		Gold	Solder	Crimp		50 Ohms	Polytetrafluoroethylene (PTFE)	-40 °C	85 °C	Beryllium Copper	Male Pin, Plug	Bayonet Lock	Free Hanging (In-Line)	IP67 - Dust Tight, Waterproof
AMPHENOL RF 031-6900	1	1.13mm Coaxial Cable	Nickel	Brass	Silver	500	RP-TNC	6000 MHz		Gold	Solder	Crimp	Bulkhead - Rear Side Nut	50 Ohms	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Phosphor Bronze	Jack, Male Pin			IP67 - Dust Tight, Waterproof
AMPHENOL RF 031-6925	1	RG-316	Nickel	Brass	Silver	500	BNC	6000 MHz		Gold	Solder	Crimp		50 Ohms	Polytetrafluoroethylene (PTFE)	-40 °C	85 °C	Beryllium Copper	Male Pin, Plug	Bayonet Lock	Free Hanging (In-Line)	IP67 - Dust Tight, Waterproof
AMPHENOL RF 031-6998	1		Nickel	Brass	Silver	500	TNC	9 GHz	500 V	Gold	Solder	Crimp	Bulkhead - Front Side Nut	50 Ohms	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Beryllium Copper	Female Socket, Jack			IP67 - Dust Tight, Waterproof	0.81 mm
AMPHENOL RF 031-6921	1	LMR-240	Nickel	Brass	Silver	500	TNC	6000 MHz		Gold	Solder	Crimp	Bulkhead - Front Side Nut	50 Ohms	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Beryllium Copper	Female Socket, Jack			IP67 - Dust Tight, Waterproof
AMPHENOL RF 031-6923	1	RG-58	Nickel	Brass	Silver	500	TNC	6000 MHz		Gold	Solder	Crimp		50 Ohms	Polytetrafluoroethylene (PTFE)	-40 °C	85 °C	Beryllium Copper	Male Pin, Plug		Free Hanging (In-Line)	IP67 - Dust Tight, Waterproof
AMPHENOL RF 031-6923-EE	1	RG-58	Nickel	Brass	Natural	500	TNC	6000 MHz		Gold	Crimp	Crimp		50 Ohms	Polytetrafluoroethylene (PTFE)	-40 °C	85 °C	Beryllium Copper	Male Pin, Plug		Free Hanging (In-Line)	IP67 - Dust Tight, Waterproof
AMPHENOL RF 031-6999	1	1.37mm Coaxial Cable	Nickel	Brass	Silver	500	TNC	9 GHz	500 V	Gold	Solder	Crimp	Bulkhead - Front Side Nut	50 Ohms	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Beryllium Copper	Female Socket, Jack			IP67 - Dust Tight, Waterproof
AMPHENOL RF 031-6924-EE	1	RG-58	Nickel	Brass	Natural	500	BNC	6000 MHz		Gold	Crimp	Crimp		50 Ohms	Polytetrafluoroethylene (PTFE)	-40 °C	85 °C	Beryllium Copper	Male Pin, Plug	Bayonet Lock	Free Hanging (In-Line)	IP67 - Dust Tight, Waterproof
