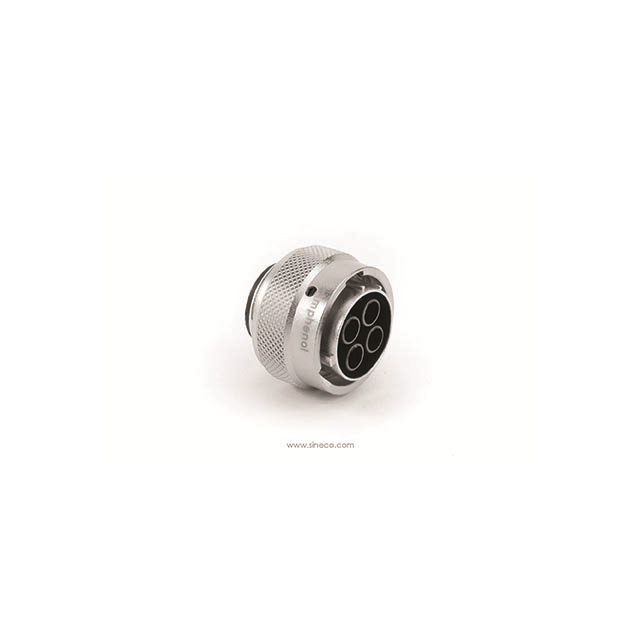

RT06164SNH03

Active

Amphenol Sine Systems Corp

PLUG, FEMALE WITH SILICONE SEAL,

Deep-Dive with AI

Search across all available documentation for this part.

Documentsecomate-Family-Flyer-2019 Datasheet

RT06164SNH03

Active

Amphenol Sine Systems Corp

PLUG, FEMALE WITH SILICONE SEAL,

Deep-Dive with AI

Documentsecomate-Family-Flyer-2019 Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RT06164SNH03

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	3.6 mm
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut
Housing Color	Silver
Includes	1 Gasket, 1 Connector, 1 O-Ring
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	16-4
Shielding	Shielded
Type	For Female Sockets

RT06164 Series

Part	Material Flammability Rating	Insert Material	Note	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Type	Features	Contact Type	Shell Material	Number of Positions	Housing Color	Shielding	Shell Size - Insert	Orientation	Mounting Type	Connector Type	Contact Shape	Shell Finish	Primary Material	Contact Size	Fastening Type	Includes
Amphenol Sine Systems Corp RT06164SNHEC03	UL94 V-0	Thermoplastic	Contacts Not Included	125 °C	-40 °C	IP67 - Dust Tight Waterproof	For Female Sockets	Coupling Nut	Crimp	Zinc Alloy	4	Silver	Shielded	16-4	N	Free Hanging (In-Line)	Plug Housing	Circular	Nickel	Metal	8	Bayonet Lock
Amphenol Sine Systems Corp RT06164SNH	UL94 V-0	Thermoplastic	Contacts Not Included	105 ░C	-40 °C	IP67 - Dust Tight Waterproof	For Female Sockets	Coupling Nut	Crimp	Zinc Alloy	4	Silver	Shielded	16-4	N	Free Hanging (In-Line)	Plug Housing	Circular	Nickel		3.6 mm	Bayonet Lock
Amphenol Sine Systems Corp RT06164PNH	UL94 V-0	Thermoplastic	Contacts Not Included	105 ░C	-40 °C	IP67 - Dust Tight Waterproof	For Male Pins	Coupling Nut	Crimp	Zinc Alloy	4	Silver	Shielded	16-4	N	Free Hanging (In-Line)	Plug Housing	Circular	Nickel		3.6 mm	Bayonet Lock
Amphenol Sine Systems Corp RT06164SNH03	UL94 V-0	Thermoplastic	Contacts Not Included	125 °C	-40 °C	IP67 - Dust Tight Waterproof	For Female Sockets	Coupling Nut	Crimp	Zinc Alloy	4	Silver	Shielded	16-4	N	Free Hanging (In-Line)	Plug Housing	Circular	Nickel		3.6 mm	Bayonet Lock	1 Connector 1 Gasket 1 O-Ring
Amphenol Sine Systems Corp RT06164PNHEC03	UL94 V-0	Thermoplastic	Contacts Not Included	125 °C	-40 °C	IP67 - Dust Tight Waterproof	For Male Pins	Coupling Nut	Crimp	Zinc Alloy	4	Silver	Shielded	16-4	N	Free Hanging (In-Line)	Plug Housing	Circular	Nickel	Metal	8	Bayonet Lock

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 17.62

Description

General part information

RT06164 Series

4 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut

Documents

Technical documentation and resources

ecomate-Family-Flyer-2019

Datasheet
