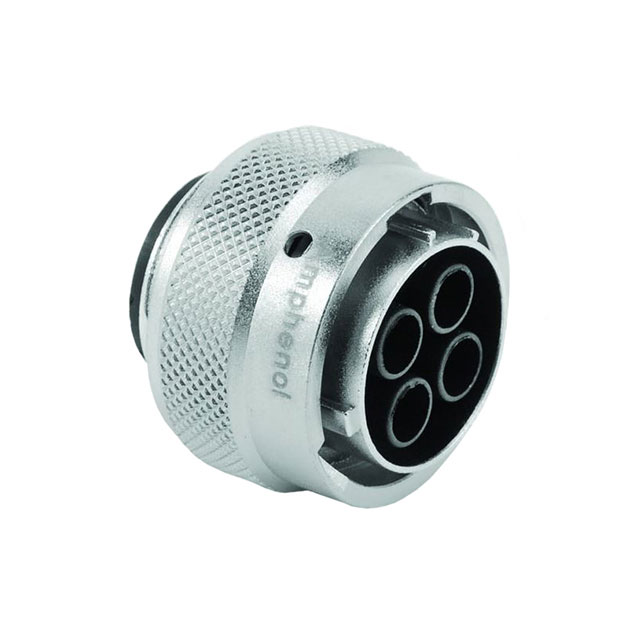

RT06164SNH
ActiveAmphenol Sine Systems Corp
CONN PLUG HSG FMALE 4POS INLINE
Deep-Dive with AI
Search across all available documentation for this part.
RT06164SNH
ActiveAmphenol Sine Systems Corp
CONN PLUG HSG FMALE 4POS INLINE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RT06164SNH |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 3.6 mm |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | Coupling Nut |
| Housing Color | Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 4 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shell Size - Insert | 16-4 |
| Shielding | Shielded |
| Type | For Female Sockets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 21.06 | |
| 10 | $ 18.44 | |||
| 25 | $ 17.64 | |||
| 50 | $ 17.07 | |||
| 100 | $ 16.50 | |||
| 300 | $ 15.59 | |||
| 600 | $ 15.14 | |||
Description
General part information
RT06164 Series
4 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
