MEC6-130-02-L-DV-A-K
ActiveSamtec Inc.

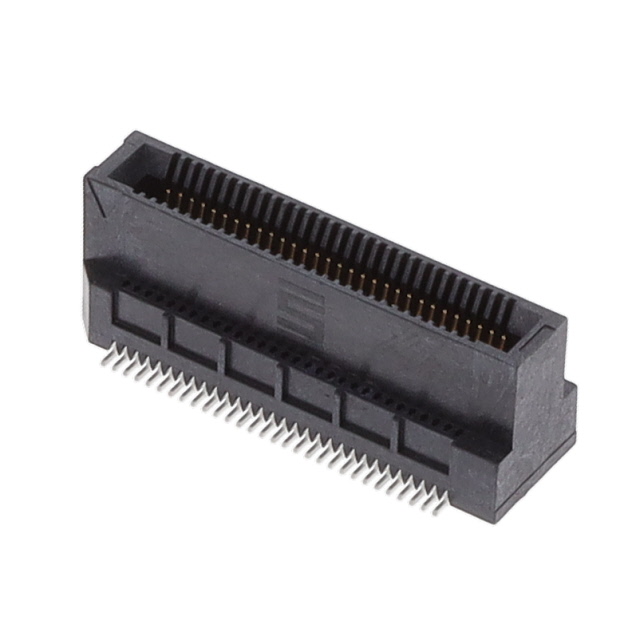

CONN CARD EDGE SKT 60 POS 0.635MM SOLDER ST SMD TRAY
Deep-Dive with AI
Search across all available documentation for this part.
MEC6-130-02-L-DV-A-K
ActiveSamtec Inc.
CONN CARD EDGE SKT 60 POS 0.635MM SOLDER ST SMD TRAY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MEC6-130-02-L-DV-A-K |
|---|---|
| Card Thickness | 0.062 in |
| Card Thickness | 1.57 mm |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Phosphor Bronze |
| Features | Pick and Place, Board Guide |
| Gender | Female |
| Material - Insulation | Liquid Crystal Polymer (LCP) |
| Mounting Type | Surface Mount |
| Number of Positions | 60 |
| Number of Positions/Bay/Row [custom] | 30 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.64 mm |
| Pitch [x] | 0.025 in |
| Read Out | Dual |
| Termination | Solder |
MEC6-130 Series
| Part | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Card Thickness | Card Thickness | Number of Rows | Features | Read Out | Card Type | Number of Positions | Color | Gender | Mounting Type | Termination | Number of Positions/Bay/Row [custom] | Contact Finish Thickness | Contact Finish Thickness | Material - Insulation | Contact Material | Pitch [x] | Pitch [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | Gold | -55 °C | 125 °C | 0.062 in | 1.57 mm | 2 | Board Guide | Dual | Non Specified - Dual Edge | 60 | Black | Female | Surface Mount | Solder | 30 | 0.76 Ám | 30 Áin | Liquid Crystal Polymer (LCP) | Phosphor Bronze | 0.64 mm | 0.025 in |
Samtec Inc. | Gold | -55 °C | 125 °C | 0.062 in | 1.57 mm | 2 | Board Guide | Dual | Non Specified - Dual Edge | 60 | Black | Female | Surface Mount Right Angle | Solder | 30 | 0.25 Ám | 10 Áin | Liquid Crystal Polymer (LCP) | Phosphor Bronze | 0.64 mm | 0.025 in |
Samtec Inc. | Gold | -55 °C | 125 °C | 0.062 in | 1.57 mm | 2 | Board Guide Pick and Place | Dual | Non Specified - Dual Edge | 60 | Black | Female | Surface Mount | Solder | 30 | 0.25 Ám | 10 Áin | Liquid Crystal Polymer (LCP) | Phosphor Bronze | 0.64 mm | 0.025 in |
Samtec Inc. | Gold | -55 °C | 125 °C | 0.062 in | 1.57 mm | 2 | Board Guide Pick and Place | Dual | Non Specified - Dual Edge | 60 | Black | Female | Surface Mount | Solder | 30 | 0.76 Ám | 30 Áin | Liquid Crystal Polymer (LCP) | Phosphor Bronze | 0.64 mm | 0.025 in |
Samtec Inc. | Gold | -55 °C | 125 °C | 0.062 in | 1.57 mm | 2 | Dual | Non Specified - Dual Edge | 60 | Black | Female | Surface Mount | Solder | 30 | 0.25 Ám | 10 Áin | Liquid Crystal Polymer (LCP) | Phosphor Bronze | 0.64 mm | 0.025 in | |
Samtec Inc. | Gold | -55 °C | 125 °C | 0.062 in | 1.57 mm | 2 | Board Guide Pick and Place | Dual | Non Specified - Dual Edge | 60 | Black | Female | Surface Mount | Solder | 30 | 0.25 Ám | 10 Áin | Liquid Crystal Polymer (LCP) | Phosphor Bronze | 0.64 mm | 0.025 in |
Samtec Inc. | Gold | -55 °C | 125 °C | 0.062 in | 1.57 mm | 2 | Pick and Place | Dual | Non Specified - Dual Edge | 60 | Black | Female | Surface Mount | Solder | 30 | 0.25 Ám | 10 Áin | Liquid Crystal Polymer (LCP) | Phosphor Bronze | 0.64 mm | 0.025 in |
Samtec Inc. | Gold | -55 °C | 125 °C | 0.062 in | 1.57 mm | 2 | Dual | Non Specified - Dual Edge | 60 | Black | Female | Surface Mount | Solder | 30 | 0.76 Ám | 30 Áin | Liquid Crystal Polymer (LCP) | Phosphor Bronze | 0.64 mm | 0.025 in | |
Samtec Inc. | Gold | -55 °C | 125 °C | 0.062 in | 1.57 mm | 2 | Dual | Non Specified - Dual Edge | 60 | Black | Female | Surface Mount | Solder | 30 | 0.25 Ám | 10 Áin | Liquid Crystal Polymer (LCP) | Phosphor Bronze | 0.64 mm | 0.025 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 78 | $ 5.64 | |
| 156 | $ 5.28 | |||
Description
General part information
MEC6-130 Series
60 Position Female Connector Non Specified - Dual Edge Gold 0.025" (0.64mm) Black
