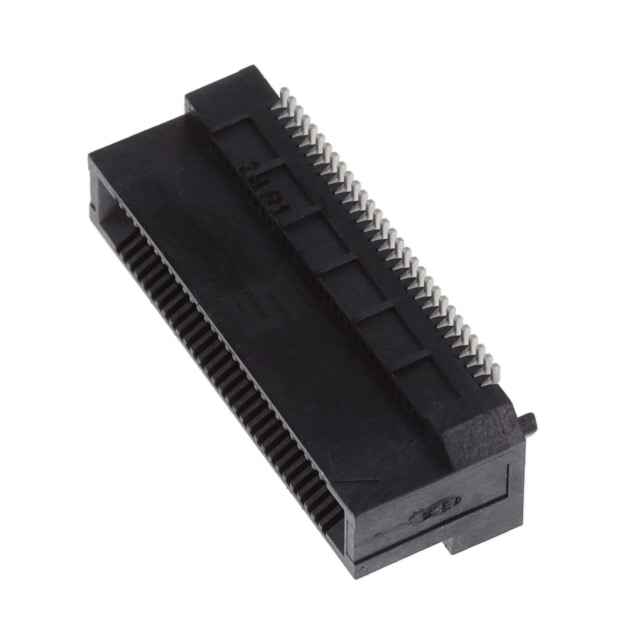

MEC6-130-02-L-DV-A-K-TR

Active

Samtec Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 60 CONTACTS, SURFACE MOUNT, STRAIGHT, SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMEC6 Series Other Related Documents 03 MEC6 Datasheet +3

MEC6-130-02-L-DV-A-K-TR

Active

Samtec Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 60 CONTACTS, SURFACE MOUNT, STRAIGHT, SOLDER

Deep-Dive with AI

DocumentsMEC6 Series Other Related Documents 03 MEC6 Datasheet +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MEC6-130-02-L-DV-A-K-TR

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Phosphor Bronze
Features	Pick and Place, Board Guide
Gender	Female
Material - Insulation	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	60
Number of Positions/Bay/Row [custom]	30
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.64 mm
Pitch [x]	0.025 in
Read Out	Dual
Termination	Solder

MEC6-130 Series

Part	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness	Card Thickness	Number of Rows	Features	Read Out	Card Type	Number of Positions	Color	Gender	Mounting Type	Termination	Number of Positions/Bay/Row [custom]	Contact Finish Thickness	Contact Finish Thickness	Material - Insulation	Contact Material	Pitch [x]	Pitch [x]
Samtec Inc. MEC6-130-02-S-DV-A-TR	Gold	-55 °C	125 °C	0.062 in	1.57 mm	2	Board Guide	Dual	Non Specified - Dual Edge	60	Black	Female	Surface Mount	Solder	30	0.76 Ám	30 Áin	Liquid Crystal Polymer (LCP)	Phosphor Bronze	0.64 mm	0.025 in
Samtec Inc. MEC6-130-02-L-D-RA1	Gold	-55 °C	125 °C	0.062 in	1.57 mm	2	Board Guide	Dual	Non Specified - Dual Edge	60	Black	Female	Surface Mount Right Angle	Solder	30	0.25 Ám	10 Áin	Liquid Crystal Polymer (LCP)	Phosphor Bronze	0.64 mm	0.025 in
Samtec Inc. MEC6-130-02-L-DV-A-K	Gold	-55 °C	125 °C	0.062 in	1.57 mm	2	Board Guide Pick and Place	Dual	Non Specified - Dual Edge	60	Black	Female	Surface Mount	Solder	30	0.25 Ám	10 Áin	Liquid Crystal Polymer (LCP)	Phosphor Bronze	0.64 mm	0.025 in
Samtec Inc. MEC6-130-02-S-DV-A-K-TR	Gold	-55 °C	125 °C	0.062 in	1.57 mm	2	Board Guide Pick and Place	Dual	Non Specified - Dual Edge	60	Black	Female	Surface Mount	Solder	30	0.76 Ám	30 Áin	Liquid Crystal Polymer (LCP)	Phosphor Bronze	0.64 mm	0.025 in
Samtec Inc. MEC6-130-02-L-DV	Gold	-55 °C	125 °C	0.062 in	1.57 mm	2		Dual	Non Specified - Dual Edge	60	Black	Female	Surface Mount	Solder	30	0.25 Ám	10 Áin	Liquid Crystal Polymer (LCP)	Phosphor Bronze	0.64 mm	0.025 in
Samtec Inc. MEC6-130-02-L-DV-A-K-TR	Gold	-55 °C	125 °C	0.062 in	1.57 mm	2	Board Guide Pick and Place	Dual	Non Specified - Dual Edge	60	Black	Female	Surface Mount	Solder	30	0.25 Ám	10 Áin	Liquid Crystal Polymer (LCP)	Phosphor Bronze	0.64 mm	0.025 in
Samtec Inc. MEC6-130-02-L-DV-K-TR	Gold	-55 °C	125 °C	0.062 in	1.57 mm	2	Pick and Place	Dual	Non Specified - Dual Edge	60	Black	Female	Surface Mount	Solder	30	0.25 Ám	10 Áin	Liquid Crystal Polymer (LCP)	Phosphor Bronze	0.64 mm	0.025 in
Samtec Inc. MEC6-130-02-S-DV	Gold	-55 °C	125 °C	0.062 in	1.57 mm	2		Dual	Non Specified - Dual Edge	60	Black	Female	Surface Mount	Solder	30	0.76 Ám	30 Áin	Liquid Crystal Polymer (LCP)	Phosphor Bronze	0.64 mm	0.025 in
Samtec Inc. MEC6-130-02-L-DV-LC	Gold	-55 °C	125 °C	0.062 in	1.57 mm	2		Dual	Non Specified - Dual Edge	60	Black	Female	Surface Mount	Solder	30	0.25 Ám	10 Áin	Liquid Crystal Polymer (LCP)	Phosphor Bronze	0.64 mm	0.025 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 6.79
		10	$ 6.27
		25	$ 5.93
		50	$ 5.72
	Digi-Reel®	1	$ 6.79
		10	$ 6.27
		25	$ 5.93
		50	$ 5.72
	Tape & Reel (TR)	175	$ 4.69
		525	$ 4.35
		1225	$ 4.33
Newark	Each (Supplied on Cut Tape)	1	$ 6.59
		10	$ 6.09
		25	$ 5.75
		50	$ 5.55
		100	$ 4.96

Description

General part information

MEC6-130 Series

60 Position Female Connector Non Specified - Dual Edge Gold 0.025" (0.64mm) Black

MEC6-130-02-L-DV-A-K-TR

Deep-Dive with AI

MEC6-130-02-L-DV-A-K-TR

Deep-Dive with AI

Technical Specifications

MEC6-130 Series

Pricing

Description

MEC6-130 Series

Documents

MEC6 Series Other Related Documents 03

MEC6 Datasheet

0.635 mm Mini Edge Card Connector, Vertical

Datasheet

Technical Data Sheet EN

MEC6-130 Series
