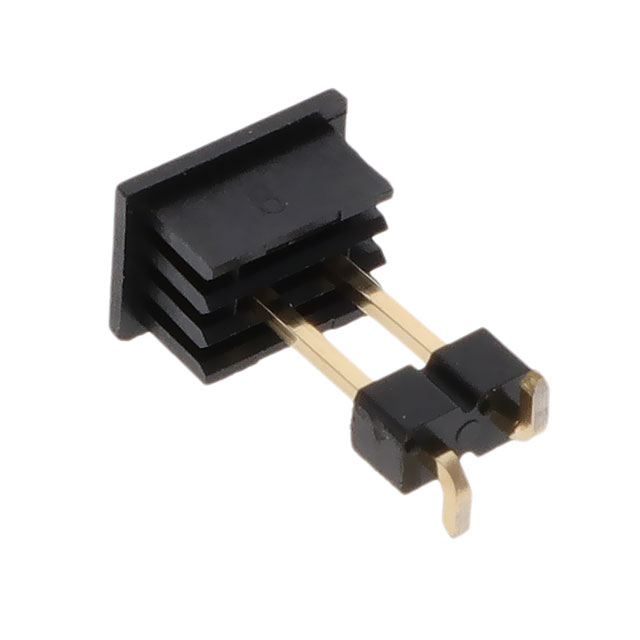

10129380-902002ALF

Active

Amphenol ICC (FCI)

CONN HEADER SMD 2POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 10129380 Datasheet +2

10129380-902002ALF

Active

Amphenol ICC (FCI)

CONN HEADER SMD 2POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet 10129380 Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10129380-902002ALF

Applications	Industrial, Medical, General Purpose, Telecommunications
Connector Type	Cuttable, Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1 µin
Contact Finish Thickness - Mating	0.025 µm
Contact Length - Mating [x]	0.318 "
Contact Length - Mating [x]	8.08 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

10129380 Series

Part	Insulation Color	Shrouding	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Mating [x]	Contact Length - Mating [x]	Material Flammability Rating	Number of Rows	Connector Type	Insulation Material	Contact Shape	Current Rating (Amps)	Contact Type	Contact Material	Fastening Type	Mounting Type	Number of Positions Loaded	Style	Contact Finish - Mating	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Applications	Contact Length - Mating
Amphenol ICC (FCI) 10129380-902002ALF	Black	Unshrouded	2	1 µin	0.025 µm	Solder	105 ░C	-55 °C	0.318 "	8.08 mm	UL94 V-0	1	Cuttable Header	Thermoplastic	Square	3 A	Male Pin	Copper Alloy	Push-Pull	Surface Mount	All	Board to Board Cable	Gold	0.1 in	2.54 mm	0.1 in	2.54 mm	General Purpose Industrial Medical Telecommunications
Amphenol ICC (FCI) 10129380-906001ALF	Black	Unshrouded	6	1 µin	0.025 µm	Solder	105 ░C	-55 °C	0.23 in		UL94 V-0	1	Cuttable Header	Thermoplastic	Square	3 A	Male Pin	Copper Alloy	Push-Pull	Surface Mount	All	Board to Board Cable	Gold	0.1 in	2.54 mm	0.1 in	2.54 mm	General Purpose Industrial Medical Telecommunications	5.84 mm
Amphenol ICC (FCI) 10129380-905002BLF	Black	Unshrouded		1 µin	0.025 µm	Solder	105 ░C	-55 °C	0.318 "	8.08 mm	UL94 V-0	1	Cuttable Header	Thermoplastic	Square	3 A	Male Pin	Copper Alloy	Push-Pull	Surface Mount	All	Board to Board Cable	Gold	0.1 in	2.54 mm	0.1 in	2.54 mm	General Purpose Industrial Medical Telecommunications
Amphenol ICC (FCI) 10129380-908001ALF	Black	Unshrouded	8	1 µin	0.025 µm	Solder	105 ░C	-55 °C	0.23 in		UL94 V-0	1	Cuttable Header	Thermoplastic	Square	3 A	Male Pin	Copper Alloy	Push-Pull	Surface Mount	All	Board to Board Cable	Gold	0.1 in	2.54 mm	0.1 in	2.54 mm	General Purpose Industrial Medical Telecommunications	5.84 mm
Amphenol ICC (FCI) 10129380-903002ALF	Black	Unshrouded		1 µin	0.025 µm	Solder	105 ░C	-55 °C	0.318 "	8.08 mm	UL94 V-0	1	Cuttable Header	Thermoplastic	Square	3 A	Male Pin	Copper Alloy	Push-Pull	Surface Mount	All	Board to Board Cable	Gold	0.1 in	2.54 mm	0.1 in	2.54 mm	General Purpose Industrial Medical Telecommunications
Amphenol ICC (FCI) 10129380-906002ALF	Black	Unshrouded	6	1 µin	0.025 µm	Solder	105 ░C	-55 °C	0.318 "	8.08 mm	UL94 V-0	1	Cuttable Header	Thermoplastic	Square	3 A	Male Pin	Copper Alloy	Push-Pull	Surface Mount	All	Board to Board Cable	Gold	0.1 in	2.54 mm	0.1 in	2.54 mm	General Purpose Industrial Medical Telecommunications
Amphenol ICC (FCI) 10129380-910001BLF	Black	Unshrouded	10	1 µin	0.025 µm	Solder	105 ░C	-55 °C	0.23 in		UL94 V-0	1	Cuttable Header	Thermoplastic	Square	3 A	Male Pin	Copper Alloy	Push-Pull	Surface Mount	All	Board to Board Cable	Gold	0.1 in	2.54 mm	0.1 in	2.54 mm	General Purpose Industrial Medical Telecommunications	5.84 mm
Amphenol ICC (FCI) 10129380-908001BLF	Black	Unshrouded	8	1 µin	0.025 µm	Solder	105 ░C	-55 °C	0.23 in		UL94 V-0	1	Cuttable Header	Thermoplastic	Square	3 A	Male Pin	Copper Alloy	Push-Pull	Surface Mount	All	Board to Board Cable	Gold	0.1 in	2.54 mm	0.1 in	2.54 mm	General Purpose Industrial Medical Telecommunications	5.84 mm
Amphenol ICC (FCI) 10129380-909002BLF	Black	Unshrouded	9	1 µin	0.025 µm	Solder	105 ░C	-55 °C	0.318 "	8.08 mm	UL94 V-0	1	Cuttable Header	Thermoplastic	Square	3 A	Male Pin	Copper Alloy	Push-Pull	Surface Mount	All	Board to Board Cable	Gold	0.1 in	2.54 mm	0.1 in	2.54 mm	General Purpose Industrial Medical Telecommunications
Amphenol ICC (FCI) 10129380-903001ALF	Black	Unshrouded		1 µin	0.025 µm	Solder	105 ░C	-55 °C	0.23 in		UL94 V-0	1	Cuttable Header	Thermoplastic	Square	3 A	Male Pin	Copper Alloy	Push-Pull	Surface Mount	All	Board to Board Cable	Gold	0.1 in	2.54 mm	0.1 in	2.54 mm	General Purpose Industrial Medical Telecommunications	5.84 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.14
		10	$ 0.12
		100	$ 0.10
	Digi-Reel®	1	$ 0.14
		10	$ 0.12
		100	$ 0.10
	Tape & Reel (TR)	300	$ 0.09
		600	$ 0.09
		900	$ 0.09
		1500	$ 0.08
		2100	$ 0.08
		3000	$ 0.08
		7500	$ 0.08
		15000	$ 0.07
		30000	$ 0.07
