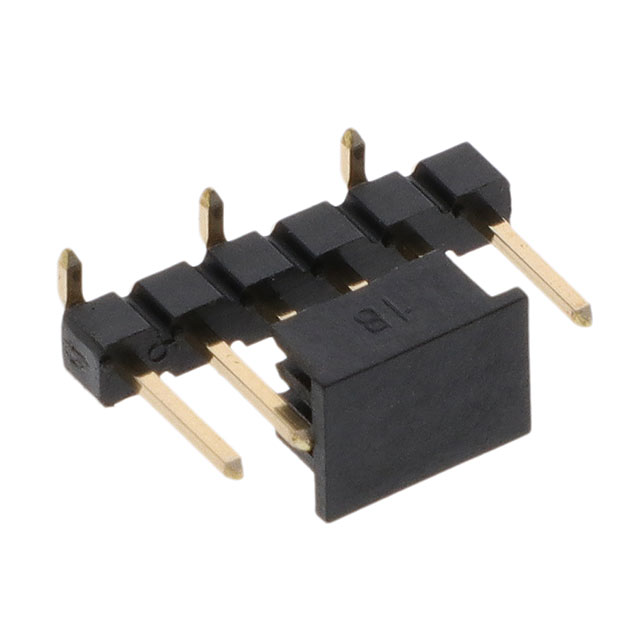

10129380-906001ALF
ActiveAmphenol ICC (FCI)
CONN HEADER SMD 6POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
10129380-906001ALF
ActiveAmphenol ICC (FCI)
CONN HEADER SMD 6POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10129380-906001ALF |
|---|---|
| Applications | Industrial, Medical, General Purpose, Telecommunications |
| Connector Type | Cuttable, Header |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 1 µin |
| Contact Finish Thickness - Mating | 0.025 µm |
| Contact Length - Mating | 5.84 mm |
| Contact Length - Mating [x] | 0.23 in |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.1 in |
| Insulation Height | 2.54 mm |
| Insulation Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Shrouding | Unshrouded |
| Style | Board to Board, Cable |
| Termination | Solder |
10129380 Series
| Part | Insulation Color | Shrouding | Number of Positions | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Contact Length - Mating [x] | Contact Length - Mating [x] | Material Flammability Rating | Number of Rows | Connector Type | Insulation Material | Contact Shape | Current Rating (Amps) | Contact Type | Contact Material | Fastening Type | Mounting Type | Number of Positions Loaded | Style | Contact Finish - Mating | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Applications | Contact Length - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | Black | Unshrouded | 2 | 1 µin | 0.025 µm | Solder | 105 ░C | -55 °C | 0.318 " | 8.08 mm | UL94 V-0 | 1 | Cuttable Header | Thermoplastic | Square | 3 A | Male Pin | Copper Alloy | Push-Pull | Surface Mount | All | Board to Board Cable | Gold | 0.1 in | 2.54 mm | 0.1 in | 2.54 mm | General Purpose Industrial Medical Telecommunications | |
Amphenol ICC (FCI) | Black | Unshrouded | 6 | 1 µin | 0.025 µm | Solder | 105 ░C | -55 °C | 0.23 in | UL94 V-0 | 1 | Cuttable Header | Thermoplastic | Square | 3 A | Male Pin | Copper Alloy | Push-Pull | Surface Mount | All | Board to Board Cable | Gold | 0.1 in | 2.54 mm | 0.1 in | 2.54 mm | General Purpose Industrial Medical Telecommunications | 5.84 mm | |
Amphenol ICC (FCI) | Black | Unshrouded | 1 µin | 0.025 µm | Solder | 105 ░C | -55 °C | 0.318 " | 8.08 mm | UL94 V-0 | 1 | Cuttable Header | Thermoplastic | Square | 3 A | Male Pin | Copper Alloy | Push-Pull | Surface Mount | All | Board to Board Cable | Gold | 0.1 in | 2.54 mm | 0.1 in | 2.54 mm | General Purpose Industrial Medical Telecommunications | ||
Amphenol ICC (FCI) | Black | Unshrouded | 8 | 1 µin | 0.025 µm | Solder | 105 ░C | -55 °C | 0.23 in | UL94 V-0 | 1 | Cuttable Header | Thermoplastic | Square | 3 A | Male Pin | Copper Alloy | Push-Pull | Surface Mount | All | Board to Board Cable | Gold | 0.1 in | 2.54 mm | 0.1 in | 2.54 mm | General Purpose Industrial Medical Telecommunications | 5.84 mm | |
Amphenol ICC (FCI) | Black | Unshrouded | 1 µin | 0.025 µm | Solder | 105 ░C | -55 °C | 0.318 " | 8.08 mm | UL94 V-0 | 1 | Cuttable Header | Thermoplastic | Square | 3 A | Male Pin | Copper Alloy | Push-Pull | Surface Mount | All | Board to Board Cable | Gold | 0.1 in | 2.54 mm | 0.1 in | 2.54 mm | General Purpose Industrial Medical Telecommunications | ||
Amphenol ICC (FCI) | Black | Unshrouded | 6 | 1 µin | 0.025 µm | Solder | 105 ░C | -55 °C | 0.318 " | 8.08 mm | UL94 V-0 | 1 | Cuttable Header | Thermoplastic | Square | 3 A | Male Pin | Copper Alloy | Push-Pull | Surface Mount | All | Board to Board Cable | Gold | 0.1 in | 2.54 mm | 0.1 in | 2.54 mm | General Purpose Industrial Medical Telecommunications | |
Amphenol ICC (FCI) | Black | Unshrouded | 10 | 1 µin | 0.025 µm | Solder | 105 ░C | -55 °C | 0.23 in | UL94 V-0 | 1 | Cuttable Header | Thermoplastic | Square | 3 A | Male Pin | Copper Alloy | Push-Pull | Surface Mount | All | Board to Board Cable | Gold | 0.1 in | 2.54 mm | 0.1 in | 2.54 mm | General Purpose Industrial Medical Telecommunications | 5.84 mm | |
Amphenol ICC (FCI) | Black | Unshrouded | 8 | 1 µin | 0.025 µm | Solder | 105 ░C | -55 °C | 0.23 in | UL94 V-0 | 1 | Cuttable Header | Thermoplastic | Square | 3 A | Male Pin | Copper Alloy | Push-Pull | Surface Mount | All | Board to Board Cable | Gold | 0.1 in | 2.54 mm | 0.1 in | 2.54 mm | General Purpose Industrial Medical Telecommunications | 5.84 mm | |
Amphenol ICC (FCI) | Black | Unshrouded | 9 | 1 µin | 0.025 µm | Solder | 105 ░C | -55 °C | 0.318 " | 8.08 mm | UL94 V-0 | 1 | Cuttable Header | Thermoplastic | Square | 3 A | Male Pin | Copper Alloy | Push-Pull | Surface Mount | All | Board to Board Cable | Gold | 0.1 in | 2.54 mm | 0.1 in | 2.54 mm | General Purpose Industrial Medical Telecommunications | |
Amphenol ICC (FCI) | Black | Unshrouded | 1 µin | 0.025 µm | Solder | 105 ░C | -55 °C | 0.23 in | UL94 V-0 | 1 | Cuttable Header | Thermoplastic | Square | 3 A | Male Pin | Copper Alloy | Push-Pull | Surface Mount | All | Board to Board Cable | Gold | 0.1 in | 2.54 mm | 0.1 in | 2.54 mm | General Purpose Industrial Medical Telecommunications | 5.84 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.34 | |
| 10 | $ 0.29 | |||
| Digi-Reel® | 1 | $ 0.34 | ||
| 10 | $ 0.29 | |||
| Tape & Reel (TR) | 185 | $ 0.24 | ||
| 370 | $ 0.23 | |||
| 555 | $ 0.22 | |||
| 925 | $ 0.21 | |||
| 1295 | $ 0.21 | |||
| 1850 | $ 0.20 | |||
| 4625 | $ 0.19 | |||
| 9250 | $ 0.18 | |||
| 18500 | $ 0.17 | |||
Description
General part information
10129380 Series
Connector Header Surface Mount 6 position 0.100" (2.54mm)
