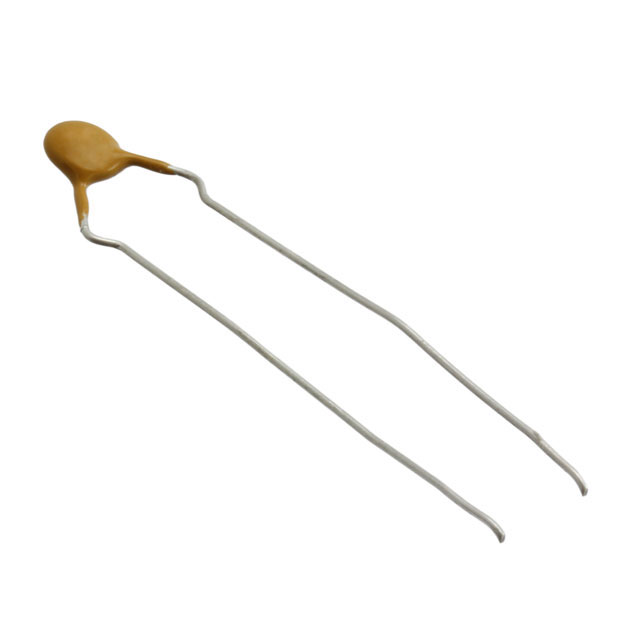

MF-R005-2

Active

Bourns Inc.

PTC RESETTABLE FUSE 0.05A(HOLD) 0.1A(TRIP) 60V 40A 0.22W 5S 7.3OHM RADIAL 8 X 3.1MM T/R AUTOMOTIVE AEC-Q200

Search across all available documentation for this part.

Active

Bourns Inc.

PTC RESETTABLE FUSE 0.05A(HOLD) 0.1A(TRIP) 60V 40A 0.22W 5S 7.3OHM RADIAL 8 X 3.1MM T/R AUTOMOTIVE AEC-Q200

Technical Specifications

Parameters and characteristics for this part

Specification	MF-R005-2

Approval Agency	cURus, TUV
Current - Hold (Ih) (Max) [Max]	50 mA
Current - Max [Max]	40 A
Current - Trip (It)	100 mA
Height - Seated (Max) [Max] [z]	8.3 mm
Height - Seated (Max) [Max] [z]	0.327 in
Lead Spacing	5.1 mm
Lead Spacing	0.201 in
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Disc, Radial
Resistance - Initial (Ri) (Min) [Min]	7.3 Ohms
Resistance - Post Trip (R1) (Max) [Max]	22 Ohms
Size / Dimension [custom]	3.1 mm
Size / Dimension [custom]	0.122 "
Size / Dimension [diameter]	8 mm
Size / Dimension [diameter]	0.315 "
Time to Trip	5 s
Type	Polymeric
Voltage - Max [Max]	60 V

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [custom]	Size / Dimension [custom]	Time to Trip	Lead Spacing	Lead Spacing	Package / Case	Type	Resistance - Initial (Ri) (Min) [Min]	Current - Trip (It)	Approval Agency	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Max [Max]	Resistance - Post Trip (R1) (Max) [Max]	Current - Max [Max]	Current - Hold (Ih) (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Bourns Inc. MF-R005-AP-99	8 mm	0.315 "	3.1 mm	0.122 "	5 s	5.1 mm	0.201 in	Disc Radial	Polymeric	7.3 Ohms	100 mA	cURus TUV	Through Hole	85 °C	-40 °C	60 V	22 Ohms	40 A	50 mA	8.3 mm	0.327 in
Bourns Inc. MF-R005-AP	8 mm	0.315 "	3.1 mm	0.122 "	5 s	5.1 mm	0.201 in	Disc Radial	Polymeric	7.3 Ohms	100 mA	cURus TUV	Through Hole	85 °C	-40 °C	60 V	22 Ohms	40 A	50 mA	8.3 mm	0.327 in
Bourns Inc. MF-R005-2	8 mm	0.315 "	3.1 mm	0.122 "	5 s	5.1 mm	0.201 in	Disc Radial	Polymeric	7.3 Ohms	100 mA	cURus TUV	Through Hole	85 °C	-40 °C	60 V	22 Ohms	40 A	50 mA	8.3 mm	0.327 in
Bourns Inc. MF-R005-2-99	8 mm	0.315 "	3.1 mm	0.122 "	5 s	5.1 mm	0.201 in	Disc Radial	Polymeric	7.3 Ohms	100 mA	cURus TUV	Through Hole	85 °C	-40 °C	60 V	22 Ohms	40 A	50 mA	8.3 mm	0.327 in
Bourns Inc. MF-R005-0-99	8 mm	0.315 "	3.1 mm	0.122 "	5 s	5.1 mm	0.201 in	Disc Radial	Polymeric	7.3 Ohms	100 mA	cURus TUV	Through Hole	85 °C	-40 °C	60 V	22 Ohms	40 A	50 mA	8.3 mm	0.327 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Polymeric PTC Resettable Fuse 60V 50 mA Ih Through Hole Radial, Disc
