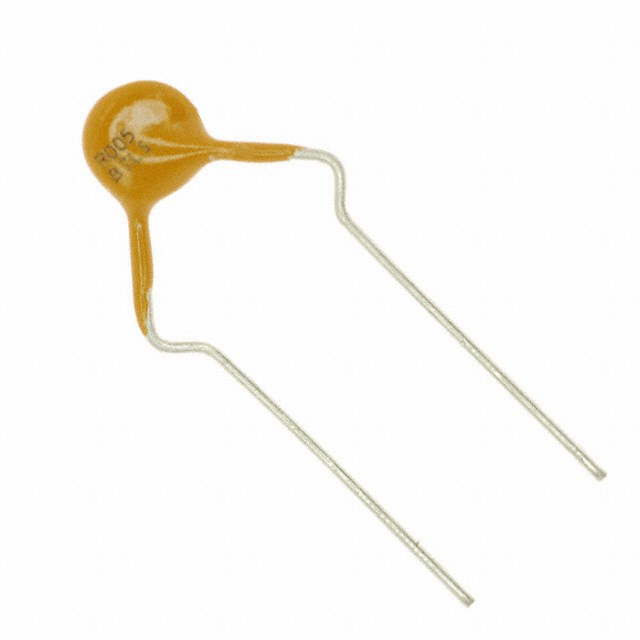

MF-R005 Series

Part	Approval Agency	Voltage - Max	Resistance - Post Trip (R1) (Max)	Time to Trip	Size / Dimension Thickness	Size / Dimension Diameter	Lead Spacing	Mounting Type	Type	Current - Hold (Ih) (Max)	Resistance - Initial (Ri) (Min)	Current - Max	Height - Seated (Max)	Operating Temperature (Min)	Operating Temperature (Max)	Current - Trip (It)	Package / Case
Bourns Inc. MF-R005-AP-99	cURus TUV	60 Vpk	22 Ohms	5 s	0.122 in	0.315 in	0.201 in	Through Hole	Polymeric	50 mA	7.3 Ohms	40 A	0.327 in	-40 °C	85 °C	100 mA	Disc Radial
Bourns Inc. MF-R005-AP	cURus TUV	60 Vpk	22 Ohms	5 s	0.122 in	0.315 in	0.201 in	Through Hole	Polymeric	50 mA	7.3 Ohms	40 A	0.327 in	-40 °C	85 °C	100 mA	Disc Radial
Bourns Inc. MF-R005-2	cURus TUV	60 Vpk	22 Ohms	5 s	0.122 in	0.315 in	0.201 in	Through Hole	Polymeric	50 mA	7.3 Ohms	40 A	0.327 in	-40 °C	85 °C	100 mA	Disc Radial
Bourns Inc. MF-R005-2-99	cURus TUV	60 Vpk	22 Ohms	5 s	0.122 in	0.315 in	0.201 in	Through Hole	Polymeric	50 mA	7.3 Ohms	40 A	0.327 in	-40 °C	85 °C	100 mA	Disc Radial
Bourns Inc. MF-R005-0-99	cURus TUV	60 Vpk	22 Ohms	5 s	0.122 in	0.315 in	0.201 in	Through Hole	Polymeric	50 mA	7.3 Ohms	40 A	0.327 in	-40 °C	85 °C	100 mA	Disc Radial
