746-102-520-206

Active

EDAC Inc.

CONN EDGE DUAL FML 102POS 0.125

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

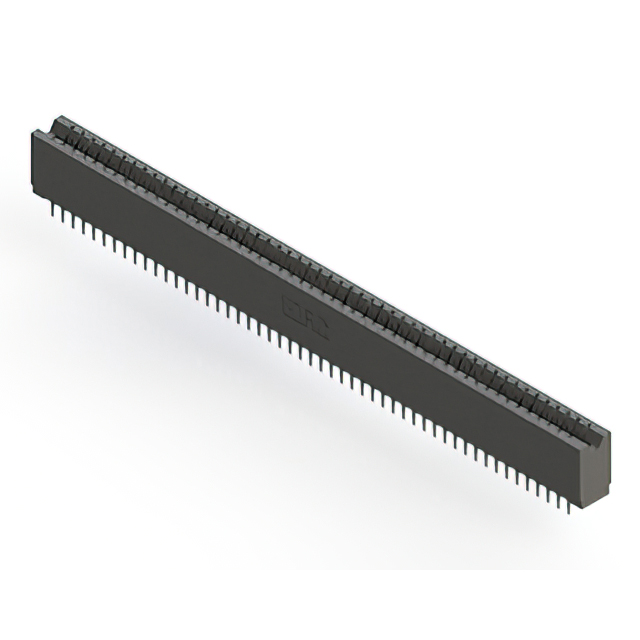

746-102-520-206

Active

EDAC Inc.

CONN EDGE DUAL FML 102POS 0.125

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	746-102-520-206

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	102
Number of Positions/Bay/Row [custom]	51
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Dual
Termination	Press-Fit
Termination Rows	2

746-102 Series

Part	Termination Rows	Read Out	Number of Rows	Number of Positions	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Type	Gender	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row [custom]	Termination	Card Type	Color	Material - Insulation	Contact Material	Mounting Type	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish
EDAC Inc. 746-102-525-601	2	Dual	2	102	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Female	0.76 Ám	30 Áin	51	Press-Fit	Non Specified - Dual Edge	Black	Polyester Thermoplastic	Copper Alloy	Through Hole	0.125 in	3.18 mm	-40 °C	105 ░C	Gold
EDAC Inc. 746-102-520-606	2	Dual	2	102	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Female	0.76 Ám	30 Áin	51	Press-Fit	Non Specified - Dual Edge	Black	Polyester Thermoplastic	Copper Alloy	Through Hole	0.125 in	3.18 mm	-40 °C	105 ░C	Gold
EDAC Inc. 746-102-540-601	2	Dual	2	102	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Female	0.76 Ám	30 Áin	51	Press-Fit Wire Wrap	Non Specified - Dual Edge	Black	Polyester Thermoplastic	Copper Alloy	Through Hole	0.125 in	3.18 mm	-40 °C	105 ░C	Gold
EDAC Inc. 746-102-541-201	2	Dual	2	102	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Female	0.76 Ám	30 Áin	51	Press-Fit Wire Wrap	Non Specified - Dual Edge	Black	Polyester Thermoplastic	Copper Alloy	Through Hole	0.125 in	3.18 mm	-40 °C	105 ░C	Gold
EDAC Inc. 746-102-553-206	2	Dual	2	102	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Female	0.76 Ám	30 Áin	51	Press-Fit Wire Wrap	Non Specified - Dual Edge	Black	Polyester Thermoplastic	Copper Alloy	Through Hole	0.125 in	3.18 mm	-40 °C	105 ░C	Gold
EDAC Inc. 746-102-553-201	2	Dual	2	102	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Female	0.76 Ám	30 Áin	51	Press-Fit Wire Wrap	Non Specified - Dual Edge	Black	Polyester Thermoplastic	Copper Alloy	Through Hole	0.125 in	3.18 mm	-40 °C	105 ░C	Gold
EDAC Inc. 746-102-540-206	2	Dual	2	102	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Female	0.76 Ám	30 Áin	51	Press-Fit Wire Wrap	Non Specified - Dual Edge	Black	Polyester Thermoplastic	Copper Alloy	Through Hole	0.125 in	3.18 mm	-40 °C	105 ░C	Gold
EDAC Inc. 746-102-545-201	2	Dual	2	102	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Female	0.76 Ám	30 Áin	51	Press-Fit Wire Wrap	Non Specified - Dual Edge	Black	Polyester Thermoplastic	Copper Alloy	Through Hole	0.125 in	3.18 mm	-40 °C	105 ░C	Gold
EDAC Inc. 746-102-553-606	2	Dual	2	102	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Female	0.76 Ám	30 Áin	51	Press-Fit Wire Wrap	Non Specified - Dual Edge	Black	Polyester Thermoplastic	Copper Alloy	Through Hole	0.125 in	3.18 mm	-40 °C	105 ░C	Gold
EDAC Inc. 746-102-520-206	2	Dual	2	102	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Female	0.76 Ám	30 Áin	51	Press-Fit	Non Specified - Dual Edge	Black	Polyester Thermoplastic	Copper Alloy	Through Hole	0.125 in	3.18 mm	-40 °C	105 ░C	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 14.51
Newark	Each	1	$ 13.40
		100	$ 9.14
		250	$ 8.22
		500	$ 8.00
		1000	$ 6.89

Description

General part information

746-102 Series

102 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black
