746-102-545-201
ActiveEDAC Inc.
CONN EDGE DUAL FML 102POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
746-102-545-201
ActiveEDAC Inc.
CONN EDGE DUAL FML 102POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 746-102-545-201 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 102 |
| Number of Positions/Bay/Row [custom] | 51 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Wire Wrap, Press-Fit |
| Termination Rows | 2 |
746-102 Series
| Part | Termination Rows | Read Out | Number of Rows | Number of Positions | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Type | Gender | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row [custom] | Termination | Card Type | Color | Material - Insulation | Contact Material | Mounting Type | Pitch [x] | Pitch [x] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | Dual | 2 | 102 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Female | 0.76 Ám | 30 Áin | 51 | Press-Fit | Non Specified - Dual Edge | Black | Polyester Thermoplastic | Copper Alloy | Through Hole | 0.125 in | 3.18 mm | -40 °C | 105 ░C | Gold |
EDAC Inc. | 2 | Dual | 2 | 102 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Female | 0.76 Ám | 30 Áin | 51 | Press-Fit | Non Specified - Dual Edge | Black | Polyester Thermoplastic | Copper Alloy | Through Hole | 0.125 in | 3.18 mm | -40 °C | 105 ░C | Gold |
EDAC Inc. | 2 | Dual | 2 | 102 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Female | 0.76 Ám | 30 Áin | 51 | Press-Fit Wire Wrap | Non Specified - Dual Edge | Black | Polyester Thermoplastic | Copper Alloy | Through Hole | 0.125 in | 3.18 mm | -40 °C | 105 ░C | Gold |
EDAC Inc. | 2 | Dual | 2 | 102 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Female | 0.76 Ám | 30 Áin | 51 | Press-Fit Wire Wrap | Non Specified - Dual Edge | Black | Polyester Thermoplastic | Copper Alloy | Through Hole | 0.125 in | 3.18 mm | -40 °C | 105 ░C | Gold |
EDAC Inc. | 2 | Dual | 2 | 102 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Female | 0.76 Ám | 30 Áin | 51 | Press-Fit Wire Wrap | Non Specified - Dual Edge | Black | Polyester Thermoplastic | Copper Alloy | Through Hole | 0.125 in | 3.18 mm | -40 °C | 105 ░C | Gold |
EDAC Inc. | 2 | Dual | 2 | 102 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Female | 0.76 Ám | 30 Áin | 51 | Press-Fit Wire Wrap | Non Specified - Dual Edge | Black | Polyester Thermoplastic | Copper Alloy | Through Hole | 0.125 in | 3.18 mm | -40 °C | 105 ░C | Gold |
EDAC Inc. | 2 | Dual | 2 | 102 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Female | 0.76 Ám | 30 Áin | 51 | Press-Fit Wire Wrap | Non Specified - Dual Edge | Black | Polyester Thermoplastic | Copper Alloy | Through Hole | 0.125 in | 3.18 mm | -40 °C | 105 ░C | Gold |
EDAC Inc. | 2 | Dual | 2 | 102 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Female | 0.76 Ám | 30 Áin | 51 | Press-Fit Wire Wrap | Non Specified - Dual Edge | Black | Polyester Thermoplastic | Copper Alloy | Through Hole | 0.125 in | 3.18 mm | -40 °C | 105 ░C | Gold |
EDAC Inc. | 2 | Dual | 2 | 102 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Female | 0.76 Ám | 30 Áin | 51 | Press-Fit Wire Wrap | Non Specified - Dual Edge | Black | Polyester Thermoplastic | Copper Alloy | Through Hole | 0.125 in | 3.18 mm | -40 °C | 105 ░C | Gold |
EDAC Inc. | 2 | Dual | 2 | 102 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Female | 0.76 Ám | 30 Áin | 51 | Press-Fit | Non Specified - Dual Edge | Black | Polyester Thermoplastic | Copper Alloy | Through Hole | 0.125 in | 3.18 mm | -40 °C | 105 ░C | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
746-102 Series

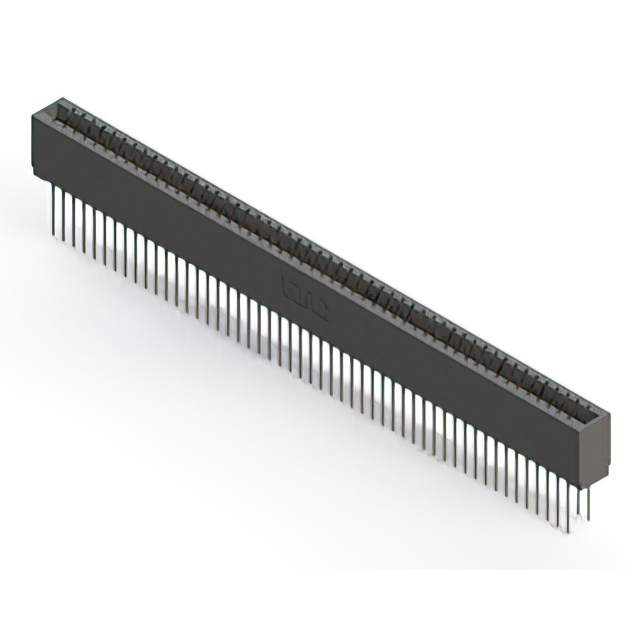

102 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black
