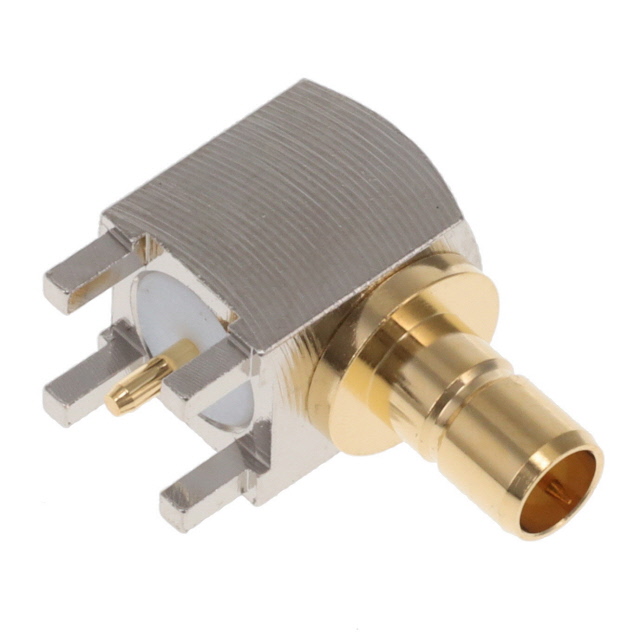

SMB7H-J-P-HN-RA-TH1

Active

Samtec Inc.

CONN SMB JACK R/A 75 OHM PCB

Search across all available documentation for this part.

Active

Samtec Inc.

CONN SMB JACK R/A 75 OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	SMB7H-J-P-HN-RA-TH1

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	75 Ohms
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	335 V

Part	Housing Color	Connector Type	Impedance	Center Contact Plating	Connector Style	Center Contact Material	Fastening Type	Contact Termination	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Number of Ports	Dielectric Material	Body Material	Mounting Type	Shield Termination	Voltage Rating
Samtec Inc. SMB7H-J-P-H-ST-EM1	Gold	Jack Male Pin	75 Ohms	Gold	SMB	Brass	Snap-On	Solder	Gold	-65 ░C	165 °C	4 GHz	1	Polytetrafluoroethylene (PTFE)	Brass	Board Edge End Launch	Solder	335 V
Samtec Inc. SMB7H-J-P-HN-RA-TH1	Silver	Jack Male Pin	75 Ohms	Gold	SMB	Brass	Snap-On	Solder	Nickel	-65 ░C	165 °C	4 GHz	1	Polytetrafluoroethylene (PTFE)	Brass	Through Hole Right Angle	Solder	335 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMB Connector Jack, Male Pin 75 Ohms Through Hole, Right Angle Solder
