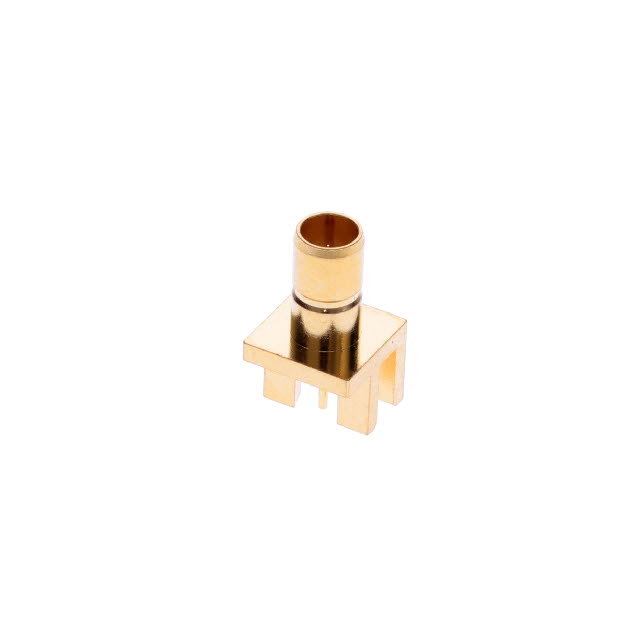

SMB7H-J-P-H-ST-EM1
ActiveSamtec Inc.
CONN SMB JACK STR 75OHM EDGEMNT
Deep-Dive with AI
Search across all available documentation for this part.
SMB7H-J-P-H-ST-EM1
ActiveSamtec Inc.
CONN SMB JACK STR 75OHM EDGEMNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SMB7H-J-P-H-ST-EM1 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | SMB |
| Connector Type | Male Pin, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 4 GHz |
| Housing Color | Gold |
| Impedance | 75 Ohms |
| Mounting Type | Board Edge, End Launch |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
| Voltage Rating | 335 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.08 | |
| 10 | $ 4.66 | |||
| 25 | $ 4.20 | |||
| 50 | $ 3.89 | |||
| 100 | $ 3.61 | |||
| 250 | $ 3.28 | |||
| 500 | $ 3.05 | |||
| 1000 | $ 2.85 | |||
| 2500 | $ 2.61 | |||
Description
General part information
SMB7H-J Series
SMB Connector Jack, Male Pin 75 Ohms Board Edge, End Launch Solder
