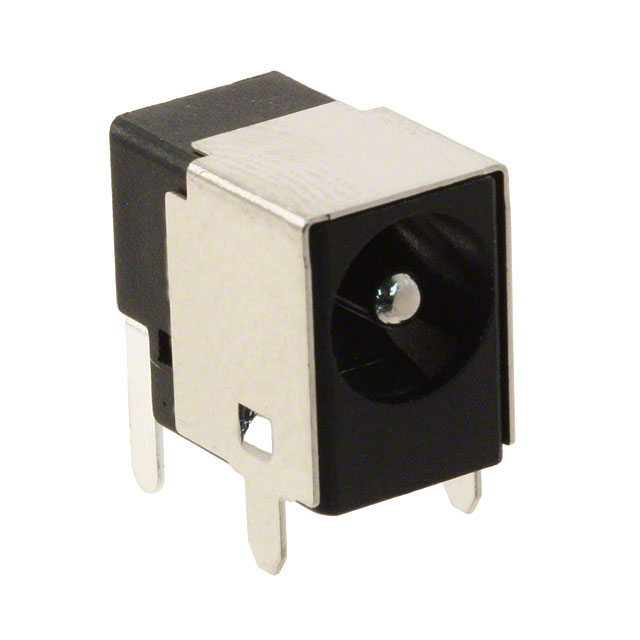

PJ-047AH

Active

CUI Devices

CONN DC POWER JACK RCP 2 POS SOLDER POT RA THRU-HOLE 3 TERMINAL 1 PORT

Search across all available documentation for this part.

Active

CUI Devices

CONN DC POWER JACK RCP 2 POS SOLDER POT RA THRU-HOLE 3 TERMINAL 1 PORT

Technical Specifications

Parameters and characteristics for this part

Specification	PJ-047AH

Actual Diameter [diameter]	0.236 ", 2 mm, 0.079 ", 6 mm
Body Color	Black
Connector Type	Jack
Contact Material	Copper Alloy, Brass
Contact Material - Plating [custom]	Silver, Nickel
Current Rating (Amps)	5 A
Features	Board Guide
Gender	Male
Housing Material	Polybutylene Terephthalate (PBT)
Industry Recognized Mating Diameter [diameter]	0.083 in, 0.217 "
Industry Recognized Mating Diameter [diameter]	5.5 mm, 2.1 mm
Internal Switch(s)	Single Switch, Normally Closed
Material Flammability Rating	UL94 V-0
Mating Length/Depth	0.327 in
Mating Length/Depth	8.3 mm
Mounting Type	Through Hole, Right Angle
Number of Positions/Contacts	3 Conductors, 2 Conductors
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shielding	Shielded
Termination	Solder
Voltage - Rated	24 VDC

Part	Mating Length/Depth [x]	Mating Length/Depth [x]	Shielding	Material Flammability Rating	Contact Material	Current Rating (Amps)	Actual Diameter [diameter]	Gender	Termination	Connector Type	Body Color	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions/Contacts	Contact Material - Plating [custom]	Voltage - Rated	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Features	Internal Switch(s)	Housing Material	Mounting Type	Mating Length/Depth	Mating Length/Depth
CUI Devices PJ-047A	8.2 mm	0.323 in	Shielded	UL94 V-0	Brass Stainless Steel	2.5 A	0.079 " 0.236 " 2 mm 6 mm	Male	Solder	Jack	Black	-25 °C	85 °C	2 Conductors 3 Conductors	Silver	24 VDC	0.083 in 0.217 "	2.1 mm 5.5 mm	Board Guide	Normally Closed Single Switch	Polybutylene Terephthalate (PBT)	Through Hole Right Angle
CUI Devices PJ-047AH			Shielded	UL94 V-0	Brass Copper Alloy	5 A	0.079 " 0.236 " 2 mm 6 mm	Male	Solder	Jack	Black	-25 °C	85 °C	2 Conductors 3 Conductors	Nickel Silver	24 VDC	0.083 in 0.217 "	2.1 mm 5.5 mm	Board Guide	Normally Closed Single Switch	Polybutylene Terephthalate (PBT)	Through Hole Right Angle	0.327 in	8.3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Barrel Connector Jack 2.10mm ID (0.083"), 5.50mm OD (0.217") Through Hole, Right Angle
