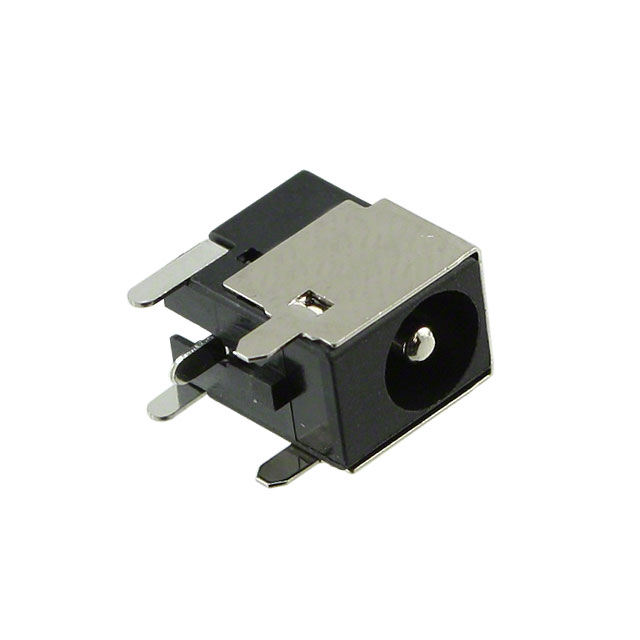

PJ-047A
ActiveCUI Devices
CONN PWR JACK 2X5.5MM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PJ-047A
ActiveCUI Devices
CONN PWR JACK 2X5.5MM SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PJ-047A |
|---|---|
| Actual Diameter [diameter] | 0.236 ", 2 mm, 0.079 ", 6 mm |
| Body Color | Black |
| Connector Type | Jack |
| Contact Material | Brass, Stainless Steel |
| Contact Material - Plating [custom] | Silver |
| Current Rating (Amps) | 2.5 A |
| Features | Board Guide |
| Gender | Male |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Industry Recognized Mating Diameter [diameter] | 0.083 in, 0.217 " |
| Industry Recognized Mating Diameter [diameter] | 5.5 mm, 2.1 mm |
| Internal Switch(s) | Single Switch, Normally Closed |
| Material Flammability Rating | UL94 V-0 |
| Mating Length/Depth [x] | 8.2 mm |
| Mating Length/Depth [x] | 0.323 in |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions/Contacts | 3 Conductors, 2 Conductors |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shielding | Shielded |
| Termination | Solder |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 0.94 | |
| 10 | $ 0.79 | |||
| 25 | $ 0.76 | |||
| 40 | $ 0.74 | |||
| 80 | $ 0.71 | |||
| 230 | $ 0.65 | |||
| 500 | $ 0.58 | |||
| 1000 | $ 0.52 | |||
| 2500 | $ 0.47 | |||
Description
General part information
PJ-047 Series
Power Barrel Connector Jack 2.10mm ID (0.083"), 5.50mm OD (0.217") Through Hole, Right Angle
