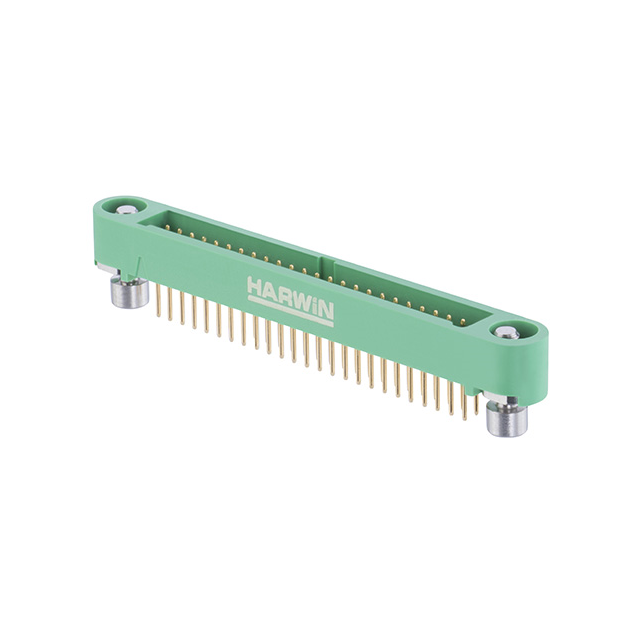

Specification	G125-MV15005M3R

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	8 µin
Contact Finish Thickness - Post	8 µin
Contact Length - Post	0.118 in
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Current Rating	2 A
Fastening Type	Threaded
Features	Mounting Flange, Mating Flange, Polarizing Key, Pick and Place
Insulation Color	Green
Insulation Height	0.193 in
Insulation Material	Halogen Free, Polyamide (PA4T), Nylon 4T, Glass Filled
Mated Stacking Height Options	7.33mm, 7.25mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-65 °C
Pitch - Mating	0.049 in
Row Spacing - Mating	0.049 in
Shrouding	Shrouded - 4 Wall
Style	Board, Board or Cable
Termination	Solder
Voltage Rating	450 VAC

G125-MV1 Series

Part	Number of Positions Loaded	Operating Temperature (Min)	Operating Temperature (Max)	Number of Positions	Contact Length - Post	Number of Rows	Pitch - Mating	Shrouding	Contact Finish - Mating	Contact Material	Insulation Height	Fastening Type	Contact Type	Features	Style	Row Spacing - Mating	Connector Type	Insulation Color	Material Flammability Rating	Termination	Contact Finish Thickness - Mating	Current Rating (Per Contact)	Insulation Material	Contact Shape	Mounting Type	Mated Stacking Height Options	Current Rating	Contact Finish - Post	Voltage Rating	Contact Finish Thickness - Post
Harwin Inc. G125-MV11005L0R	All	-65 °C	150 °C	10	0.118 in	2	0.049 in	Shrouded - 4 Wall	Gold	Phosphor Bronze	0.193 in	Push-Pull	Male Pin	Board Lock Pick and Place	Board Board or Cable	0.049 in	Header	Green	UL94 V-0	Solder	8 µin	2 A	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Circular	Through Hole	7.25mm 7.35mm 7.7mm
Harwin Inc. G125-MV13405L1P	All	-65 °C	150 °C	34	0.118 in	2	0.049 in	Shrouded - 4 Wall	Gold	Phosphor Bronze	0.193 in	Latch Lock	Male Pin	Board Lock Pick and Place	Board Board or Cable	0.049 in	Header	Green	UL94 V-0	Solder	8 µin	2 A	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Circular	Through Hole	7.25mm 7.35mm 7.7mm
Harwin Inc. G125-MV15005L1P	All	-65 °C	150 °C	50	0.118 in	2	0.049 in	Shrouded - 4 Wall	Gold	Phosphor Bronze	0.193 in	Latch Lock	Male Pin	Board Lock Pick and Place	Board Board or Cable	0.049 in	Header	Green	UL94 V-0	Solder	8 µin	2 A	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Circular	Through Hole	7.25mm 7.35mm 7.7mm
Harwin Inc. G125-MV11605M2P	All	-65 °C	150 °C	16	0.118 in	2	0.049 in	Shrouded - 4 Wall	Gold	Phosphor Bronze	0.193 in	Threaded	Male Pin	Mating Flange Mounting Flange Pick and Place	Board Board or Cable	0.049 in	Header	Green	UL94 V-0	Solder	8 µin		Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Circular	Through Hole		2 A
Harwin Inc. G125-MV12005L1P	All	-65 °C	150 °C	20	0.118 in	2	0.049 in	Shrouded - 4 Wall	Gold	Phosphor Bronze	0.193 in	Latch Lock	Male Pin	Board Lock Pick and Place	Board Board or Cable	0.049 in	Header	Green	UL94 V-0	Solder	8 µin	2 A	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Circular	Through Hole	7.25mm 7.35mm 7.7mm
Harwin Inc. G125-MV11205M3P	All	-65 °C	150 °C	12	0.118 in	2	0.049 in	Shrouded - 4 Wall	Gold	Phosphor Bronze	0.193 in	Screw Lock	Male Pin	Mating Flange Mounting Flange Pick and Place	Board Board or Cable	0.049 in	Header	Green	UL94 V-0	Solder	8 µin		Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Circular	Through Hole	7.25mm 7.33mm	2 A	Gold	450 VAC	8 µin
Harwin Inc. G125-MV10605M3R	All	-65 °C	150 °C	6	0.118 in	2	0.049 in	Shrouded - 4 Wall	Gold	Phosphor Bronze	0.193 in	Threaded	Male Pin	Mating Flange Mounting Flange Pick and Place Polarizing Key	Board Board or Cable	0.049 in	Header	Green	UL94 V-0	Solder	8 µin		Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Circular	Through Hole	7.25mm 7.33mm	2 A	Gold	450 VAC	8 µin
Harwin Inc. G125-MV11005L1P	All	-65 °C	150 °C	10	0.118 in	2	0.049 in	Shrouded - 4 Wall	Gold	Phosphor Bronze	0.193 in	Latch Lock	Male Pin	Board Lock Pick and Place	Board Board or Cable	0.049 in	Header	Green	UL94 V-0	Solder	8 µin	2 A	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Circular	Through Hole	7.25mm 7.35mm 7.7mm
Harwin Inc. G125-MV15005M2P	All	-65 °C	150 °C	50	0.118 in	2	0.049 in	Shrouded - 4 Wall	Gold	Phosphor Bronze	0.193 in	Threaded	Male Pin	Mating Flange Mounting Flange Pick and Place	Board Board or Cable	0.049 in	Header	Green	UL94 V-0	Solder	8 µin	2 A	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Circular	Through Hole	7.35mm 7.45mm 7.8mm			450 VAC
Harwin Inc. G125-MV11005L0P	All	-65 °C	150 °C	10	0.118 in	2	0.049 in	Shrouded - 4 Wall	Gold	Phosphor Bronze	0.193 in	Push-Pull	Male Pin	Board Lock Pick and Place	Board Board or Cable	0.049 in	Header	Green	UL94 V-0	Solder	8 µin	2 A	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Circular	Through Hole	7.25mm 7.35mm 7.7mm
