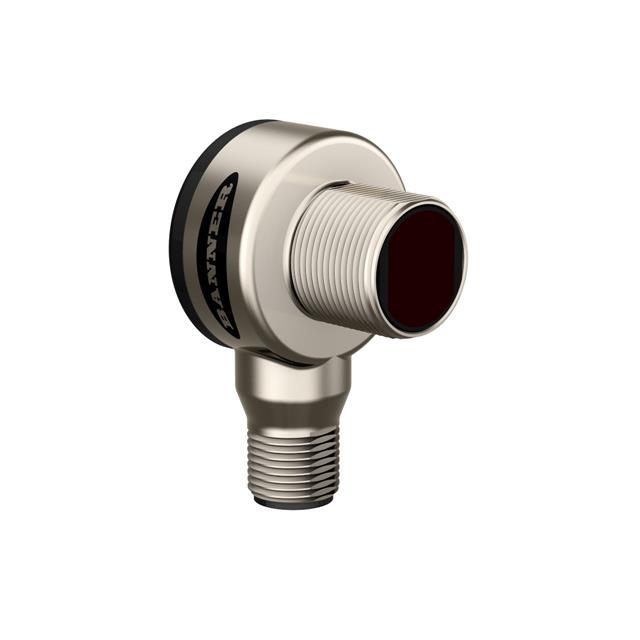

TM18VP6LPQ8

Active

BANNER ENGINEERING

EZ BEAM TM18: POLARIZED RETROREFLECTIVE

Search across all available documentation for this part.

Active

BANNER ENGINEERING

EZ BEAM TM18: POLARIZED RETROREFLECTIVE

Technical Specifications

Parameters and characteristics for this part

Part	Output Configuration	Connection Method	Response Time	Light Source	Ingress Protection	Sensing Distance	Sensing Distance	Sensing Method	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Min]	Operating Temperature [Max]
BANNER ENGINEERING TM18VP6FF100Q5	PNP	Connector	3 ms	Red (660nm)	IEC IP67 IEC IP69K	3.937 in	100 mm	Reflective	30 VDC	10 VDC	-40 °C	70 °C
BANNER ENGINEERING TM18VP6FF100IRQ8	PNP - Dark-ON/Light-ON - Selectable	Connector	3 ms	Infrared (870nm)	IEC IP69K NEMA 6P	3.937 in	100 mm	Background Suppression	30 VDC	10 VDC	-40 °C	70 °C
BANNER ENGINEERING TM18VP6DVQ8	PNP	Connector	3 ms	Red (660nm)	IEC IP67 IEC IP69K	19.685 in	50 cm	Diffuse	30 VDC	10 VDC	-40 °C	70 °C
BANNER ENGINEERING TM18VP6FF25Q8	PNP - Dark-ON/Light-ON - Selectable	Connector	3 ms	Red (660nm)	IEC IP69K NEMA 6P	0.98 in	25 mm	Background Suppression	30 VDC	10 VDC	-40 °C	70 °C
BANNER ENGINEERING TM18VP6LPQ8	PNP	Connector	3 ms	Red (624nm)	IEC IP67 IEC IP69K	18.04 ft	5.5 m	Retroreflective	30 VDC	10 VDC	-40 °C	70 °C
BANNER ENGINEERING TM18VP6RQ8	PNP	Connector	1.5 ms		IEC IP67 IEC IP69K	787.402 in	20 m	Through-Beam	30 VDC	10 VDC	-40 °C	70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 124.00
Newark	Each	1	$ 124.00

General part information

Retroreflective Optical Sensor 18.04' (5.5m) PNP
