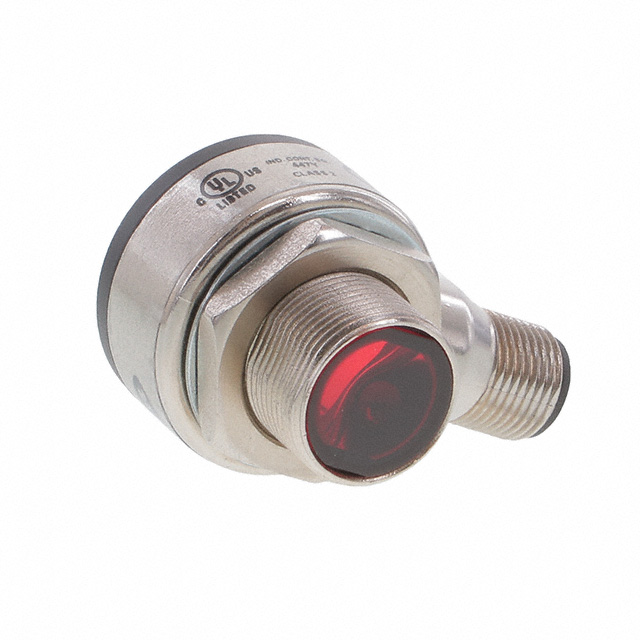

TM18VP6RQ8

Active

BANNER ENGINEERING

PHOTO SEN RECEIVER 20M PNP

Search across all available documentation for this part.

Active

BANNER ENGINEERING

PHOTO SEN RECEIVER 20M PNP

Technical Specifications

Parameters and characteristics for this part

Part	Output Configuration	Connection Method	Response Time	Light Source	Ingress Protection	Sensing Distance	Sensing Distance	Sensing Method	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Min]	Operating Temperature [Max]
BANNER ENGINEERING TM18VP6FF100Q5	PNP	Connector	3 ms	Red (660nm)	IEC IP67 IEC IP69K	3.937 in	100 mm	Reflective	30 VDC	10 VDC	-40 °C	70 °C
BANNER ENGINEERING TM18VP6FF100IRQ8	PNP - Dark-ON/Light-ON - Selectable	Connector	3 ms	Infrared (870nm)	IEC IP69K NEMA 6P	3.937 in	100 mm	Background Suppression	30 VDC	10 VDC	-40 °C	70 °C
BANNER ENGINEERING TM18VP6DVQ8	PNP	Connector	3 ms	Red (660nm)	IEC IP67 IEC IP69K	19.685 in	50 cm	Diffuse	30 VDC	10 VDC	-40 °C	70 °C
BANNER ENGINEERING TM18VP6FF25Q8	PNP - Dark-ON/Light-ON - Selectable	Connector	3 ms	Red (660nm)	IEC IP69K NEMA 6P	0.98 in	25 mm	Background Suppression	30 VDC	10 VDC	-40 °C	70 °C
BANNER ENGINEERING TM18VP6LPQ8	PNP	Connector	3 ms	Red (624nm)	IEC IP67 IEC IP69K	18.04 ft	5.5 m	Retroreflective	30 VDC	10 VDC	-40 °C	70 °C
BANNER ENGINEERING TM18VP6RQ8	PNP	Connector	1.5 ms		IEC IP67 IEC IP69K	787.402 in	20 m	Through-Beam	30 VDC	10 VDC	-40 °C	70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 97.00
Newark	Each	1	$ 97.00

General part information

Through-Beam Optical Sensor 787.402" (20m) PNP
