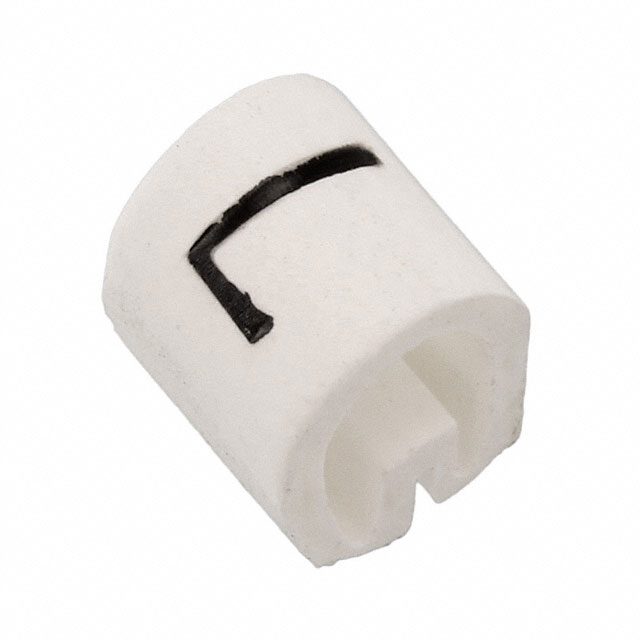

EC0705-000
ActiveTE Connectivity Raychem Cable Protection
06163921
Deep-Dive with AI
Search across all available documentation for this part.
EC0705-000
ActiveTE Connectivity Raychem Cable Protection
06163921
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EC0705-000 |
|---|---|
| Cable Diameter [Max] [diameter] | 0.185 in |
| Cable Diameter [Max] [diameter] | 4.7 mm |
| Cable Diameter [Min] [diameter] | 2.9 mm |
| Cable Diameter [Min] [diameter] | 0.114 in |
| Color | White |
| Legend | L |
| Material | Poly-Vinyl Chloride (PVC) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -45 °C |
| Size [x] | 0.18 in |
| Size [x] | 4.5 mm |
| Type | Wire Marker, Push On |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.10 | |
| 10 | $ 0.05 | |||
| 25 | $ 0.04 | |||
| 50 | $ 0.04 | |||
| 100 | $ 0.04 | |||
| 250 | $ 0.03 | |||
| 500 | $ 0.03 | |||
| Spool | 10000 | $ 0.02 | ||
Description
General part information
EC07 Series
Push-On Pre-Printed Marker, 11 Size, White, Straight Cut, L Marking, 4.5 mm [.177 in] Width, Black Print, Flexible PVC, Z-Type Marker
