EC0787-000

Active

TE Connectivity Raychem Cable Protection

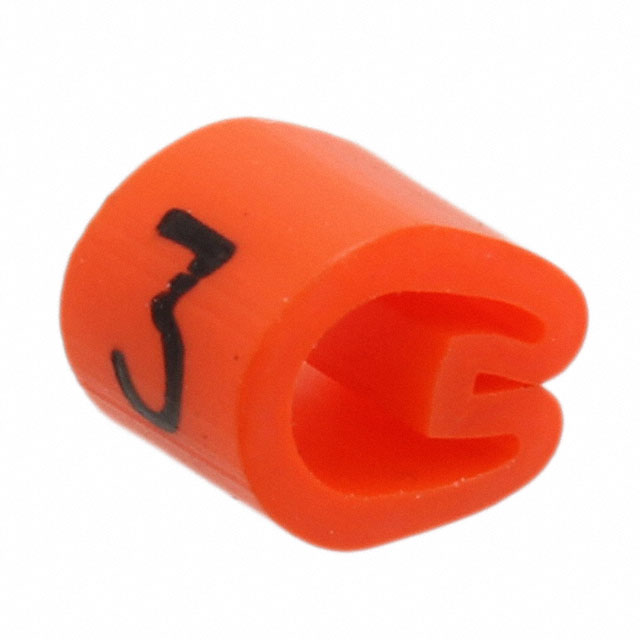

WIRE MARKER PUSH ON 4.5MM ORANGE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EC0787-000

Active

TE Connectivity Raychem Cable Protection

WIRE MARKER PUSH ON 4.5MM ORANGE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EC0787-000

Cable Diameter [Max] [diameter]	5.7 mm
Cable Diameter [Max] [diameter]	0.224 in
Cable Diameter [Min] [diameter]	0.134 in
Cable Diameter [Min] [diameter]	3.4 mm
Legend	3
Material	Poly-Vinyl Chloride (PVC)
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-45 °C
Size [x]	0.18 in
Size [x]	4.5 mm
Type	Wire Marker, Push On

EC07 Series

Part	Cable Diameter [Min] [diameter]	Cable Diameter [Max] [diameter]	Cable Diameter [Min] [diameter]	Cable Diameter [Max] [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Material	Color	Legend	Size [x]	Size [x]	Type	Cable Diameter [Max] [diameter]	Legend
TE Connectivity Raychem Cable Protection EC0704-000	2.9 mm	0.185 in	0.114 in	4.7 mm	-45 °C	70 °C	Poly-Vinyl Chloride (PVC)	White	K	0.18 in	4.5 mm	Wire Marker Push On
TE Connectivity Raychem Cable Protection EC0706-000	2.9 mm	0.185 in	0.114 in	4.7 mm	-45 °C	70 °C	Poly-Vinyl Chloride (PVC)	White	M	0.18 in	4.5 mm	Wire Marker Push On
TE Connectivity Raychem Cable Protection EC0717-000	2.9 mm	0.185 in	0.114 in	4.7 mm	-45 °C	70 °C	Poly-Vinyl Chloride (PVC)	White	X	0.18 in	4.5 mm	Wire Marker Push On
TE Connectivity Raychem Cable Protection EC0725-000	2.9 mm	0.185 in	0.114 in	4.7 mm	-45 °C	70 °C	Poly-Vinyl Chloride (PVC)	White	)	0.18 in	4.5 mm	Wire Marker Push On
TE Connectivity Raychem Cable Protection EC0787-000	3.4 mm	0.224 in	0.134 in		-45 °C	70 °C	Poly-Vinyl Chloride (PVC)		3	0.18 in	4.5 mm	Wire Marker Push On	5.7 mm
TE Connectivity Raychem Cable Protection EC0712-000	2.9 mm	0.185 in	0.114 in	4.7 mm	-45 °C	70 °C	Poly-Vinyl Chloride (PVC)	White	S	0.18 in	4.5 mm	Wire Marker Push On
TE Connectivity Raychem Cable Protection EC0713-000	2.9 mm	0.185 in	0.114 in	4.7 mm	-45 °C	70 °C	Poly-Vinyl Chloride (PVC)	White	T	0.18 in	4.5 mm	Wire Marker Push On
TE Connectivity Raychem Cable Protection EC0783-000	3.4 mm	0.224 in	0.134 in		-45 °C	70 °C	Poly-Vinyl Chloride (PVC)	Black		0.18 in	4.5 mm	Wire Marker Push On	5.7 mm	0
TE Connectivity Raychem Cable Protection EC0705-000	2.9 mm	0.185 in	0.114 in	4.7 mm	-45 °C	70 °C	Poly-Vinyl Chloride (PVC)	White	L	0.18 in	4.5 mm	Wire Marker Push On
TE Connectivity Raychem Cable Protection EC0703-000	2.9 mm	0.185 in	0.114 in	4.7 mm	-45 °C	70 °C	Poly-Vinyl Chloride (PVC)	White	J	0.18 in	4.5 mm	Wire Marker Push On

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.10
		10	$ 0.03
		25	$ 0.03
		50	$ 0.03
		100	$ 0.03
		250	$ 0.03
		500	$ 0.02
		1000	$ 0.02
		3000	$ 0.02

Description

General part information

EC07 Series

Wire Marker, Push On 0.18" L (4.5mm) Orange Poly-Vinyl Chloride (PVC)
