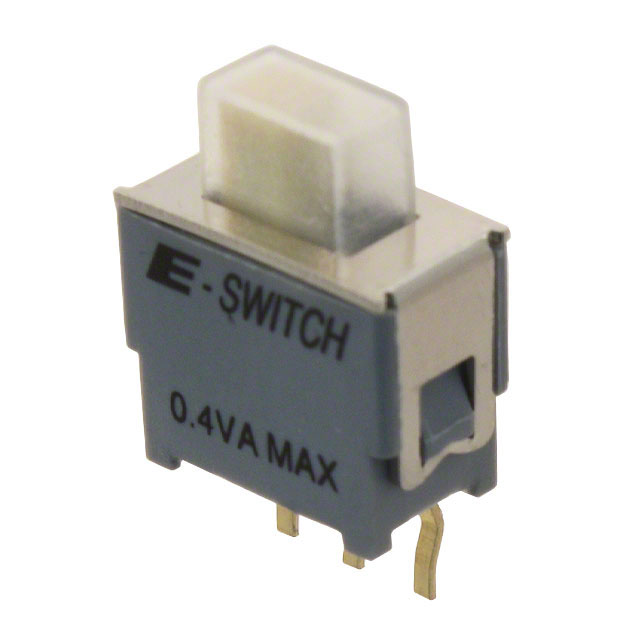

500RSP1S1M2RE

Active

E-Switch

SWITCH: SLIDE; POS: 2; SPDT; 0.02A/20VAC; 0.02A/20VDC; ON-ON; THT

Search across all available documentation for this part.

Active

E-Switch

SWITCH: SLIDE; POS: 2; SPDT; 0.02A/20VAC; 0.02A/20VDC; ON-ON; THT

Technical Specifications

Parameters and characteristics for this part

Part	Electrical Life	Mounting Type	Contact Timing	Mechanical Life	Switch Function	Voltage Rating - DC	Operating Force	Switch Travel	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Circuit	Features	Actuator Length [x]	Termination Style	Voltage Rating - AC
E-Switch 500RDP1S1M2RE	40000 Cycles	Through Hole	Not Specified	40000 Cycles	On-On	20 V	200 gf	1.9 mm	Standard	-20 C	80 C	0.4 VA	DPDT	Epoxy Sealed Terminals IP57	2.8 mm	PC Pin	20 V
E-Switch 500RSP1S1M2RE	40000 Cycles	Through Hole	Not Specified	40000 Cycles	On-On	20 V	200 gf	1.9 mm	Standard	-20 C	80 C	0.4 VA	SPDT	Epoxy Sealed Terminals IP57	2.8 mm	PC Pin	20 V
E-Switch 500RSP1S1M6RE	40000 Cycles	Through Hole Right Angle	Not Specified	40000 Cycles	On-On	20 V	200 gf	1.9 mm	Standard	-20 C	80 C	0.4 VA	SPDT	Epoxy Sealed Terminals IP57	2.8 mm	PC Pin	20 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Slide Switch SPDT Through Hole

Technical documentation and resources

No documents available
