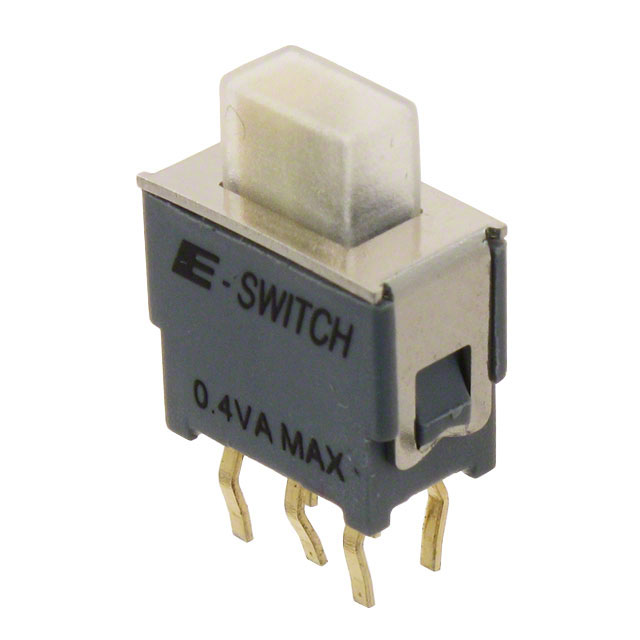

500RDP1S1M2RE

Active

E-Switch

SWITCH: SLIDE; POS: 2; DPDT; 0.02A/20VAC; 0.02A/20VDC; ON-ON; THT

Search across all available documentation for this part.

Active

E-Switch

SWITCH: SLIDE; POS: 2; DPDT; 0.02A/20VAC; 0.02A/20VDC; ON-ON; THT

Technical Specifications

Parameters and characteristics for this part

Part	Electrical Life	Mounting Type	Contact Timing	Mechanical Life	Switch Function	Voltage Rating - DC	Operating Force	Switch Travel	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Circuit	Features	Actuator Length [x]	Termination Style	Voltage Rating - AC
E-Switch 500RDP1S1M2RE	40000 Cycles	Through Hole	Not Specified	40000 Cycles	On-On	20 V	200 gf	1.9 mm	Standard	-20 C	80 C	0.4 VA	DPDT	Epoxy Sealed Terminals IP57	2.8 mm	PC Pin	20 V
E-Switch 500RSP1S1M2RE	40000 Cycles	Through Hole	Not Specified	40000 Cycles	On-On	20 V	200 gf	1.9 mm	Standard	-20 C	80 C	0.4 VA	SPDT	Epoxy Sealed Terminals IP57	2.8 mm	PC Pin	20 V
E-Switch 500RSP1S1M6RE	40000 Cycles	Through Hole Right Angle	Not Specified	40000 Cycles	On-On	20 V	200 gf	1.9 mm	Standard	-20 C	80 C	0.4 VA	SPDT	Epoxy Sealed Terminals IP57	2.8 mm	PC Pin	20 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	252	$ 3.16
TME	N/A	252	$ 6.14

General part information

Slide Switch DPDT Through Hole

Technical documentation and resources

No documents available
