31-217

Active

Amphenol RF

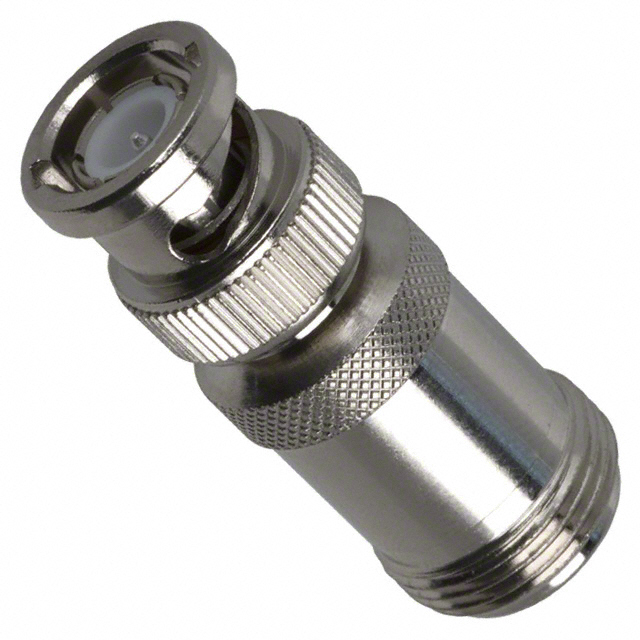

CONN ADAPT BNC PLUG TO N JACK

Search across all available documentation for this part.

Active

Amphenol RF

CONN ADAPT BNC PLUG TO N JACK

Technical Specifications

Parameters and characteristics for this part

Specification	31-217

Adapter Series	BNC to N
Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Silver
Conversion Type	Between Series
Convert From (Adapter End)	BNC Plug, Male Pin
Convert To (Adapter End)	Female Socket, N Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock, Threaded
Frequency - Max [Max]	11 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Fastening Type	Adapter Series	Adapter Type	Impedance	Frequency - Max [Max]	Convert To (Adapter End)	Conversion Type	Convert From (Adapter End)	Mounting Type	Style	Mating Cycles	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Center Contact Plating	Dielectric Material	Center Contact Material
Amphenol RF 31-217-RFX	Bayonet Lock Threaded	BNC to N	Plug to Jack	50 Ohms	4 GHz	Female Socket N Jack	Between Series	BNC Plug Male Pin	Free Hanging (In-Line)	Straight
Amphenol RF 31-217	Bayonet Lock Threaded	BNC to N	Plug to Jack	50 Ohms	11 GHz	Female Socket N Jack	Between Series	BNC Plug Male Pin	Free Hanging (In-Line)	Straight	500	Nickel	-65 ░C	165 °C	Brass	Silver	Polytetrafluoroethylene (PTFE)	Beryllium Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector BNC Plug, Male Pin To N Jack, Female Socket 50 Ohms
