31-217-RFX

Active

Amphenol RF

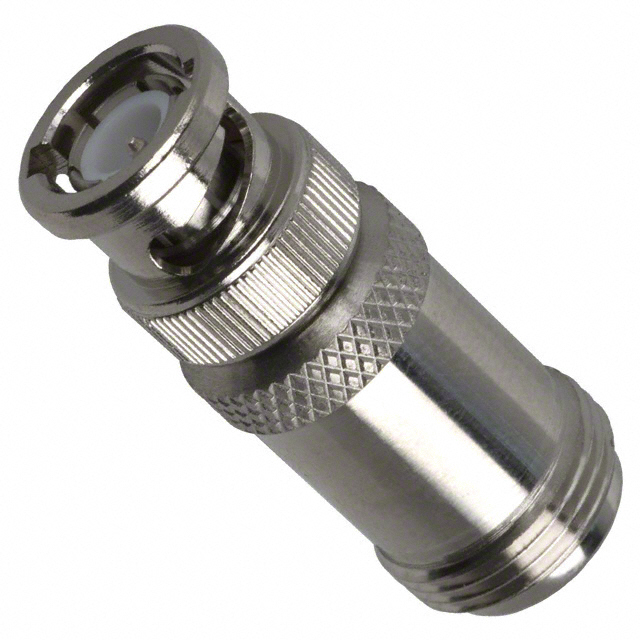

CONN ADAPT BNC PLUG TO N JACK

Search across all available documentation for this part.

Active

Amphenol RF

CONN ADAPT BNC PLUG TO N JACK

Technical Specifications

Parameters and characteristics for this part

Part	Fastening Type	Adapter Series	Adapter Type	Impedance	Frequency - Max [Max]	Convert To (Adapter End)	Conversion Type	Convert From (Adapter End)	Mounting Type	Style	Mating Cycles	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Center Contact Plating	Dielectric Material	Center Contact Material
Amphenol RF 31-217-RFX	Bayonet Lock Threaded	BNC to N	Plug to Jack	50 Ohms	4 GHz	Female Socket N Jack	Between Series	BNC Plug Male Pin	Free Hanging (In-Line)	Straight
Amphenol RF 31-217	Bayonet Lock Threaded	BNC to N	Plug to Jack	50 Ohms	11 GHz	Female Socket N Jack	Between Series	BNC Plug Male Pin	Free Hanging (In-Line)	Straight	500	Nickel	-65 ░C	165 °C	Brass	Silver	Polytetrafluoroethylene (PTFE)	Beryllium Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 46.96

General part information

Adapter Coaxial Connector BNC Plug, Male Pin To N Jack, Female Socket 50 Ohms

Technical documentation and resources

No documents available
