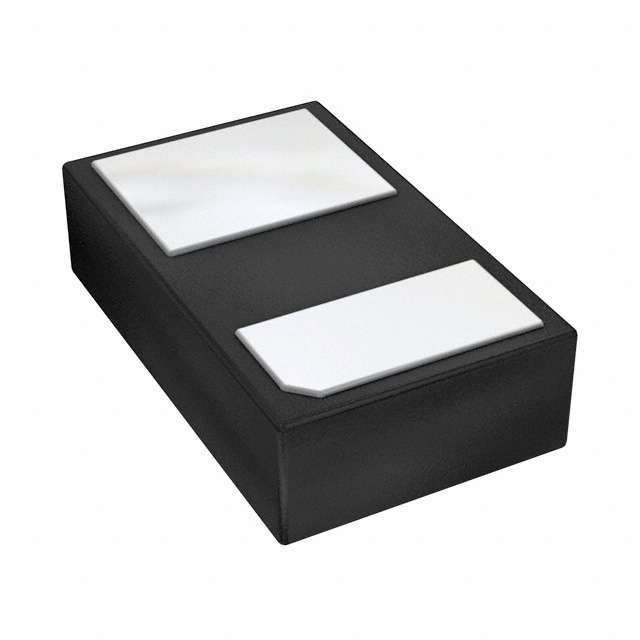

SDM1A30CSP-7
ObsoleteDiodes Inc
1A SCHOTTKY BARRIER RECTIFER CHIP SCALE PACKAGE
Deep-Dive with AI
Search across all available documentation for this part.
SDM1A30CSP-7
ObsoleteDiodes Inc
1A SCHOTTKY BARRIER RECTIFER CHIP SCALE PACKAGE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SDM1A30CSP-7 |
|---|---|
| Capacitance @ Vr, F | 40 pF |
| Current - Average Rectified (Io) | 1 A |
| Current - Reverse Leakage @ Vr | 100 µA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction [Max] | 150 °C |
| Operating Temperature - Junction [Min] | -55 °C |
| Package / Case | 2-XDFN |
| Speed | 200 mA, 500 ns |

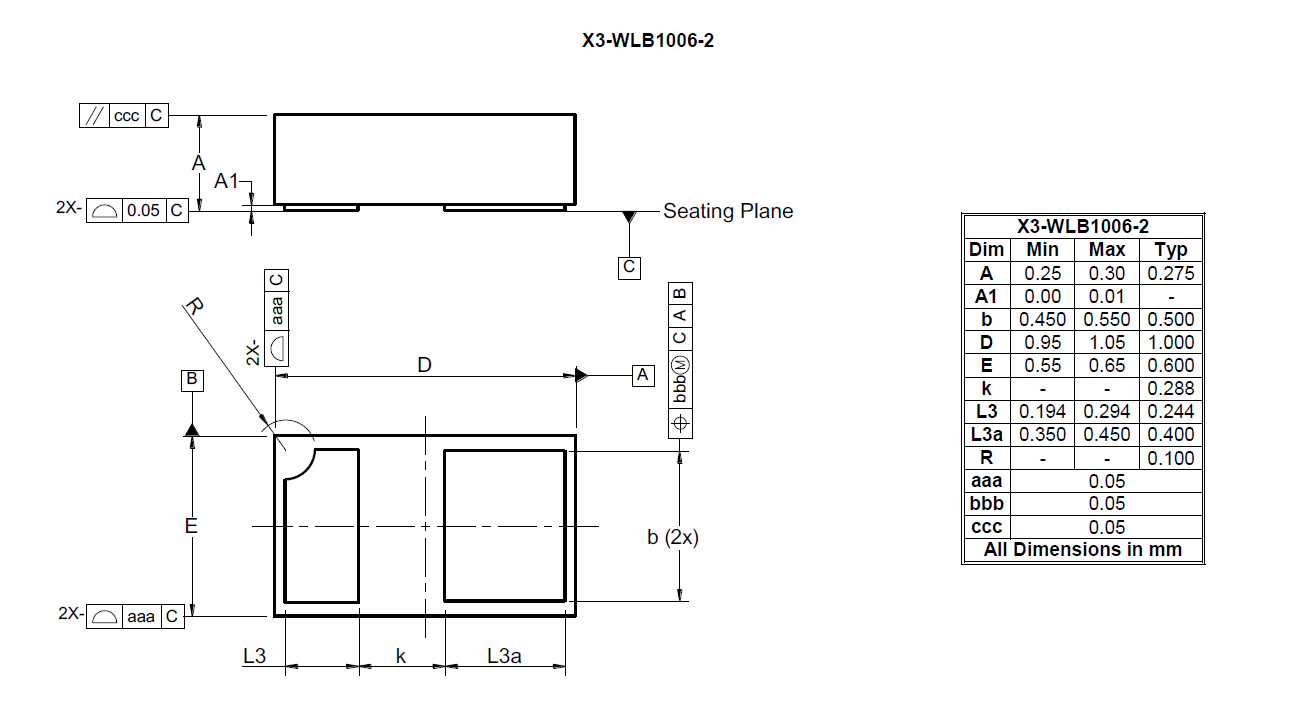

| Supplier Device Package | X3-WLB1006-2 |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 30 V |
| Voltage - Forward (Vf) (Max) @ If | 525 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SDM1A30CSP Series
The SDM1A30CSP is a 30V 1A Schottky barrier rectifier that is optimized for low forward voltage drop and low-leakage current, housed in a compact chip scale package (CSP) that occupies only 0.6mm2 board space. The low thermal resistance enables designers to meet design challenges of increasing efficiency while also reducing board space.
