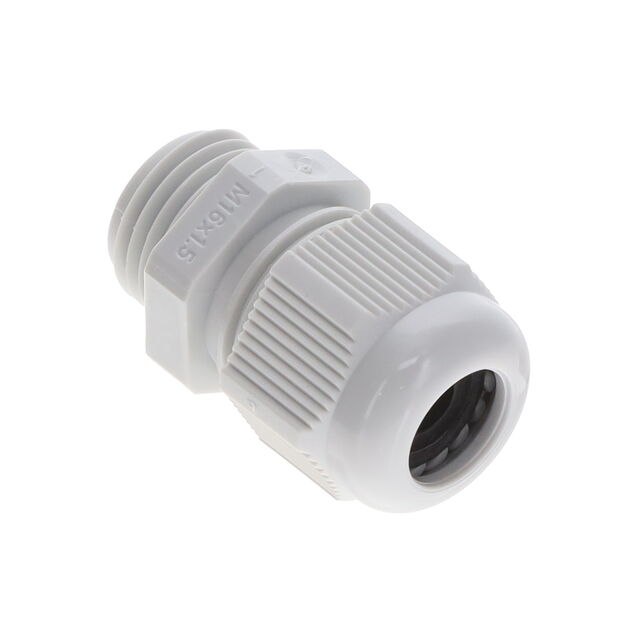

Specification	50.616PA/R7035

Color	Gray
Includes	Sealing Ring
Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Material	Polyamide (PA6), Nylon 6
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-40 °C
Outside Cable Diameter (Max)	0.394 in
Outside Cable Diameter (Min)	0.118 in
Thread Diameter	16 mm
Thread Length	0.315 in
Thread Pitch	1.5 mm
Type	Cable Gland

50.616 Series

Part	Material	Operating Temperature (Max)	Operating Temperature (Min)	Outside Cable Diameter (Max)	Includes	Thread Diameter	Thread Pitch	Ingress Protection IP Rating	Ingress Protection Description	Color	Type	Outside Cable Diameter (Min)	Thread Length
Jacob GmbH 50.616 PA/FL	Nylon 6 Polyamide (PA6)	100 °C	-40 °C	0.394 in	Sealing Ring	16 mm	1.5 mm	IP68	Dust Tight Waterproof	Gray	Cable Gland	0.197 in	0.315 in
Jacob GmbH 50.616 M/EMVDL	Brass Nickel Plated	100 °C	-40 °C	0.354 in	O-Ring Seal	16 mm	1.5 mm	IP68	Dust Tight Waterproof	Silver	Cable Gland	0.197 in	0.394 in
Jacob GmbH 50.616 M/BS	Brass Nickel Plated	100 °C	-20 °C	0.354 in	O-Ring Seal Strain Relief	16 mm	1.5 mm	IP68	Dust Tight Waterproof	Silver	Cable Gland	0.197 in	0.197 in
Jacob GmbH 50.616 PA7035	Nylon 6 Polyamide (PA6)	100 °C	-40 °C	0.374 in	Sealing Ring	16 mm	1.5 mm	IP68	Dust Tight Waterproof	Gray	Cable Gland	0.197 in	0.315 in
Jacob GmbH 50.616 PA/SW	Nylon 6 Polyamide (PA6)	100 °C	-40 °C	0.374 in	Sealing Ring	16 mm	1.5 mm	IP68	Dust Tight Waterproof	Black	Cable Gland	0.197 in	0.315 in
Jacob GmbH 50.616 PA7035L	Nylon 6 Polyamide (PA6)	100 °C	-40 °C	0.374 in	Sealing Ring	16 mm	1.5 mm	IP68	Dust Tight Waterproof	Gray	Cable Gland	0.197 in	0.591 in
Jacob GmbH 50.616 PA/RSW	Nylon 6 Polyamide (PA6)	100 °C	-40 °C	0.394 in	Sealing Ring	16 mm	1.5 mm	IP68	Dust Tight Waterproof	Black	Cable Gland	0.118 in	0.315 in
Jacob GmbH 50.616PA/R7035	Nylon 6 Polyamide (PA6)	100 °C	-40 °C	0.394 in	Sealing Ring	16 mm	1.5 mm	IP68	Dust Tight Waterproof	Gray	Cable Gland	0.118 in	0.315 in
Jacob GmbH 50.616 M	Brass Nickel Plated	100 °C	-40 °C	0.354 in	O-Ring Seal	16 mm	1.5 mm	IP68	Dust Tight Waterproof	Silver	Cable Gland	0.197 in	0.197 in
Jacob GmbH 50.616 M/EMVD	Brass Nickel Plated	100 °C	-40 °C	0.354 in	O-Ring Seal	16 mm	1.5 mm	IP68	Dust Tight Waterproof	Silver	Cable Gland	0.197 in	0.197 in
