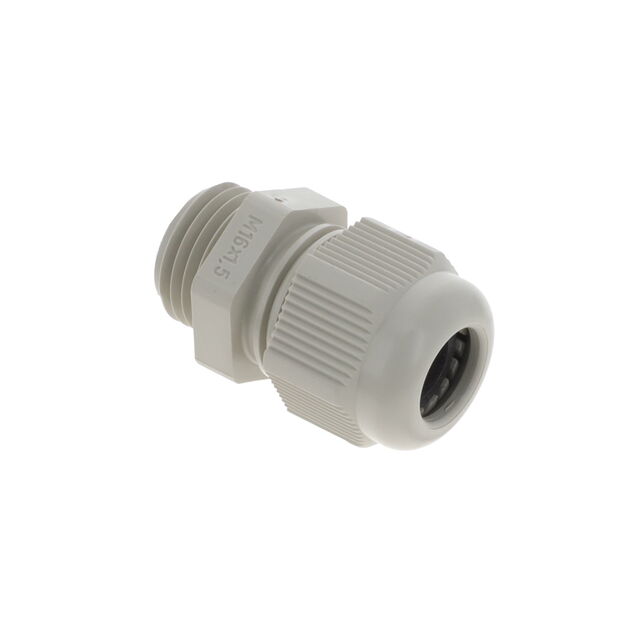

50.616 PA/FL

Active

Jacob GmbH

CABLE GLAND 5-10MM M16 POLYAMIDE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

50.616 PA/FL

Active

Jacob GmbH

CABLE GLAND 5-10MM M16 POLYAMIDE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	50.616 PA/FL

Color	Gray
Includes	Sealing Ring
Ingress Protection	IP68 - Dust Tight, Waterproof
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.394 "
Outside Cable Diameter (Max) [Max] [diameter]	10 mm
Outside Cable Diameter (Min) [Min]	5 mm
Outside Cable Diameter (Min) [Min]	0.197 in
Thread Length	8 mm
Thread Length	0.315 in
Thread Size	M16x1.5
Type	Cable Gland

50.616 Series

Part	Thread Size	Type	Ingress Protection	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Thread Length	Thread Length	Includes	Operating Temperature [Max]	Operating Temperature [Min]	Color	Outside Cable Diameter (Max) [Max] [diameter]	Material	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]
Jacob GmbH 50.616 PA/FL	M16x1.5	Cable Gland	IP68 - Dust Tight Waterproof	0.394 "	10 mm	5 mm	0.197 in	8 mm	0.315 in	Sealing Ring	100 °C	-40 °C	Gray
Jacob GmbH 50.616 M/EMVDL	M16x1.5	Cable Gland	IP68 - Dust Tight Waterproof		0.354 in	5 mm	0.197 in	10 mm	0.394 in	O-Ring Seal	100 °C	-40 °C	Silver	9 mm	Brass Nickel Plated
Jacob GmbH 50.616 M/BS	M16x1.5	Cable Gland	IP68 - Dust Tight Waterproof		0.354 in	5 mm	0.197 in			O-Ring Seal Strain Relief	100 °C	-20 C	Silver	9 mm	Brass Nickel Plated
Jacob GmbH 50.616 PA7035	M16x1.5	Cable Gland	IP68 - Dust Tight Waterproof		0.374 in	5 mm	0.197 in	8 mm	0.315 in	Sealing Ring	100 °C	-40 °C	Gray	9.5 mm
Jacob GmbH 50.616 PA/SW	M16x1.5	Cable Gland	IP68 - Dust Tight Waterproof		0.374 in	5 mm	0.197 in	8 mm	0.315 in	Sealing Ring	100 °C	-40 °C	Black	9.5 mm
Jacob GmbH 50.616 PA7035L	M16x1.5	Cable Gland	IP68 - Dust Tight Waterproof		0.374 in	5 mm	0.197 in	15 mm	0.591 in	Sealing Ring	100 °C	-40 °C	Gray	9.5 mm
Jacob GmbH 50.616 PA/RSW	M16x1.5	Cable Gland	IP68 - Dust Tight Waterproof	0.394 "	10 mm			8 mm	0.315 in	Sealing Ring	100 °C	-40 °C	Black			3 mm	0.118 in
Jacob GmbH 50.616PA/R7035	M16x1.5	Cable Gland	IP68 - Dust Tight Waterproof	0.394 "	10 mm			8 mm	0.315 in	Sealing Ring	100 °C	-40 °C	Gray			3 mm	0.118 in
Jacob GmbH 50.616 M	M16x1.5	Cable Gland	IP68 - Dust Tight Waterproof		0.354 in	5 mm	0.197 in			O-Ring Seal	100 °C	-40 °C	Silver	9 mm	Brass Nickel Plated
Jacob GmbH 50.616 M/EMVD	M16x1.5	Cable Gland	IP68 - Dust Tight Waterproof		0.354 in	5 mm	0.197 in			O-Ring Seal	100 °C	-40 °C	Silver	9 mm	Brass Nickel Plated

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 0.93
		10	$ 0.78
		25	$ 0.75
		50	$ 0.73
		100	$ 0.70
		300	$ 0.64
		500	$ 0.58
		1000	$ 0.56

Description

General part information

50.616 Series

Cable Gland Polyamide (PA6), Nylon 6 M16x1.5 Gray
