1803620

Active

Phoenix Contact

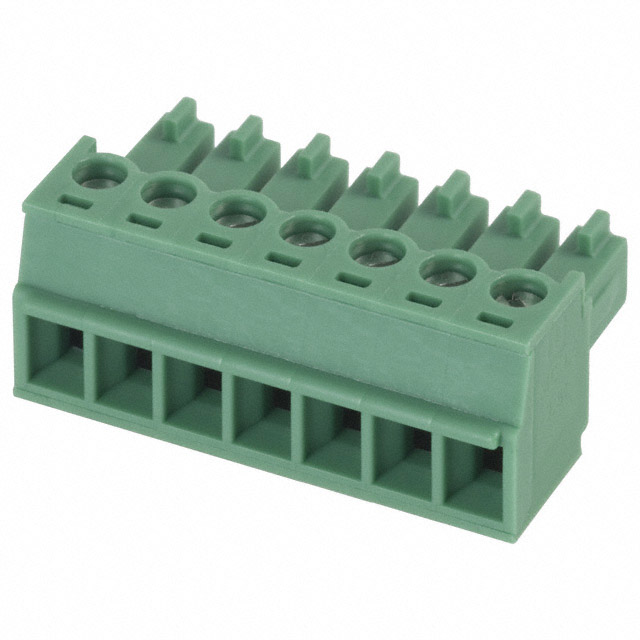

PLUGGABLE TERMINAL BLOCK, 3.81 MM, 7 POSITIONS, 28 AWG, 16 AWG, 1.5 MM², SCREW

Deep-Dive with AI

Search across all available documentation for this part.

Documents1840,1803zzz Datasheet +3

1803620

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCK, 3.81 MM, 7 POSITIONS, 28 AWG, 16 AWG, 1.5 MM², SCREW

Deep-Dive with AI

Documents1840,1803zzz Datasheet +3

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.05
Newark	Each	1	$ 9.56
		10	$ 9.20
		50	$ 8.74
		100	$ 8.04
		250	$ 7.44
		500	$ 7.09
		1000	$ 6.65
Sager	N/A	1	$ 9.26
		10	$ 8.81
		25	$ 7.71
		50	$ 6.61
		100	$ 6.30
		250	$ 5.97

Description

General part information

MC Series

Pluggable Terminal Blocks 3 Pos 5.08mm pitch Plug 28-16 AWG Screw

Documents

Technical documentation and resources

Specification	1803620	MC Series

Color	Green	Green, Gray, Black
Contact Mating Finish	Tin	Tin, Gold
Contact Tail Length	-	2.6 - 3.4 mm
Contact Tail Length	-	0.102 - 0.134 in
Current - IEC	8 A	8 - 12 A
Current - UL	8 A	8 A
Features	-	Positions Stamped, Mating and Mounting Flange, Strain Relief, Locking Ramp, Mating Flange
Header Orientation	-	90°, Right Angle
Housing Material	Polyamide (PA), Nylon	Polybutylene Terephthalate (PBT), Polyamide (PA), Nylon, Liquid Crystal Polymer (LCP)
Insulation Height	0.437 in	0.285 - 0.535 in
Insulation Height	11.1 mm	6.91 - 13.6 mm
Insulation Height	-	0.272 "
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Through Hole
Number of Levels	1	1
Number of Positions	7	2 - 15
Number of Positions	-	16
Pitch [x]	0.15 in	0.138 - 0.2 in
Pitch [x]	3.81 mm	3.5 - 5.08 mm
Positions Per Level	7	2 - 17
Screw Size	M2	M2
Termination Style	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp, Solder, Screw - Pressure Clip
Torque - Screw [Max]	2.2 Lb-In	2.2 Lb-In
Torque - Screw [Max]	0.25 Nm	0.25 Nm
Torque - Screw [Min]	0.22 Nm	0.22 Nm
Torque - Screw [Min]	1.9 Lb-In	1.9 Lb-In
Type	Plug, Female Sockets	Plug, Female Sockets, Header, Male Pins, Shrouded (4 Side)
Voltage - IEC	320 V	160 - 630 V
Voltage - UL	300 V	300 V
Wire Gauge or Range - AWG [Max]	30 AWG	30 AWG
Wire Gauge or Range - AWG [Min]	14 AWG	14 - 16 AWG
Wire Gauge or Range - mm˛	-	0.14 mm˛
Wire Gauge or Range - mm˛	-	1.5 mm˛
Wire Gauge or Range - mm² [Max]	1.5 mm²	1.5 mm²
Wire Gauge or Range - mm² [Min]	0.14 mm²	0.14 mm²
Wire Strip Length	7 mm	7 - 9 mm

Part

Number of Levels

Mounting Type

Voltage - UL

Voltage - IEC

Wire Gauge or Range - AWG [Min]

Wire Gauge or Range - AWG [Max]

Current - UL

Insulation Height

Torque - Screw [Max]

Torque - Screw [Min]

Type

Screw Size

Number of Positions

Current - IEC

Positions Per Level

Features

Termination Style

Contact Mating Finish

Wire Gauge or Range - mm˛ [Min]

Wire Gauge or Range - mm˛ [Max]

Wire Strip Length

Pitch [x]

Header Orientation

Material Flammability Rating

Color

Housing Material

Contact Tail Length

Wire Gauge or Range - mm² [Min]

Wire Gauge or Range - mm² [Max]

Number of Positions

Insulation Height [z]

Phoenix Contact

1729182

Free Hanging (In-Line)

300 V

160 V

14 AWG

30 AWG

8 A

0.437 in

11.1 mm

2.2 Lb-In

0.25 Nm

0.22 Nm

1.9 Lb-In

Plug, Female Sockets

8 A

Positions Stamped

Screw - Rising Cage Clamp

Tin

0.14 mm˛

1.5 mm˛

7 mm

3.5 mm

0.138 in

Phoenix Contact

1843949

Through Hole

300 V

250 V

8 A

0.285 in

7.25 mm

Header, Male Pins, Shrouded (4 Side)

8 A

Mating and Mounting Flange

Solder

Tin

3.5 mm

0.138 in

90°, Right Angle

UL94 V-0

Green

Polybutylene Terephthalate (PBT)

3.4 mm

0.134 in

Phoenix Contact

1851999

Free Hanging (In-Line)

300 V

320 V

14 AWG

30 AWG

8 A

0.437 in

11.1 mm

2.2 Lb-In

0.25 Nm

0.22 Nm

1.9 Lb-In

Plug, Female Sockets

8 A

Screw - Rising Cage Clamp

Gold

7 mm

3.81 mm

0.15 in

UL94 V-0

Green

Polyamide (PA), Nylon

0.14 mm²

1.5 mm²

Phoenix Contact

1765599

Free Hanging (In-Line)

300 V

320 V

14 AWG

30 AWG

8 A

2.2 Lb-In

0.25 Nm

0.22 Nm

1.9 Lb-In

Plug, Female Sockets

8 A

Strain Relief

Screw - Rising Cage Clamp

Tin

7 mm

3.5 mm

0.138 in

UL94 V-0

Green

Polyamide (PA), Nylon

0.14 mm²

1.5 mm²

Phoenix Contact

1916368

Free Hanging (In-Line)

300 V

160 V

14 AWG

30 AWG

8 A

0.437 in

11.1 mm

2.2 Lb-In

0.25 Nm

0.22 Nm

1.9 Lb-In

Plug, Female Sockets

8 A

Screw - Rising Cage Clamp

Tin

7 mm

3.5 mm

0.138 in

Gray

0.14 mm²

1.5 mm²

Phoenix Contact

1817181

Free Hanging (In-Line)

300 V

320 V

14 AWG

30 AWG

8 A

0.535 in

13.6 mm

2.2 Lb-In

0.25 Nm

0.22 Nm

1.9 Lb-In

Plug, Female Sockets

8 A

Screw - Rising Cage Clamp

Tin

7 mm

3.81 mm

0.15 in

UL94 V-0

Green

Polyamide (PA), Nylon

0.14 mm²

1.5 mm²

Phoenix Contact

1844249

Through Hole

300 V

250 V

8 A

0.285 in

7.25 mm

Header, Male Pins, Shrouded (4 Side)

12 A

Solder

Tin

3.5 mm

0.138 in

90°, Right Angle

UL94 V-0

Green

Polybutylene Terephthalate (PBT)

3.4 mm

0.134 in

Phoenix Contact

1731808

Through Hole

300 V

250 V

8 A

Header, Male Pins, Shrouded (4 Side)

8 A

Locking Ramp

Solder

Tin

3.5 mm

0.138 in

90°, Right Angle

UL94 V-0

Green

Polybutylene Terephthalate (PBT)

3.4 mm

0.134 in

Phoenix Contact

1839623

Through Hole

300 V

250 V

8 A

0.285 in

7.25 mm

Header, Male Pins, Shrouded (4 Side)

8 A

Solder

Tin

3.81 mm

0.15 in

90°, Right Angle

UL94 V-0

Black

Polybutylene Terephthalate (PBT)

3.4 mm

0.134 in

Phoenix Contact

1803620

Free Hanging (In-Line)

300 V

320 V

14 AWG

30 AWG

8 A

0.437 in

11.1 mm

2.2 Lb-In

0.25 Nm

0.22 Nm

1.9 Lb-In

Plug, Female Sockets

8 A

Screw - Rising Cage Clamp

Tin

7 mm

3.81 mm

0.15 in

UL94 V-0

Green

Polyamide (PA), Nylon

0.14 mm²

1.5 mm²

Part	Number of Levels	Mounting Type	Voltage - UL	Voltage - IEC	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Current - UL	Insulation Height	Insulation Height	Torque - Screw [Max]	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Type	Screw Size	Number of Positions	Current - IEC	Positions Per Level	Features	Termination Style	Contact Mating Finish	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Wire Strip Length	Pitch [x]	Pitch [x]	Header Orientation	Material Flammability Rating	Color	Housing Material	Contact Tail Length	Contact Tail Length	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Number of Positions
Phoenix Contact 1729182	1	Free Hanging (In-Line)	300 V	160 V	14 AWG	30 AWG	8 A	0.437 in	11.1 mm	2.2 Lb-In	0.25 Nm	0.22 Nm	1.9 Lb-In	Plug, Female Sockets	M2	2	8 A	2	Positions Stamped	Screw - Rising Cage Clamp	Tin	0.14 mm˛	1.5 mm˛	7 mm	3.5 mm	0.138 in
Phoenix Contact 1843949	1	Through Hole	300 V	250 V			8 A	0.285 in	7.25 mm					Header, Male Pins, Shrouded (4 Side)			8 A	17	Mating and Mounting Flange	Solder	Tin				3.5 mm	0.138 in	90°, Right Angle	UL94 V-0	Green	Polybutylene Terephthalate (PBT)	3.4 mm	0.134 in
Phoenix Contact 1851999	1	Free Hanging (In-Line)	300 V	320 V	14 AWG	30 AWG	8 A	0.437 in	11.1 mm	2.2 Lb-In	0.25 Nm	0.22 Nm	1.9 Lb-In	Plug, Female Sockets	M2	2	8 A	2		Screw - Rising Cage Clamp	Gold			7 mm	3.81 mm	0.15 in		UL94 V-0	Green	Polyamide (PA), Nylon			0.14 mm²	1.5 mm²
Phoenix Contact 1765599	1	Free Hanging (In-Line)	300 V	320 V	14 AWG	30 AWG	8 A			2.2 Lb-In	0.25 Nm	0.22 Nm	1.9 Lb-In	Plug, Female Sockets	M2	8	8 A	8	Strain Relief	Screw - Rising Cage Clamp	Tin			7 mm	3.5 mm	0.138 in		UL94 V-0	Green	Polyamide (PA), Nylon			0.14 mm²	1.5 mm²
Phoenix Contact 1916368	1	Free Hanging (In-Line)	300 V	160 V	14 AWG	30 AWG	8 A	0.437 in	11.1 mm	2.2 Lb-In	0.25 Nm	0.22 Nm	1.9 Lb-In	Plug, Female Sockets	M2		8 A	5		Screw - Rising Cage Clamp	Tin			7 mm	3.5 mm	0.138 in			Gray				0.14 mm²	1.5 mm²
Phoenix Contact 1817181	1	Free Hanging (In-Line)	300 V	320 V	14 AWG	30 AWG	8 A	0.535 in	13.6 mm	2.2 Lb-In	0.25 Nm	0.22 Nm	1.9 Lb-In	Plug, Female Sockets	M2		8 A	16		Screw - Rising Cage Clamp	Tin			7 mm	3.81 mm	0.15 in		UL94 V-0	Green	Polyamide (PA), Nylon			0.14 mm²	1.5 mm²	16
Phoenix Contact 1844249	1	Through Hole	300 V	250 V			8 A	0.285 in	7.25 mm					Header, Male Pins, Shrouded (4 Side)			12 A	5		Solder	Tin				3.5 mm	0.138 in	90°, Right Angle	UL94 V-0	Green	Polybutylene Terephthalate (PBT)	3.4 mm	0.134 in
Phoenix Contact 1731808	1	Through Hole	300 V	250 V			8 A							Header, Male Pins, Shrouded (4 Side)		15	8 A	15	Locking Ramp	Solder	Tin				3.5 mm	0.138 in	90°, Right Angle	UL94 V-0	Green	Polybutylene Terephthalate (PBT)	3.4 mm	0.134 in
Phoenix Contact 1839623	1	Through Hole	300 V	250 V			8 A	0.285 in	7.25 mm					Header, Male Pins, Shrouded (4 Side)			8 A	3		Solder	Tin				3.81 mm	0.15 in	90°, Right Angle	UL94 V-0	Black	Polybutylene Terephthalate (PBT)	3.4 mm	0.134 in
Phoenix Contact 1803620	1	Free Hanging (In-Line)	300 V	320 V	14 AWG	30 AWG	8 A	0.437 in	11.1 mm	2.2 Lb-In	0.25 Nm	0.22 Nm	1.9 Lb-In	Plug, Female Sockets	M2	7	8 A	7		Screw - Rising Cage Clamp	Tin			7 mm	3.81 mm	0.15 in		UL94 V-0	Green	Polyamide (PA), Nylon			0.14 mm²	1.5 mm²
