1916368

Active

Phoenix Contact

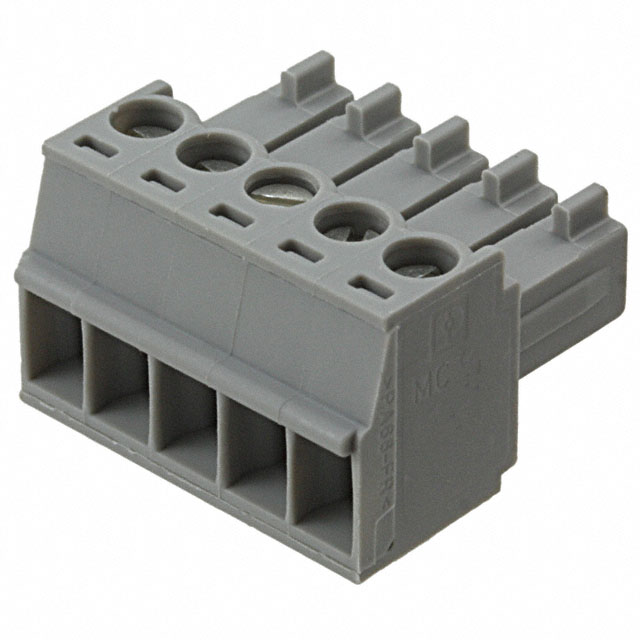

PLUGGABLE TERMINAL BLOCKS 5 POS 3.5MM PITCH PLUG 28-16 AWG SCREW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1916368

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 5 POS 3.5MM PITCH PLUG 28-16 AWG SCREW

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 5.11
Sager	N/A	50	$ 6.35
		150	$ 6.12
		250	$ 5.90

Description

General part information

MC Series

Pluggable Terminal Blocks 3 Pos 5.08mm pitch Plug 28-16 AWG Screw

Documents

Technical documentation and resources

Datasheet

Document

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1916368	MC Series

Color	Gray	Green, Gray, Black
Contact Mating Finish	Tin	Tin, Gold
Contact Tail Length	-	2.6 - 3.4 mm
Contact Tail Length	-	0.102 - 0.134 in
Current - IEC	8 A	8 - 12 A
Current - UL	8 A	8 A
Features	-	Positions Stamped, Mating and Mounting Flange, Strain Relief, Locking Ramp, Mating Flange
Header Orientation	-	90°, Right Angle
Housing Material	-	Polybutylene Terephthalate (PBT), Polyamide (PA), Nylon, Liquid Crystal Polymer (LCP)
Insulation Height	0.437 in	0.285 - 0.535 in
Insulation Height	11.1 mm	6.91 - 13.6 mm
Insulation Height	-	0.272 "
Material Flammability Rating	-	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Through Hole
Number of Levels	1	1
Number of Positions	-	2 - 15
Number of Positions	-	16
Pitch [x]	3.5 mm	3.5 - 5.08 mm
Pitch [x]	0.138 in	0.138 - 0.2 in
Positions Per Level	5	2 - 17
Screw Size	M2	M2
Termination Style	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp, Solder, Screw - Pressure Clip
Torque - Screw [Max]	2.2 Lb-In	2.2 Lb-In
Torque - Screw [Max]	0.25 Nm	0.25 Nm
Torque - Screw [Min]	0.22 Nm	0.22 Nm
Torque - Screw [Min]	1.9 Lb-In	1.9 Lb-In
Type	Plug, Female Sockets	Plug, Female Sockets, Header, Male Pins, Shrouded (4 Side)
Voltage - IEC	160 V	160 - 630 V
Voltage - UL	300 V	300 V
Wire Gauge or Range - AWG [Max]	30 AWG	30 AWG
Wire Gauge or Range - AWG [Min]	14 AWG	14 - 16 AWG
Wire Gauge or Range - mm˛	-	0.14 mm˛
Wire Gauge or Range - mm˛	-	1.5 mm˛
Wire Gauge or Range - mm² [Max]	1.5 mm²	1.5 mm²
Wire Gauge or Range - mm² [Min]	0.14 mm²	0.14 mm²
Wire Strip Length	7 mm	7 - 9 mm

MC Series

Pluggable Terminal Blocks 3 Pos 5.08mm pitch Plug 28-16 AWG Screw

Part	Number of Levels	Mounting Type	Voltage - UL	Voltage - IEC	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Current - UL	Insulation Height	Insulation Height	Torque - Screw [Max]	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Type	Screw Size	Number of Positions	Current - IEC	Positions Per Level	Features	Termination Style	Contact Mating Finish	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Wire Strip Length	Pitch [x]	Pitch [x]	Header Orientation	Material Flammability Rating	Color	Housing Material	Contact Tail Length	Contact Tail Length	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Number of Positions
Phoenix Contact 1729182	1	Free Hanging (In-Line)	300 V	160 V	14 AWG	30 AWG	8 A	0.437 in	11.1 mm	2.2 Lb-In	0.25 Nm	0.22 Nm	1.9 Lb-In	Plug, Female Sockets	M2	2	8 A	2	Positions Stamped	Screw - Rising Cage Clamp	Tin	0.14 mm˛	1.5 mm˛	7 mm	3.5 mm	0.138 in
Phoenix Contact 1843949	1	Through Hole	300 V	250 V			8 A	0.285 in	7.25 mm					Header, Male Pins, Shrouded (4 Side)			8 A	17	Mating and Mounting Flange	Solder	Tin				3.5 mm	0.138 in	90°, Right Angle	UL94 V-0	Green	Polybutylene Terephthalate (PBT)	3.4 mm	0.134 in
Phoenix Contact 1851999	1	Free Hanging (In-Line)	300 V	320 V	14 AWG	30 AWG	8 A	0.437 in	11.1 mm	2.2 Lb-In	0.25 Nm	0.22 Nm	1.9 Lb-In	Plug, Female Sockets	M2	2	8 A	2		Screw - Rising Cage Clamp	Gold			7 mm	3.81 mm	0.15 in		UL94 V-0	Green	Polyamide (PA), Nylon			0.14 mm²	1.5 mm²
Phoenix Contact 1765599	1	Free Hanging (In-Line)	300 V	320 V	14 AWG	30 AWG	8 A			2.2 Lb-In	0.25 Nm	0.22 Nm	1.9 Lb-In	Plug, Female Sockets	M2	8	8 A	8	Strain Relief	Screw - Rising Cage Clamp	Tin			7 mm	3.5 mm	0.138 in		UL94 V-0	Green	Polyamide (PA), Nylon			0.14 mm²	1.5 mm²
Phoenix Contact 1916368	1	Free Hanging (In-Line)	300 V	160 V	14 AWG	30 AWG	8 A	0.437 in	11.1 mm	2.2 Lb-In	0.25 Nm	0.22 Nm	1.9 Lb-In	Plug, Female Sockets	M2		8 A	5		Screw - Rising Cage Clamp	Tin			7 mm	3.5 mm	0.138 in			Gray				0.14 mm²	1.5 mm²
Phoenix Contact 1817181	1	Free Hanging (In-Line)	300 V	320 V	14 AWG	30 AWG	8 A	0.535 in	13.6 mm	2.2 Lb-In	0.25 Nm	0.22 Nm	1.9 Lb-In	Plug, Female Sockets	M2		8 A	16		Screw - Rising Cage Clamp	Tin			7 mm	3.81 mm	0.15 in		UL94 V-0	Green	Polyamide (PA), Nylon			0.14 mm²	1.5 mm²	16
Phoenix Contact 1844249	1	Through Hole	300 V	250 V			8 A	0.285 in	7.25 mm					Header, Male Pins, Shrouded (4 Side)			12 A	5		Solder	Tin				3.5 mm	0.138 in	90°, Right Angle	UL94 V-0	Green	Polybutylene Terephthalate (PBT)	3.4 mm	0.134 in
Phoenix Contact 1731808	1	Through Hole	300 V	250 V			8 A							Header, Male Pins, Shrouded (4 Side)		15	8 A	15	Locking Ramp	Solder	Tin				3.5 mm	0.138 in	90°, Right Angle	UL94 V-0	Green	Polybutylene Terephthalate (PBT)	3.4 mm	0.134 in
Phoenix Contact 1839623	1	Through Hole	300 V	250 V			8 A	0.285 in	7.25 mm					Header, Male Pins, Shrouded (4 Side)			8 A	3		Solder	Tin				3.81 mm	0.15 in	90°, Right Angle	UL94 V-0	Black	Polybutylene Terephthalate (PBT)	3.4 mm	0.134 in
Phoenix Contact 1803620	1	Free Hanging (In-Line)	300 V	320 V	14 AWG	30 AWG	8 A	0.437 in	11.1 mm	2.2 Lb-In	0.25 Nm	0.22 Nm	1.9 Lb-In	Plug, Female Sockets	M2	7	8 A	7		Screw - Rising Cage Clamp	Tin			7 mm	3.81 mm	0.15 in		UL94 V-0	Green	Polyamide (PA), Nylon			0.14 mm²	1.5 mm²
