90760-2

Active

TE Application Tooling

PROCRIMP DIE MINI UNIV MNL

Search across all available documentation for this part.

Active

TE Application Tooling

PROCRIMP DIE MINI UNIV MNL

Technical Specifications

Parameters and characteristics for this part

Specification	90760-2

Compatible Tools	9-1478240-0, 679304-1, 354940-1, 1213890-1, 1213890-2, 1490076-2
For Use With/Related Products	Rectangular Contacts
For Use With/Related Products [Max]	20 AWG
For Use With/Related Products [Min]	16 AWG
Tool Type	Die Set

Part	Ratcheting	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Tool Type	For Use With/Related Products	Wire Entry Location	For Use With/Related Products [Min]	For Use With/Related Products [Max]	Compatible Tools
TE Application Tooling 90760-1	Ratchet	16 AWG	20 AWG	Hand Crimper	Rectangular Contacts	Side Entry
TE Application Tooling 90760-2				Die Set	Rectangular Contacts		16 AWG	20 AWG	1213890-1 1213890-2 1490076-2 354940-1 679304-1 9-1478240-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 199.00

General part information

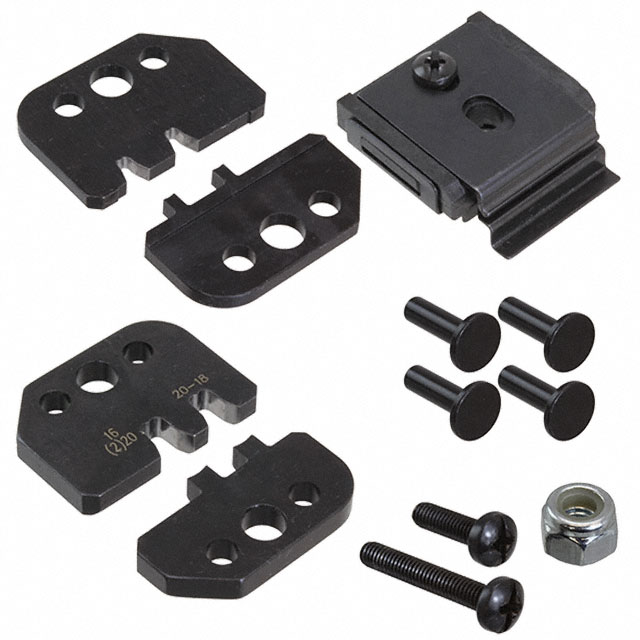

Tool Die Set For Rectangular Contacts, 16-20 AWG

Technical documentation and resources
