90760-1

Active

TE Application Tooling

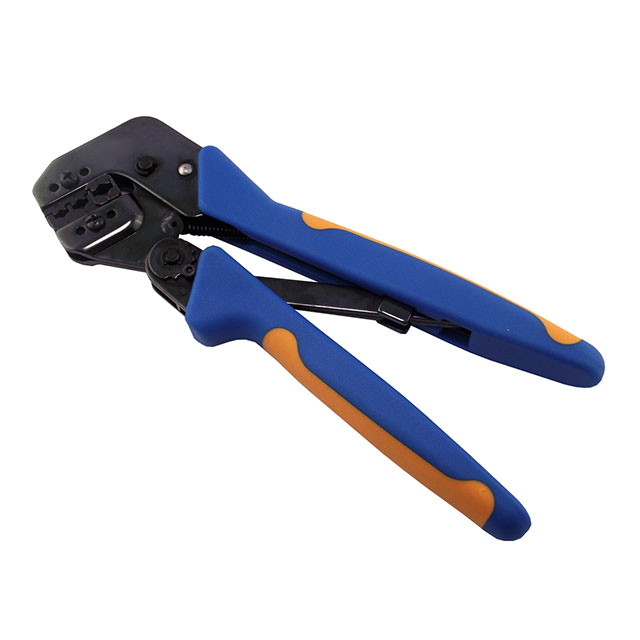

TOOL HAND CRIMPER 16-20AWG SIDE

Search across all available documentation for this part.

Active

TE Application Tooling

TOOL HAND CRIMPER 16-20AWG SIDE

Technical Specifications

Parameters and characteristics for this part

Specification	90760-1

For Use With/Related Products	Rectangular Contacts
Ratcheting	Ratchet
Tool Type	Hand Crimper
Wire Entry Location	Side Entry
Wire Gauge or Range - AWG [Max]	20 AWG
Wire Gauge or Range - AWG [Min]	16 AWG

Part	Ratcheting	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Tool Type	For Use With/Related Products	Wire Entry Location	For Use With/Related Products [Min]	For Use With/Related Products [Max]	Compatible Tools
TE Application Tooling 90760-1	Ratchet	16 AWG	20 AWG	Hand Crimper	Rectangular Contacts	Side Entry
TE Application Tooling 90760-2				Die Set	Rectangular Contacts		16 AWG	20 AWG	1213890-1 1213890-2 1490076-2 354940-1 679304-1 9-1478240-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hand Crimper Tool Rectangular Contacts

Technical documentation and resources

No documents available
