10380-12R1-00

Active

3M MINI D RIBBON (MDR) CONNECTORS, 103 SERIES, 10380-12R1-00 ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

3M MINI D RIBBON (MDR) CONNECTORS, 103 SERIES, 10380-12R1-00 ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	10380-12R1-00	10380 Series

Accessory Type	-	Two Piece Backshell, Two Piece Backshell and Cover
Cable Exit	-	60 - 180 °
Cable Type	-	Round, Flat
Color	-	Silver, Beige
Features	-	Latch Lock, Mating Screws 4-40
Hardware	-	Assembly Hardware, Gasket
Material	-	Zinc Alloy, Metal, Zinc, Metal
Material	-	Plastic, Steel
Material	-	Metal
null		-
Number of Positions	-	80
Plating	-	Nickel
Primary Material	-	Metal
Shielding	-	Shielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

3M MINI D RIBBON (MDR) CONNECTORS, 103 SERIES, 10380-12R1-00 ROHS COMPLIANT: YES

Part	Number of Positions	Material	Shielding	Color	Primary Material	Cable Exit	Features	Plating	Accessory Type	Cable Type	Hardware	Material [custom]	Material [custom]
3M 10380-12R1-00
3M 10380-C500-00	80	Zinc Alloy	Shielded	Silver	Metal	60 °	Latch Lock	Nickel	Two Piece Backshell	Round
3M 10380-3280-000-1
3M 10380-12R1-00	80	Metal, Zinc	Shielded	Silver	Metal	180 °	Mating Screws 4-40	Nickel	Two Piece Backshell	Flat	Assembly Hardware, Gasket
3M 10380-3280-000-1
3M 10380-A500-00	80	Metal, Zinc Alloy	Shielded	Silver	Metal	60 °	Latch Lock	Nickel	Two Piece Backshell	Round
3M 10380-3280-000-1	80		Shielded	Beige	Metal	180 °	Latch Lock	Nickel	Two Piece Backshell and Cover	Round		Plastic, Steel	Metal
3M 10380-C500-00

General part information

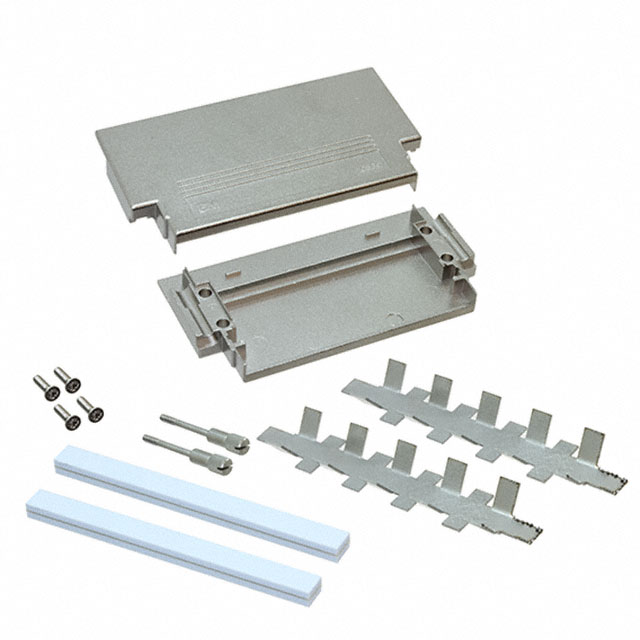

80 Position Two Piece Backshell Connector Silver 180° Shielded
