10380-C500-00
Active3M
CONNECTOR BACKSHELL, JUNCTION BACKSHELL, 80 POSITION CONNECTORS, 60°, ZINC ALLOY BODY
Deep-Dive with AI
Search across all available documentation for this part.
10380-C500-00
Active3M
CONNECTOR BACKSHELL, JUNCTION BACKSHELL, 80 POSITION CONNECTORS, 60°, ZINC ALLOY BODY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 10380-C500-00 | 10380 Series |
|---|---|---|
| - | - | |
| Accessory Type | Two Piece Backshell | Two Piece Backshell, Two Piece Backshell and Cover |
| Cable Exit | 60 ° | 60 - 180 ° |
| Cable Type | Round | Round, Flat |
| Color | Silver | Silver, Beige |
| Features | Latch Lock | Latch Lock, Mating Screws 4-40 |
| Hardware | - | Assembly Hardware, Gasket |
| Material | Zinc Alloy | Zinc Alloy, Metal, Zinc, Metal |
| Material | - | Plastic, Steel |
| Material | - | Metal |
| Number of Positions | 80 | 80 |
| Plating | Nickel | Nickel |
| Primary Material | Metal | Metal |
| Shielding | Shielded | Shielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
10380 Series
3M MINI D RIBBON (MDR) CONNECTORS, 103 SERIES, 10380-12R1-00 ROHS COMPLIANT: YES
| Part | Number of Positions | Material | Shielding | Color | Primary Material | Cable Exit | Features | Plating | Accessory Type | Cable Type | Hardware | Material [custom] | Material [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
80 | Zinc Alloy | Shielded | Silver | Metal | 60 ° | Latch Lock | Nickel | Two Piece Backshell | Round | ||||
80 | Metal, Zinc | Shielded | Silver | Metal | 180 ° | Mating Screws 4-40 | Nickel | Two Piece Backshell | Flat | Assembly Hardware, Gasket | |||
80 | Metal, Zinc Alloy | Shielded | Silver | Metal | 60 ° | Latch Lock | Nickel | Two Piece Backshell | Round | ||||
80 | Shielded | Beige | Metal | 180 ° | Latch Lock | Nickel | Two Piece Backshell and Cover | Round | Plastic, Steel | Metal | |||
Description
General part information
10380 Series

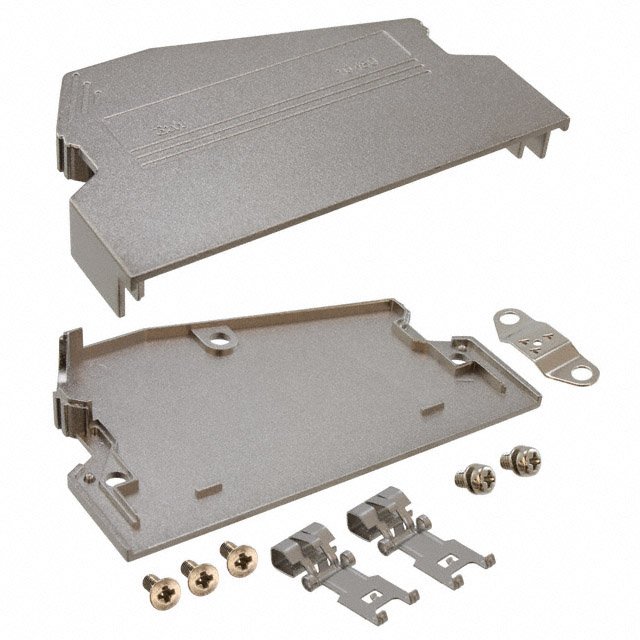

80 Position Two Piece Backshell Connector Silver 60° Shielded
