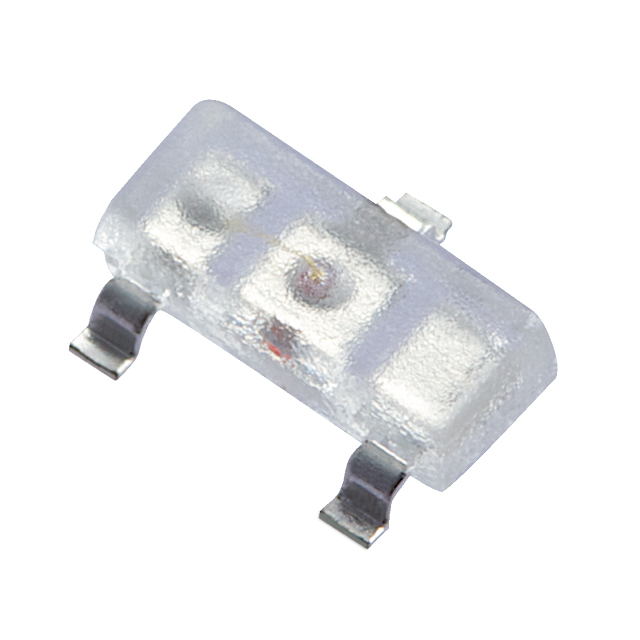

Specification	AM23SYCK-F

Color	Yellow
Configuration	Independent
Current - Test	20 mA
Height (Max)	1.2 mm
Lens Color	Colorless
Lens Length	2.1 mm
Lens Style	Rectangle, Flat Top
Lens Transparency	Clear
Lens Width	1.3 mm
Millicandela Rating	120 mcd
Mounting Type	Surface Mount
Package / Case	TO-236-3, SOT-23-3, SC-59
Package Name	SOT-23-3
Size / Dimension Length	3 mm
Size / Dimension Width	1.4 mm
Viewing Angle	170 °
Voltage - Forward (Vf) (Typ)	2 V
Wavelength - Dominant	590 nm
Wavelength - Peak	590 nm

AM23 Series

Part	Lens Style	Lens Length	Lens Width	Package Name	Size / Dimension Width	Size / Dimension Length	Height (Max)	Millicandela Rating	Lens Transparency	Color	Wavelength - Dominant	Lens Color	Mounting Type	Wavelength - Peak	Viewing Angle	Voltage - Forward (Vf) (Typ)	Current - Test	Package / Case	Configuration	Wavelength - Dominant Color	Wavelength - Dominant (Green)	Wavelength - Dominant (Red)	Voltage - Forward (Vf) (Typ) (Red)	Voltage - Forward (Vf) (Typ) Color	Voltage - Forward (Vf) (Typ) (Green)	Wavelength - Peak Colors	Wavelength - Peak (Green)	Wavelength - Peak (Red)	Millicandela Rating Colors	Millicandela Rating (Red)	Millicandela Rating (Green)	Current - Test (Green)	Current - Test Colors	Current - Test (Red)
Kingbright AM23SYCK-F	Flat Top Rectangle	2.1 mm	1.3 mm	SOT-23-3	1.4 mm	3 mm	1.2 mm	120 mcd	Clear	Yellow	590 nm	Colorless	Surface Mount	590 nm	170 °	2 V	20 mA	SC-59 SOT-23-3 TO-236-3	Independent
Kingbright AM23SYC-F	Flat Top Rectangle	3 mm	1.3 mm	SOT-23-3	1.3 mm	3 mm	1.2 mm	130 mcd	Clear	Yellow	590 nm	Colorless	Surface Mount	590 nm	140 °	2 V	20 mA	SC-59 SOT-23-3 TO-236-3	Standard
Kingbright AM23ESGC	Flat Top Rectangle	3 mm	1.3 mm	SOT-23-3	1.3 mm	3 mm	1.2 mm		Clear	Green Red		Colorless	Surface Mount		140 °			SC-59 SOT-23-3 TO-236-3	Common Cathode	Green Red	568 nm	617 nm	2 V	Green Red	2.2 V	Green Red	565 nm	627 nm	Green Red	5 mcd	10 mcd	20 mA	Green Red	20 mA
Kingbright AM23ESGW	Flat Top Rectangle	3 mm	1.3 mm	SOT-23-3	1.3 mm	3 mm	1.2 mm		Diffused	Green Red		White	Surface Mount		140 °			3-SMD SOT-23-3 Variant	Common Cathode	Green Red	568 nm	617 nm	2 V	Green Red	2.2 V	Green Red	565 nm	627 nm	Green Red	5 mcd	9 mcd	20 mA	Green Red	20 mA
Kingbright AM23ID-F	Flat Top Rectangle	3 mm	1.3 mm	SOT-23-3	1.3 mm	3 mm	1.2 mm	7 mcd	Diffused	Red	617 nm	Red	Surface Mount	627 nm	140 °	2 V	20 mA	SC-59 SOT-23-3 TO-236-3	Standard
Kingbright AM23SGD-F	Flat Top Rectangle	3 mm	1.3 mm	SOT-23-3	1.3 mm	3 mm	1.2 mm	8 mcd	Diffused	Green	568 nm	Green	Surface Mount	565 nm	140 °	2.2 V	20 mA	SC-59 SOT-23-3 TO-236-3	Standard
Kingbright AM23SGD3-F	Flat Top Rectangle	3 mm	1.3 mm	SOT-23	1.3 mm	3 mm	1.2 mm	8 mcd	Diffused	Green	568 nm	Green	Surface Mount	565 nm	140 °	2.2 V	20 mA	SC-59 SOT-23-3 TO-236-3	Standard
Kingbright AM23YD-F	Flat Top Rectangle	3 mm	1.3 mm	SOT-23-3	1.3 mm	3 mm	1.2 mm	8 mcd	Diffused	Yellow	588 nm	Yellow	Surface Mount	590 nm	140 °	2.1 V	20 mA	SC-59 SOT-23-3 TO-236-3	Standard
Kingbright AM23CGCK-F	Flat Top Rectangle	2.1 mm	1.3 mm	SOT-23-3	1.4 mm	3 mm	1.2 mm	50 mcd	Clear	Green	570 nm	Colorless	Surface Mount	574 nm	170 °	2.1 V	20 mA	SC-59 SOT-23-3 TO-236-3	Independent
Kingbright AM23SGC-F	Flat Top Rectangle	3 mm	1.3 mm	SOT-23-3	1.3 mm	3 mm	1.2 mm	10 mcd	Clear	Green	568 nm	Colorless	Surface Mount	565 nm	140 °	2.2 V	20 mA	SC-59 SOT-23-3 TO-236-3	Standard

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

AM23SYCK-F | Datasheet
