AM23CGCK-F

Active

Kingbright

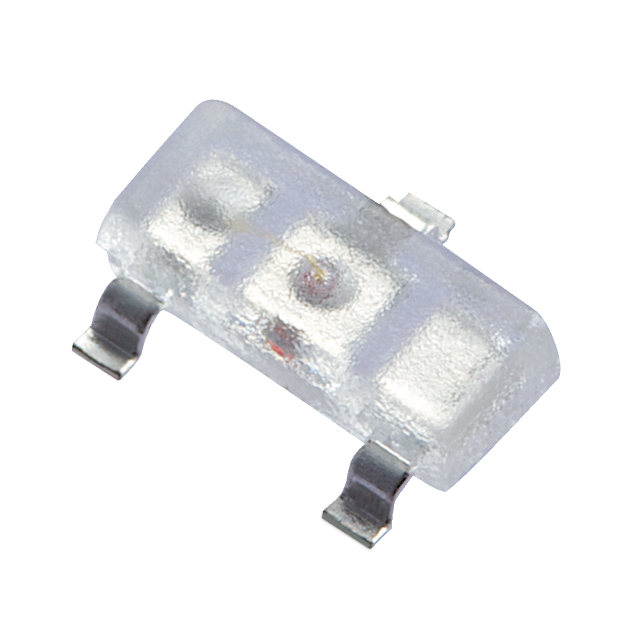

LED GREEN CLEAR SOT23-3 SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AM23CGCK-F

Active

Kingbright

LED GREEN CLEAR SOT23-3 SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AM23CGCK-F

Color	Green
Configuration	Independent
Current - Test	20 mA
Height (Max) [Max]	1.2 mm
Lens Color	Colorless
Lens Size [x]	2.1 mm
Lens Size [y]	1.3 mm
Lens Style	Rectangle with Flat Top
Lens Transparency	Clear
Millicandela Rating	50 mcd
Mounting Type	Surface Mount
Package / Case	SOT-23-3, TO-236-3, SC-59
Size / Dimension [x]	3 mm
Size / Dimension [y]	1.4 mm
Supplier Device Package	SOT-23-3
Viewing Angle	170 °
Voltage - Forward (Vf) (Typ)	2.1 V
Wavelength - Dominant	570 nm

AM23 Series

Part	Lens Transparency	Configuration	Lens Size [y]	Lens Size [x]	Viewing Angle	Current - Test	Voltage - Forward (Vf) (Typ)	Wavelength - Dominant	Package / Case	Lens Color	Wavelength - Peak	Millicandela Rating	Color	Height (Max) [Max]	Mounting Type	Supplier Device Package	Lens Style	Size / Dimension [x]	Size / Dimension [y]	Millicandela Rating [custom]	Millicandela Rating [custom]
Kingbright AM23SYCK-F	Clear	Independent	1.3 mm	2.1 mm	170 °	20 mA	2 V	590 nm	SC-59 SOT-23-3 TO-236-3	Colorless	590 nm	120 mcd	Yellow	1.2 mm	Surface Mount	SOT-23-3	Rectangle with Flat Top	3 mm	1.4 mm
Kingbright AM23SYC-F	Clear	Standard	1.3 mm	3 mm	140 °	20 mA	2 V	590 nm	SC-59 SOT-23-3 TO-236-3	Colorless	590 nm	130 mcd	Yellow	1.2 mm	Surface Mount	SOT-23-3	Rectangle with Flat Top	3 mm	1.3 mm
Kingbright AM23ESGC	Clear	Common Cathode	1.3 mm	3 mm	140 °	20 mA 20 mA	2 V 2.2 V	568 nm 617 nm	SC-59 SOT-23-3 TO-236-3	Colorless	565 nm 627 nm		Green Red	1.2 mm	Surface Mount	SOT-23-3	Rectangle with Flat Top	3 mm	1.3 mm	5 mcd	10 mcd
Kingbright AM23ESGW	Diffused	Common Cathode	1.3 mm	3 mm	140 °	20 mA 20 mA	2 V 2.2 V	568 nm 617 nm	3-SMD SOT-23-3 Variant	White	565 nm 627 nm		Green Red	1.2 mm	Surface Mount	SOT-23-3	Rectangle with Flat Top	3 mm	1.3 mm	5 mcd	9 mcd
Kingbright AM23ID-F	Diffused	Standard	1.3 mm	3 mm	140 °	20 mA	2 V	617 nm	SC-59 SOT-23-3 TO-236-3	Red	627 nm	7 mcd	Red	1.2 mm	Surface Mount	SOT-23-3	Rectangle with Flat Top	3 mm	1.3 mm
Kingbright AM23SGD-F	Diffused	Standard	1.3 mm	3 mm	140 °	20 mA	2.2 V	568 nm	SC-59 SOT-23-3 TO-236-3	Green	565 nm	8 mcd	Green	1.2 mm	Surface Mount	SOT-23-3	Rectangle with Flat Top	3 mm	1.3 mm
Kingbright AM23SGD3-F	Diffused	Standard	1.3 mm	3 mm	140 °	20 mA	2.2 V	568 nm	SC-59 SOT-23-3 TO-236-3	Green	565 nm	8 mcd	Green	1.2 mm	Surface Mount	SOT-23	Rectangle with Flat Top	3 mm	1.3 mm
Kingbright AM23YD-F	Diffused	Standard	1.3 mm	3 mm	140 °	20 mA	2.1 V	588 nm	SC-59 SOT-23-3 TO-236-3	Yellow	590 nm	8 mcd	Yellow	1.2 mm	Surface Mount	SOT-23-3	Rectangle with Flat Top	3 mm	1.3 mm
Kingbright AM23CGCK-F	Clear	Independent	1.3 mm	2.1 mm	170 °	20 mA	2.1 V	570 nm	SC-59 SOT-23-3 TO-236-3	Colorless		50 mcd	Green	1.2 mm	Surface Mount	SOT-23-3	Rectangle with Flat Top	3 mm	1.4 mm
Kingbright AM23SGC-F	Clear	Standard	1.3 mm	3 mm	140 °	20 mA	2.2 V	568 nm	SC-59 SOT-23-3 TO-236-3	Colorless	565 nm	10 mcd	Green	1.2 mm	Surface Mount	SOT-23-3	Rectangle with Flat Top	3 mm	1.3 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.33
		10	$ 0.21
		100	$ 0.14
		500	$ 0.10
		1000	$ 0.08
	Digi-Reel®	1	$ 0.33
		10	$ 0.21
		100	$ 0.14
		500	$ 0.10
		1000	$ 0.08
	Tape & Reel (TR)	2000	$ 0.07

Description

General part information

AM23 Series

Green 570nm LED Indication - Discrete 2.1V TO-236-3, SC-59, SOT-23-3
