164A16769X
ActiveAmphenol CONEC
CONN D-SUB RCPT 9POS R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
164A16769X
ActiveAmphenol CONEC
CONN D-SUB RCPT 9POS R/A SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 164A16769X |
|---|---|
| Backset Spacing [x] | 9.31 mm |
| Backset Spacing [x] | 0.367 in |
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 8 çin |
| Contact Finish Thickness | 0.203 çm |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 7.5 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Board Lock, Mounting Brackets |
| Flange Feature | Housing/Shell (4-40) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Board Edge |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Termination | Solder |
| Voltage Rating | 125 VDC |
164A167 Series
| Part | Material Flammability Rating | Number of Positions | Backset Spacing [x] | Backset Spacing [x] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Color | Current Rating (Amps) | Contact Type | Dielectric Material | Features | Mounting Type | Connector Style | Contact Finish Thickness | Contact Finish Thickness | Voltage Rating | Number of Rows | Connector Type | Flange Feature | Termination | Contact Material | Shell Size, Connector Layout | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Flange Feature [custom] | Flange Feature [custom] | Shell Size, Connector Layout | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol CONEC | UL94 V-0 | 37 | 9.31 mm | 0.367 in | -55 °C | 125 °C | Gold | Black | 7.5 A | Signal | Polybutylene Terephthalate (PBT) Glass Filled | Board Lock Mounting Brackets | Board Edge Right Angle Through Hole | D-Sub | 8 çin | 0.203 çm | 125 VDC | 2 | Receptacle Female Sockets | Housing/Shell (4-40) | Solder | Copper Alloy | 4 (DC C) | ||||||
Amphenol CONEC | UL94 V-0 | 9 | -55 °C | 125 °C | Gold | Black | 7.5 A | Signal | Polybutylene Terephthalate (PBT) Glass Filled | Through Hole | D-Sub | 8 çin | 0.203 çm | 125 VDC | 2 | Receptacle Female Sockets | Solder | Copper Alloy | DE E | 1 | M3 | M3 | |||||||
Amphenol CONEC | UL94 V-0 | 37 | -55 °C | 125 °C | Gold | Black | 7.5 A | Signal | Polybutylene Terephthalate (PBT) Glass Filled | Through Hole | D-Sub | 8 çin | 0.203 çm | 125 VDC | 2 | Receptacle Female Sockets | Solder | Copper Alloy | 4 (DC C) | M3 | M3 | ||||||||
Amphenol CONEC | UL94 V-0 | 50 | -55 °C | 125 °C | Gold | Black | 7.5 A | Signal | Polybutylene Terephthalate (PBT) Glass Filled | Through Hole | D-Sub | 125 VDC | 3 | Receptacle Female Sockets | 4-40 | Solder | Copper Alloy | 5 | Flash | ||||||||||
Amphenol CONEC | UL94 V-0 | -55 °C | 125 °C | Gold | Black | 7.5 A | Signal | Polybutylene Terephthalate (PBT) Glass Filled | Through Hole | D-Sub | 8 çin | 0.203 çm | 125 VDC | 2 | Receptacle Female Sockets | Solder | Copper Alloy | B DB | 3 | M3 | M3 | ||||||||
Amphenol CONEC | UL94 V-0 | 9 | 9.31 mm | 0.367 in | -55 °C | 125 °C | Gold | Black | 7.5 A | Signal | Polybutylene Terephthalate (PBT) Glass Filled | Board Lock Mounting Brackets | Board Edge Right Angle Through Hole | D-Sub | 8 çin | 0.203 çm | 125 VDC | 2 | Receptacle Female Sockets | Housing/Shell (4-40) | Solder | Copper Alloy | DE E | 1 | |||||
Amphenol CONEC | UL94 V-0 | 15 | -55 °C | 125 °C | Gold | Black | 7.5 A | Signal | Polybutylene Terephthalate (PBT) Glass Filled | Through Hole | D-Sub | 8 çin | 0.203 çm | 125 VDC | 2 | Receptacle Female Sockets | Solder | Copper Alloy | M3 | M3 | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.38 | |
| 10 | $ 11.86 | |||
| 25 | $ 11.40 | |||
| 50 | $ 10.94 | |||
| 100 | $ 10.34 | |||
| 250 | $ 9.42 | |||
| 500 | $ 8.82 | |||
| 1000 | $ 8.09 | |||
Description
General part information
164A167 Series

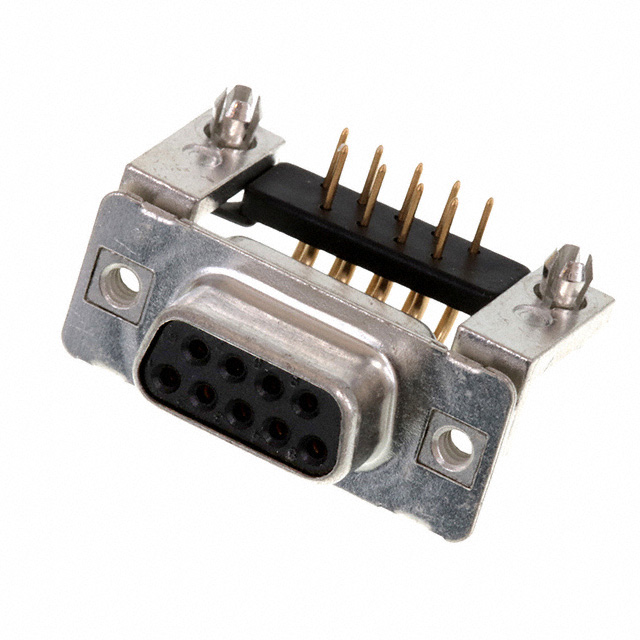

9 Position D-Sub Receptacle, Female Sockets Connector
