TPD6F003DQDR
Active6 CHANNEL 5.5-V, ±12KV ESD PROTECTION & EMI FILTER WITH 200-MHZ -3-DB
Deep-Dive with AI
Search across all available documentation for this part.
TPD6F003DQDR
Active6 CHANNEL 5.5-V, ±12KV ESD PROTECTION & EMI FILTER WITH 200-MHZ -3-DB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TPD6F003DQDR |
|---|---|
| Applications | Data Lines for Mobile Devices |
| Attenuation Value | 25 dB |
| Center / Cutoff Frequency | 200 MHz |
| ESD Protection | True |
| Filter Order | 2nd |
| Height [z] | 0.031 " |
| Height [z] | 0.79 mm |
| Mounting Type | Surface Mount |
| Number of Channels | 6 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

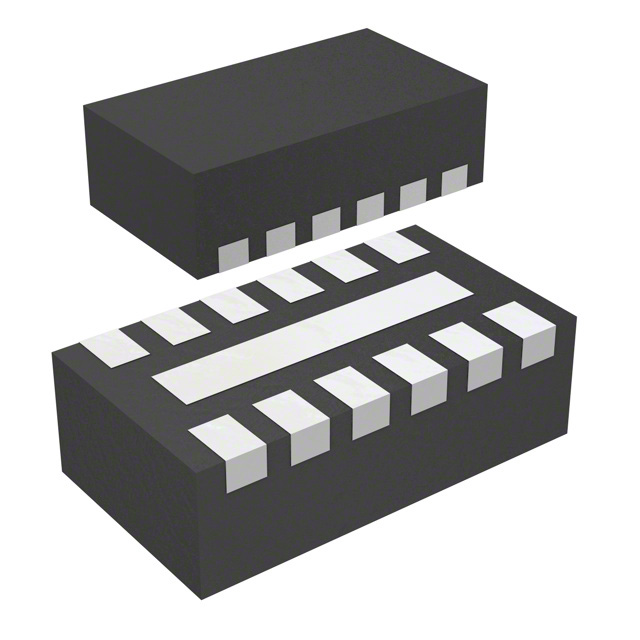

| Package / Case | 12-WFDFN Exposed Pad |
| Resistance - Channel (Ohms) | 100 Ohms |
| Size / Dimension [x] | 2.5 mm |
| Size / Dimension [x] | 0.098 in |
| Size / Dimension [y] | 1.35 mm |
| Size / Dimension [y] | 0.053 in |
| Technology | RC (Pi) |
| Type | Low Pass |
| Values | 8.5 pF, 100 Ohms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
TPD6F003 Series
6 channel 5.5-V, ±12kV ESD protection & EMI Filter with 200-MHz -3-dB
| Part | Center / Cutoff Frequency | Mounting Type | Package / Case | ESD Protection | Type | Resistance - Channel (Ohms) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Operating Temperature [Min] | Operating Temperature [Max] | Number of Channels | Technology | Attenuation Value | Applications | Values | Height [z] | Height [z] | Filter Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments TPD6F003DQDRThe TPDxF003 family is a series of highly integrated devices designed to provide Electromagnetic Interference (EMI) filtering in all systems subjected to electromagnetic interference. These filters also provide a Transient Voltage Suppressor (TVS) diode circuit for Electrostatic Discharge (ESD) protection which prevents damage to the application when subjected to ESD stress far exceeding IEC 61000-4-2 (Level 4).
The TPDxF003 family is specified for –40°C to 85°C operation. These filters are also packaged in space-saving 0.4-mm pitch DQD packages.
The TPDxF003 family is a series of highly integrated devices designed to provide Electromagnetic Interference (EMI) filtering in all systems subjected to electromagnetic interference. These filters also provide a Transient Voltage Suppressor (TVS) diode circuit for Electrostatic Discharge (ESD) protection which prevents damage to the application when subjected to ESD stress far exceeding IEC 61000-4-2 (Level 4).
The TPDxF003 family is specified for –40°C to 85°C operation. These filters are also packaged in space-saving 0.4-mm pitch DQD packages. | 200 MHz | Surface Mount | 12-WFDFN Exposed Pad | Low Pass | 100 Ohms | 1.35 mm | 2.5 mm | 0.053 in | 0.098 in | -40 °C | 85 °C | 6 | RC (Pi) | 25 dB | Data Lines for Mobile Devices | 8.5 pF, 100 Ohms | 0.031 " | 0.79 mm | 2nd |
Description
General part information
TPD6F003 Series
The TPDxF003 family is a series of highly integrated devices designed to provide Electromagnetic Interference (EMI) filtering in all systems subjected to electromagnetic interference. These filters also provide a Transient Voltage Suppressor (TVS) diode circuit for Electrostatic Discharge (ESD) protection which prevents damage to the application when subjected to ESD stress far exceeding IEC 61000-4-2 (Level 4).
The TPDxF003 family is specified for –40°C to 85°C operation. These filters are also packaged in space-saving 0.4-mm pitch DQD packages.
The TPDxF003 family is a series of highly integrated devices designed to provide Electromagnetic Interference (EMI) filtering in all systems subjected to electromagnetic interference. These filters also provide a Transient Voltage Suppressor (TVS) diode circuit for Electrostatic Discharge (ESD) protection which prevents damage to the application when subjected to ESD stress far exceeding IEC 61000-4-2 (Level 4).
