KN01L50PL

Active

JAE Electronics

CONN PIN INSULATOR BLOCK 50 POSI

Search across all available documentation for this part.

Active

JAE Electronics

CONN PIN INSULATOR BLOCK 50 POSI

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	Voltage Rating	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Size	Gender	Housing Material	Connector Type	Color	Contact Material	Contact Finish	Current Rating (Amps)
JAE Electronics KN01L50PL	50	24 VDC	Crimp	-20 C	105 ░C	L	Male	Resin	Insert without Contacts
JAE Electronics KN01L42SM	42	24 VDC	Crimp	-20 C	105 ░C	L	Female	Resin	Insert without Contacts	Black	Copper Alloy	Gold
JAE Electronics KN01L12PG-B	12	250 VDC	Crimp	-20 C	105 ░C	L	Male	Resin	Insert without Contacts	Black	Copper Alloy	Gold	23 A
JAE Electronics KN01L42PM	42	24 VDC	Crimp	-20 C	105 ░C	L	Male	Resin	Insert without Contacts	Black	Copper Alloy	Gold
JAE Electronics KN01L12SGW	12	250 VDC	Crimp	-20 C	105 ░C	L	Female	Resin	Insert without Contacts				23 A
JAE Electronics KN01L12SG-B	12	250 VDC	Crimp	-20 C	105 ░C	L	Female	Resin	Insert without Contacts	Gray	Copper Alloy	Gold	23 A
JAE Electronics KN01L04SF	4		Crimp	-20 C	105 ░C	L	Female	Resin	Insert without Contacts	Gray	Copper Alloy	Gold
JAE Electronics KN01L04PF	4		Crimp	-20 C	105 ░C	L	Male	Resin	Insert without Contacts		Copper Alloy	Gold
JAE Electronics KN01L18SKS	18	24 VDC	Crimp	-20 C	105 ░C	L	Female	Resin	Insert without Contacts				3 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

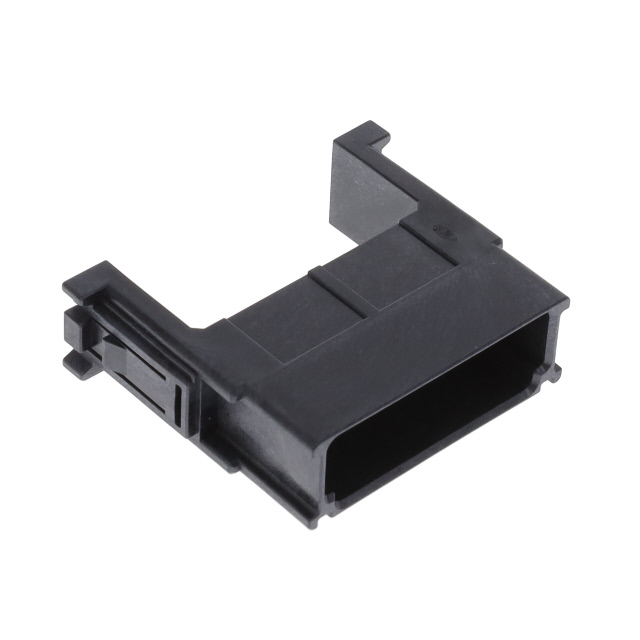

Male Insert without Contacts 50 Position Crimp

Technical documentation and resources
