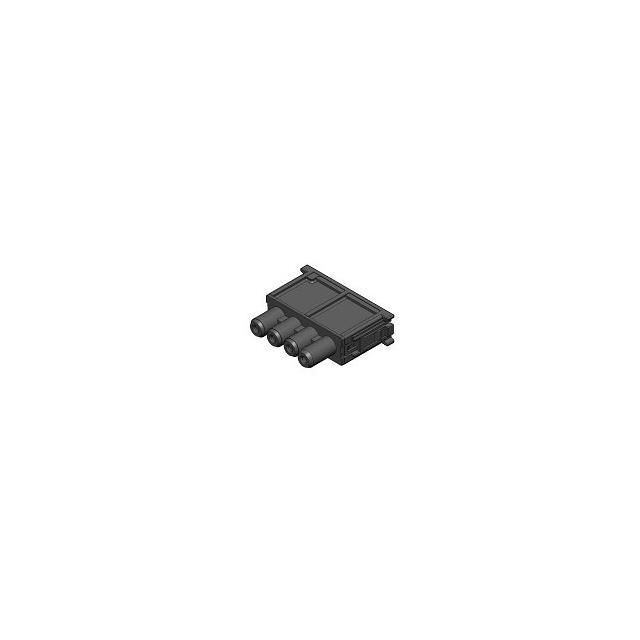

KN01L04SF

Active

JAE Electronics

CONN SOCKET INSULATOR BLOCK, 4 P

Search across all available documentation for this part.

Active

JAE Electronics

CONN SOCKET INSULATOR BLOCK, 4 P

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	Voltage Rating	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Size	Gender	Housing Material	Connector Type	Color	Contact Material	Contact Finish	Current Rating (Amps)
JAE Electronics KN01L50PL	50	24 VDC	Crimp	-20 C	105 ░C	L	Male	Resin	Insert without Contacts
JAE Electronics KN01L42SM	42	24 VDC	Crimp	-20 C	105 ░C	L	Female	Resin	Insert without Contacts	Black	Copper Alloy	Gold
JAE Electronics KN01L12PG-B	12	250 VDC	Crimp	-20 C	105 ░C	L	Male	Resin	Insert without Contacts	Black	Copper Alloy	Gold	23 A
JAE Electronics KN01L42PM	42	24 VDC	Crimp	-20 C	105 ░C	L	Male	Resin	Insert without Contacts	Black	Copper Alloy	Gold
JAE Electronics KN01L12SGW	12	250 VDC	Crimp	-20 C	105 ░C	L	Female	Resin	Insert without Contacts				23 A
JAE Electronics KN01L12SG-B	12	250 VDC	Crimp	-20 C	105 ░C	L	Female	Resin	Insert without Contacts	Gray	Copper Alloy	Gold	23 A
JAE Electronics KN01L04SF	4		Crimp	-20 C	105 ░C	L	Female	Resin	Insert without Contacts	Gray	Copper Alloy	Gold
JAE Electronics KN01L04PF	4		Crimp	-20 C	105 ░C	L	Male	Resin	Insert without Contacts		Copper Alloy	Gold
JAE Electronics KN01L18SKS	18	24 VDC	Crimp	-20 C	105 ░C	L	Female	Resin	Insert without Contacts				3 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Insert without Contacts Gray 4 Position Crimp

Technical documentation and resources

No documents available
