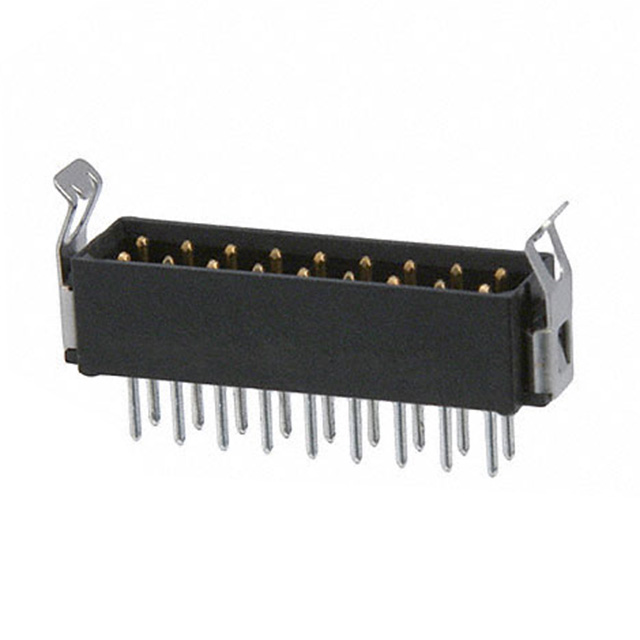

M80-8671822
ActiveHarwin Inc.
HEADER CONNECTOR,PCB MNT,RECEPT,18 CONTACTS,PIN,0.079 PITCH,PC TAIL TERMINAL,LATCH ROHS COMPLIANT: NO
Deep-Dive with AI
Search across all available documentation for this part.
M80-8671822
ActiveHarwin Inc.
HEADER CONNECTOR,PCB MNT,RECEPT,18 CONTACTS,PIN,0.079 PITCH,PC TAIL TERMINAL,LATCH ROHS COMPLIANT: NO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M80-8671822 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin-Lead |
| Contact Finish Thickness - Mating | 29.5 Áin |
| Contact Finish Thickness - Mating | 0.75 Ám |
| Contact Finish Thickness - Post | 3 µm |
| Contact Finish Thickness - Post | 118.1 µin |
| Contact Length - Post | 0.118 in |
| Contact Length - Post | 3 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 2.2 A |
| Fastening Type | Latch Lock |
| Insulation Color | Black |
| Insulation Height | 5.56 mm |
| Insulation Height [z] | 0.219 in |
| Insulation Material | Polyester, Glass Filled |
| Mated Stacking Heights | 13.51 mm, 7.85 mm, 10.2 mm, 7.23 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 18 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Row Spacing - Mating | 0.079 in |
| Row Spacing - Mating | 2 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 800 V |
M80-867 Series
| Part | Insulation Color | Shrouding | Contact Material | Fastening Type | Voltage Rating | Current Rating (Amps) | Number of Rows | Connector Type | Material Flammability Rating | Insulation Material | Row Spacing - Mating | Row Spacing - Mating | Number of Positions | Pitch - Mating [x] | Pitch - Mating [x] | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Termination | Contact Finish - Post | Contact Length - Post | Contact Length - Post | Contact Finish - Mating | Style | Contact Type | Mated Stacking Heights | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions Loaded | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Mounting Type | Contact Shape | Insulation Height [z] | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | Black | Shrouded - 4 Wall | Phosphor Bronze | Latch Lock | 800 V | 2.2 A | 2 | Header | UL94 V-0 | Polyester Glass Filled | 0.079 in | 2 mm | 8 | 0.079 in | 2 mm | 3 µm | 118.1 µin | Solder | Tin-Lead | 0.118 in | 3 mm | Gold | Board to Board Cable | Male Pin | 7.23 mm 7.85 mm 10.2 mm 13.51 mm | -55 °C | 125 °C | All | 29.5 Áin | 0.75 Ám | Through Hole | Circular | 0.219 in | 5.56 mm |
Harwin Inc. | Black | Shrouded - 4 Wall | Phosphor Bronze | Latch Lock | 800 V | 2.2 A | 2 | Header | UL94 V-0 | Polyester Glass Filled | 0.079 in | 2 mm | 6 | 0.079 in | 2 mm | 3 µm | 118.1 µin | Solder | Tin-Lead | 0.118 in | 3 mm | Gold | Board to Board Cable | Male Pin | 7.23 mm 7.85 mm 10.2 mm 13.51 mm | -55 °C | 125 °C | All | 29.5 Áin | 0.75 Ám | Through Hole | Circular | 0.219 in | 5.56 mm |
Harwin Inc. | Black | Shrouded - 4 Wall | Phosphor Bronze | Latch Lock | 800 V | 2.2 A | 2 | Header | UL94 V-0 | Polyester Glass Filled | 0.079 in | 2 mm | 34 | 0.079 in | 2 mm | Solder | 0.118 in | 3 mm | Gold | Board to Board Cable | Male Pin | 7.23 mm 7.85 mm 10.2 mm 13.51 mm | -55 °C | 125 °C | All | 29.5 Áin | 0.75 Ám | Through Hole | Circular | 0.219 in | 5.56 mm | |||
Harwin Inc. | Black | Shrouded - 4 Wall | Phosphor Bronze | Latch Lock | 800 V | 2.2 A | 2 | Header | UL94 V-0 | Polyester Glass Filled | 0.079 in | 2 mm | 14 | 0.079 in | 2 mm | 3 µm | 118.1 µin | Solder | Tin-Lead | 0.118 in | 3 mm | Gold | Board to Board Cable | Male Pin | 7.23 mm 7.85 mm 10.2 mm 13.51 mm | -55 °C | 125 °C | All | 29.5 Áin | 0.75 Ám | Through Hole | Circular | 0.219 in | 5.56 mm |
Harwin Inc. | Black | Shrouded - 4 Wall | Phosphor Bronze | Latch Lock | 800 V | 2.2 A | 2 | Header | UL94 V-0 | Polyester Glass Filled | 0.079 in | 2 mm | 20 | 0.079 in | 2 mm | 3 µm | 118.1 µin | Solder | Tin-Lead | 0.118 in | 3 mm | Gold | Board to Board Cable | Male Pin | 7.23 mm 7.85 mm 10.2 mm 13.51 mm | -55 °C | 125 °C | All | 29.5 Áin | 0.75 Ám | Through Hole | Circular | 0.219 in | 5.56 mm |
Harwin Inc. | Black | Shrouded - 4 Wall | Phosphor Bronze | Latch Lock | 800 V | 2.2 A | 2 | Header | UL94 V-0 | Polyester Glass Filled | 0.079 in | 2 mm | 4 | 0.079 in | 2 mm | 3 µm | 118.1 µin | Solder | Tin-Lead | 0.118 in | 3 mm | Gold | Board to Board Cable | Male Pin | 7.23 mm 7.85 mm 10.2 mm 13.51 mm | -55 °C | 125 °C | All | 29.5 Áin | 0.75 Ám | Through Hole | Circular | 0.219 in | 5.56 mm |
Harwin Inc. | Black | Shrouded - 4 Wall | Phosphor Bronze | Latch Lock | 800 V | 2.2 A | 2 | Header | UL94 V-0 | Polyester Glass Filled | 0.079 in | 2 mm | 26 | 0.079 in | 2 mm | 3 µm | 118.1 µin | Solder | Tin-Lead | 0.118 in | 3 mm | Gold | Board to Board Cable | Male Pin | 7.23 mm 7.85 mm 10.2 mm 13.51 mm | -55 °C | 125 °C | All | 29.5 Áin | 0.75 Ám | Through Hole | Circular | 0.219 in | 5.56 mm |
Harwin Inc. | Black | Shrouded - 4 Wall | Phosphor Bronze | Latch Lock | 800 V | 2.2 A | 2 | Header | UL94 V-0 | Polyester Glass Filled | 0.079 in | 2 mm | 18 | 0.079 in | 2 mm | 3 µm | 118.1 µin | Solder | Tin-Lead | 0.118 in | 3 mm | Gold | Board to Board Cable | Male Pin | 7.23 mm 7.85 mm 10.2 mm 13.51 mm | -55 °C | 125 °C | All | 29.5 Áin | 0.75 Ám | Through Hole | Circular | 0.219 in | 5.56 mm |
Harwin Inc. | Black | Shrouded - 4 Wall | Phosphor Bronze | Latch Lock | 800 V | 2.2 A | 2 | Header | UL94 V-0 | Polyester Glass Filled | 0.079 in | 2 mm | 12 | 0.079 in | 2 mm | 3 µm | 118.1 µin | Solder | Tin-Lead | 0.118 in | 3 mm | Gold | Board to Board Cable | Male Pin | 7.23 mm 7.85 mm 10.2 mm 13.51 mm | -55 °C | 125 °C | All | 29.5 Áin | 0.75 Ám | Through Hole | Circular | 0.219 in | 5.56 mm |
Harwin Inc. | Black | Shrouded - 4 Wall | Phosphor Bronze | Latch Lock | 800 V | 2.2 A | 2 | Header | UL94 V-0 | Polyester Glass Filled | 0.079 in | 2 mm | 10 | 0.079 in | 2 mm | 3 µm | 118.1 µin | Solder | Tin-Lead | 0.118 in | 3 mm | Gold | Board to Board Cable | Male Pin | 7.23 mm 7.85 mm 10.2 mm 13.51 mm | -55 °C | 125 °C | All | 29.5 Áin | 0.75 Ám | Through Hole | Circular | 0.219 in | 5.56 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M80-867 Series
Connector Header Through Hole 18 position 0.079" (2.00mm)
