M80-8672622

Active

Harwin Inc.

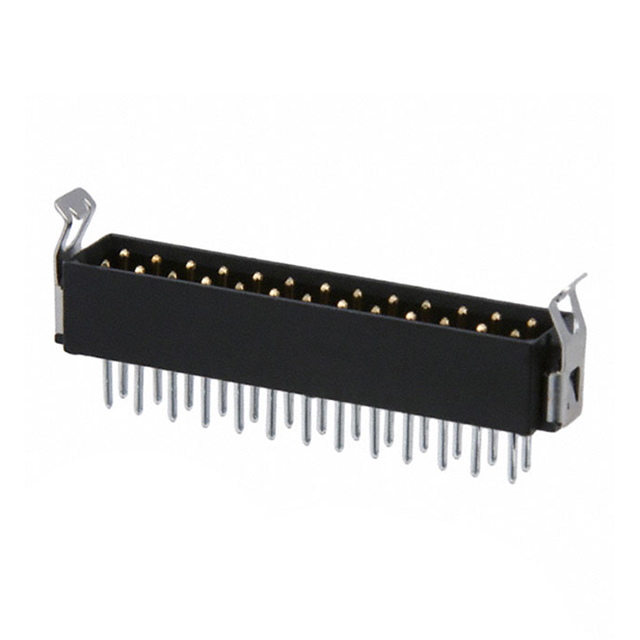

CONN HEADER VERT 26POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM80, M83 Series Spec Sheet M80-001 +2

M80-8672622

Active

Harwin Inc.

CONN HEADER VERT 26POS 2MM

Deep-Dive with AI

DocumentsM80, M83 Series Spec Sheet M80-001 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-8672622

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Finish Thickness - Post	3 µm
Contact Finish Thickness - Post	118.1 µin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2.2 A
Fastening Type	Latch Lock
Insulation Color	Black
Insulation Height	5.56 mm
Insulation Height [z]	0.219 in
Insulation Material	Polyester, Glass Filled
Mated Stacking Heights	13.51 mm, 7.85 mm, 10.2 mm, 7.23 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	800 V

M80-867 Series

Part	Insulation Color	Shrouding	Contact Material	Fastening Type	Voltage Rating	Current Rating (Amps)	Number of Rows	Connector Type	Material Flammability Rating	Insulation Material	Row Spacing - Mating	Row Spacing - Mating	Number of Positions	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Style	Contact Type	Mated Stacking Heights	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Contact Shape	Insulation Height [z]	Insulation Height
Harwin Inc. M80-8670822	Black	Shrouded - 4 Wall	Phosphor Bronze	Latch Lock	800 V	2.2 A	2	Header	UL94 V-0	Polyester Glass Filled	0.079 in	2 mm	8	0.079 in	2 mm	3 µm	118.1 µin	Solder	Tin-Lead	0.118 in	3 mm	Gold	Board to Board Cable	Male Pin	7.23 mm 7.85 mm 10.2 mm 13.51 mm	-55 °C	125 °C	All	29.5 Áin	0.75 Ám	Through Hole	Circular	0.219 in	5.56 mm
Harwin Inc. M80-8670622	Black	Shrouded - 4 Wall	Phosphor Bronze	Latch Lock	800 V	2.2 A	2	Header	UL94 V-0	Polyester Glass Filled	0.079 in	2 mm	6	0.079 in	2 mm	3 µm	118.1 µin	Solder	Tin-Lead	0.118 in	3 mm	Gold	Board to Board Cable	Male Pin	7.23 mm 7.85 mm 10.2 mm 13.51 mm	-55 °C	125 °C	All	29.5 Áin	0.75 Ám	Through Hole	Circular	0.219 in	5.56 mm
Harwin Inc. M80-8673405	Black	Shrouded - 4 Wall	Phosphor Bronze	Latch Lock	800 V	2.2 A	2	Header	UL94 V-0	Polyester Glass Filled	0.079 in	2 mm	34	0.079 in	2 mm			Solder		0.118 in	3 mm	Gold	Board to Board Cable	Male Pin	7.23 mm 7.85 mm 10.2 mm 13.51 mm	-55 °C	125 °C	All	29.5 Áin	0.75 Ám	Through Hole	Circular	0.219 in	5.56 mm
Harwin Inc. M80-8671422	Black	Shrouded - 4 Wall	Phosphor Bronze	Latch Lock	800 V	2.2 A	2	Header	UL94 V-0	Polyester Glass Filled	0.079 in	2 mm	14	0.079 in	2 mm	3 µm	118.1 µin	Solder	Tin-Lead	0.118 in	3 mm	Gold	Board to Board Cable	Male Pin	7.23 mm 7.85 mm 10.2 mm 13.51 mm	-55 °C	125 °C	All	29.5 Áin	0.75 Ám	Through Hole	Circular	0.219 in	5.56 mm
Harwin Inc. M80-8672022	Black	Shrouded - 4 Wall	Phosphor Bronze	Latch Lock	800 V	2.2 A	2	Header	UL94 V-0	Polyester Glass Filled	0.079 in	2 mm	20	0.079 in	2 mm	3 µm	118.1 µin	Solder	Tin-Lead	0.118 in	3 mm	Gold	Board to Board Cable	Male Pin	7.23 mm 7.85 mm 10.2 mm 13.51 mm	-55 °C	125 °C	All	29.5 Áin	0.75 Ám	Through Hole	Circular	0.219 in	5.56 mm
Harwin Inc. M80-8670422	Black	Shrouded - 4 Wall	Phosphor Bronze	Latch Lock	800 V	2.2 A	2	Header	UL94 V-0	Polyester Glass Filled	0.079 in	2 mm	4	0.079 in	2 mm	3 µm	118.1 µin	Solder	Tin-Lead	0.118 in	3 mm	Gold	Board to Board Cable	Male Pin	7.23 mm 7.85 mm 10.2 mm 13.51 mm	-55 °C	125 °C	All	29.5 Áin	0.75 Ám	Through Hole	Circular	0.219 in	5.56 mm
Harwin Inc. M80-8672622	Black	Shrouded - 4 Wall	Phosphor Bronze	Latch Lock	800 V	2.2 A	2	Header	UL94 V-0	Polyester Glass Filled	0.079 in	2 mm	26	0.079 in	2 mm	3 µm	118.1 µin	Solder	Tin-Lead	0.118 in	3 mm	Gold	Board to Board Cable	Male Pin	7.23 mm 7.85 mm 10.2 mm 13.51 mm	-55 °C	125 °C	All	29.5 Áin	0.75 Ám	Through Hole	Circular	0.219 in	5.56 mm
Harwin Inc. M80-8671822	Black	Shrouded - 4 Wall	Phosphor Bronze	Latch Lock	800 V	2.2 A	2	Header	UL94 V-0	Polyester Glass Filled	0.079 in	2 mm	18	0.079 in	2 mm	3 µm	118.1 µin	Solder	Tin-Lead	0.118 in	3 mm	Gold	Board to Board Cable	Male Pin	7.23 mm 7.85 mm 10.2 mm 13.51 mm	-55 °C	125 °C	All	29.5 Áin	0.75 Ám	Through Hole	Circular	0.219 in	5.56 mm
Harwin Inc. M80-8671222	Black	Shrouded - 4 Wall	Phosphor Bronze	Latch Lock	800 V	2.2 A	2	Header	UL94 V-0	Polyester Glass Filled	0.079 in	2 mm	12	0.079 in	2 mm	3 µm	118.1 µin	Solder	Tin-Lead	0.118 in	3 mm	Gold	Board to Board Cable	Male Pin	7.23 mm 7.85 mm 10.2 mm 13.51 mm	-55 °C	125 °C	All	29.5 Áin	0.75 Ám	Through Hole	Circular	0.219 in	5.56 mm
Harwin Inc. M80-8671022	Black	Shrouded - 4 Wall	Phosphor Bronze	Latch Lock	800 V	2.2 A	2	Header	UL94 V-0	Polyester Glass Filled	0.079 in	2 mm	10	0.079 in	2 mm	3 µm	118.1 µin	Solder	Tin-Lead	0.118 in	3 mm	Gold	Board to Board Cable	Male Pin	7.23 mm 7.85 mm 10.2 mm 13.51 mm	-55 °C	125 °C	All	29.5 Áin	0.75 Ám	Through Hole	Circular	0.219 in	5.56 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 6.96
		16	$ 6.29
		104	$ 5.51
		504	$ 4.64
		1000	$ 4.06

Description

General part information

M80-867 Series

Connector Header Through Hole 26 position 0.079" (2.00mm)

Documents

Technical documentation and resources

M80, M83 Series Spec Sheet

Datasheet

M80-8672622

Deep-Dive with AI

M80-8672622

Deep-Dive with AI

Technical Specifications

M80-867 Series

Pricing

Description

M80-867 Series

Documents

M80, M83 Series Spec Sheet

M80-001

Datasheet

M80-0110001

M80-867 Series
